Airbag Control Module J234

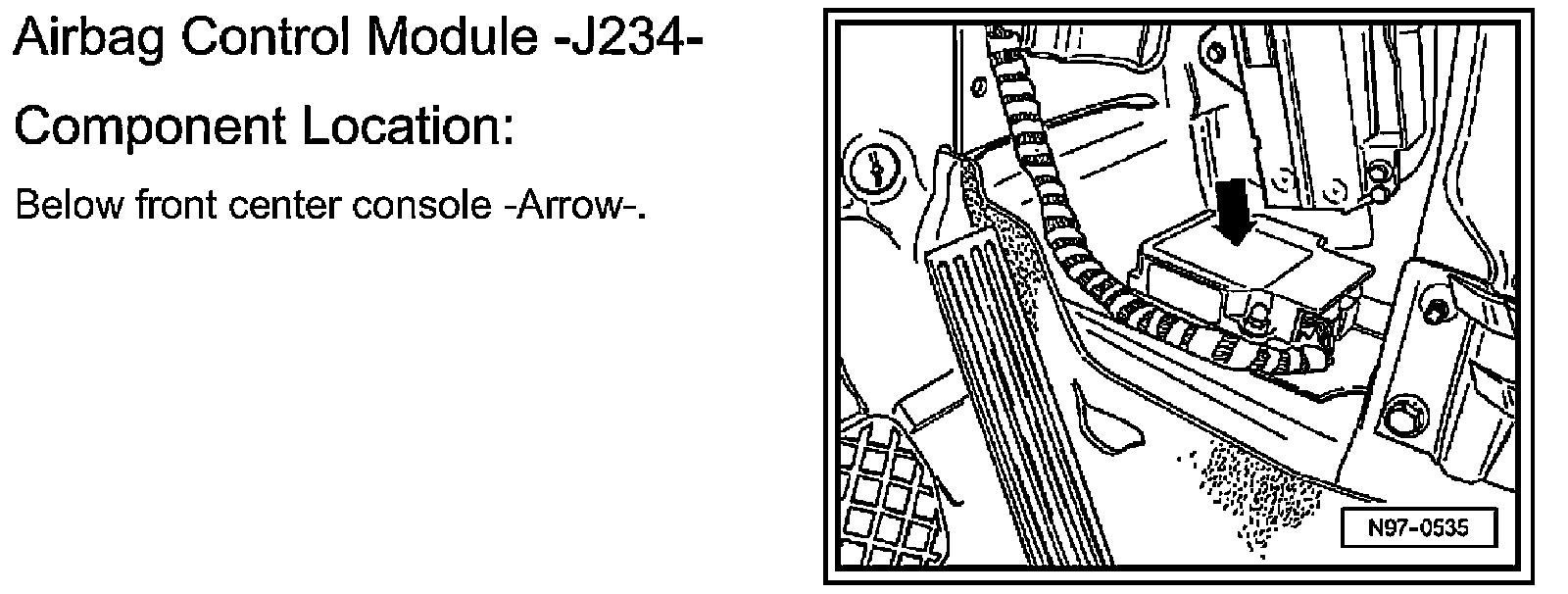

AirBag Control Module J234:

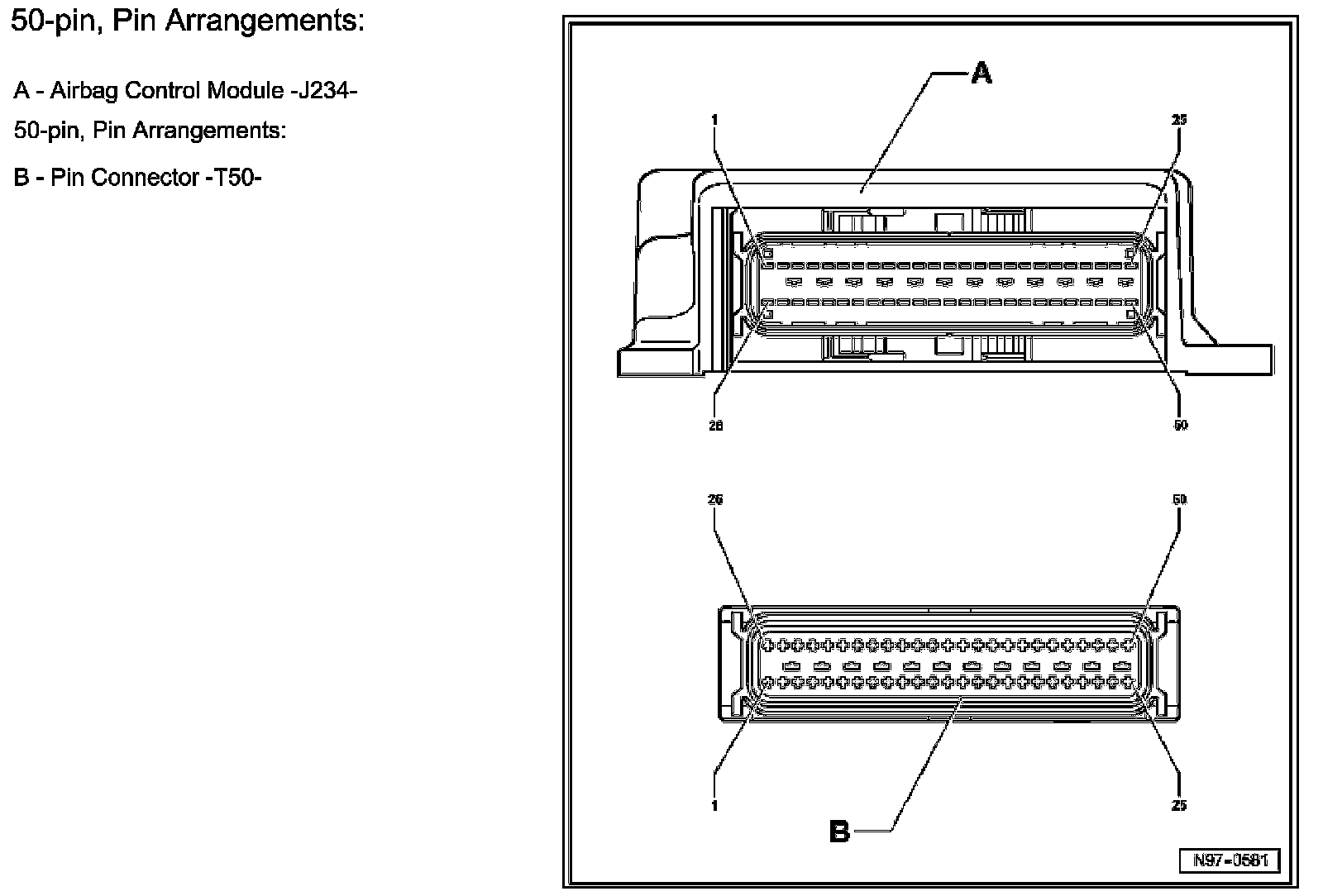

50-pin, Pin Arrangements:

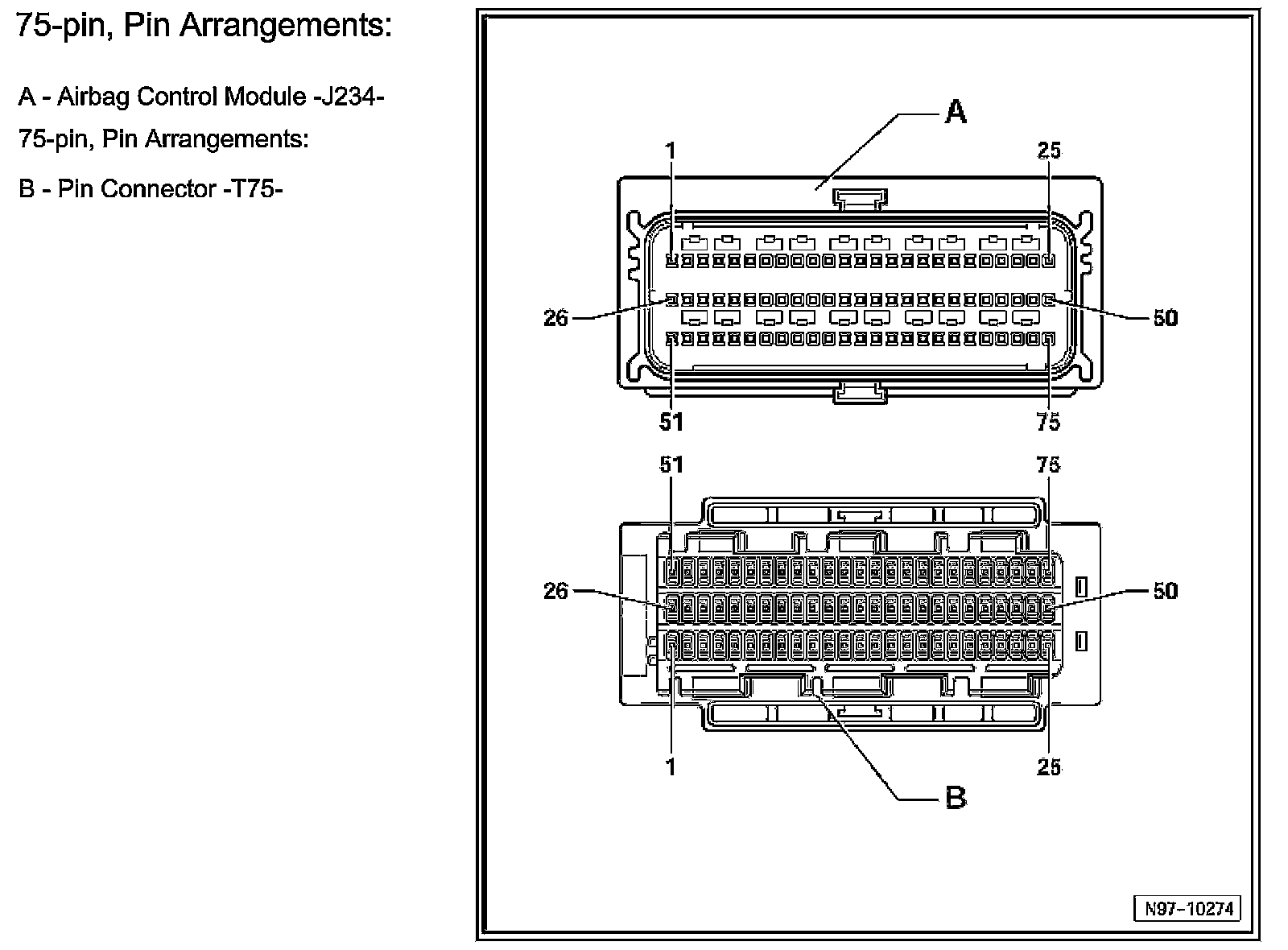

75-pin, Pin Arrangements:
