Cylinder Block and Components Overview

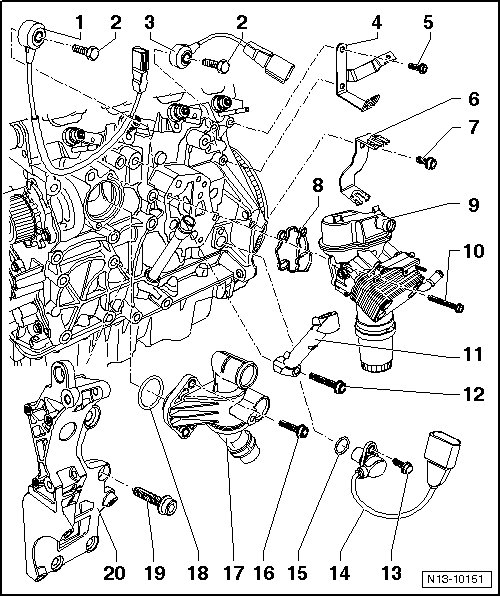

Cylinder Block and Components Overview





1 Knock Sensor (KS) 1 (G61)

• To remove, the coolant thermostat housing must be removed. Refer to => [ Coolant Thermostat Housing with Coolant Thermostat ] Coolant Thermostat Housing with Coolant Thermostat.

• Contacts are gold plated.

2 Bolt, 20 Nm

• Tightening specification affect function of the KS.

3 Knock Sensor (KS) 2 (G66)

• To remove, the oil filter bracket must be removed. Refer to => [ Oil Filter Bracket ] Oil Filter Bracket.

• Contacts are gold plated.

4 Wire Bracket

5 Bolt

6 Wire Bracket

7 Bolt

8 Gasket

• Always replace

9 Oil Filter Bracket with Attachments

• Disassembling and assembling, refer to => [ Oil Filter Bracket Assembly Overview ] Oil Filter Bracket Assembly Overview.

10 Bolt, 15 Nm + 90° (1/4) additional turn

• Always replace.

11 Intake Manifold Support

12 Bolt, 25 Nm

13 Bolt, 10 Nm

14 Engine Speed (RPM) Sensor (G28)

15 Seal

• Always replace.

16 Bolt, 15 Nm

17 Coolant Thermostat Housing with Thermostat

• Removing and installing, refer to => [ Coolant Thermostat Housing with Coolant Thermostat ] Coolant Thermostat Housing with Coolant Thermostat.

18 O-ring

• Always replace.

19 Bolt, 40 Nm

• Tightening sequence, refer to => [ Accessory Bracket Tightening Sequence ] Ribbed Belt and Accessory Drive Overview.

20 Accessory Bracket
