Home >> Volkswagen >> 2007 >> Passat Wagon (3C5) V6-3.6L (BLV) >> Repair and Diagnosis >> Locations >> Component Locations >> Control Modules >> Overview of Control Modules

Overview of Control Modules

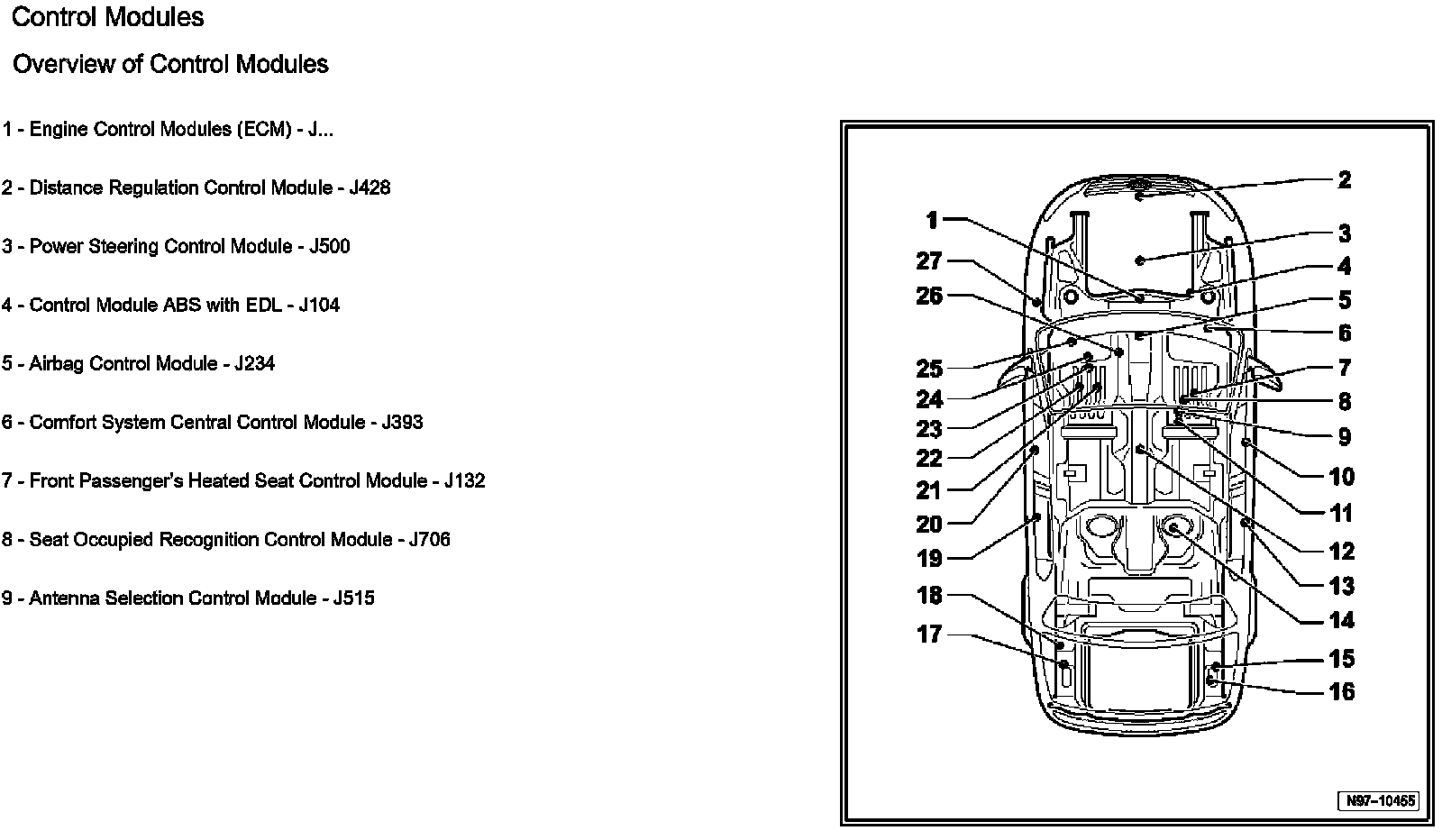

Overview Of Control Modules (Part 1):

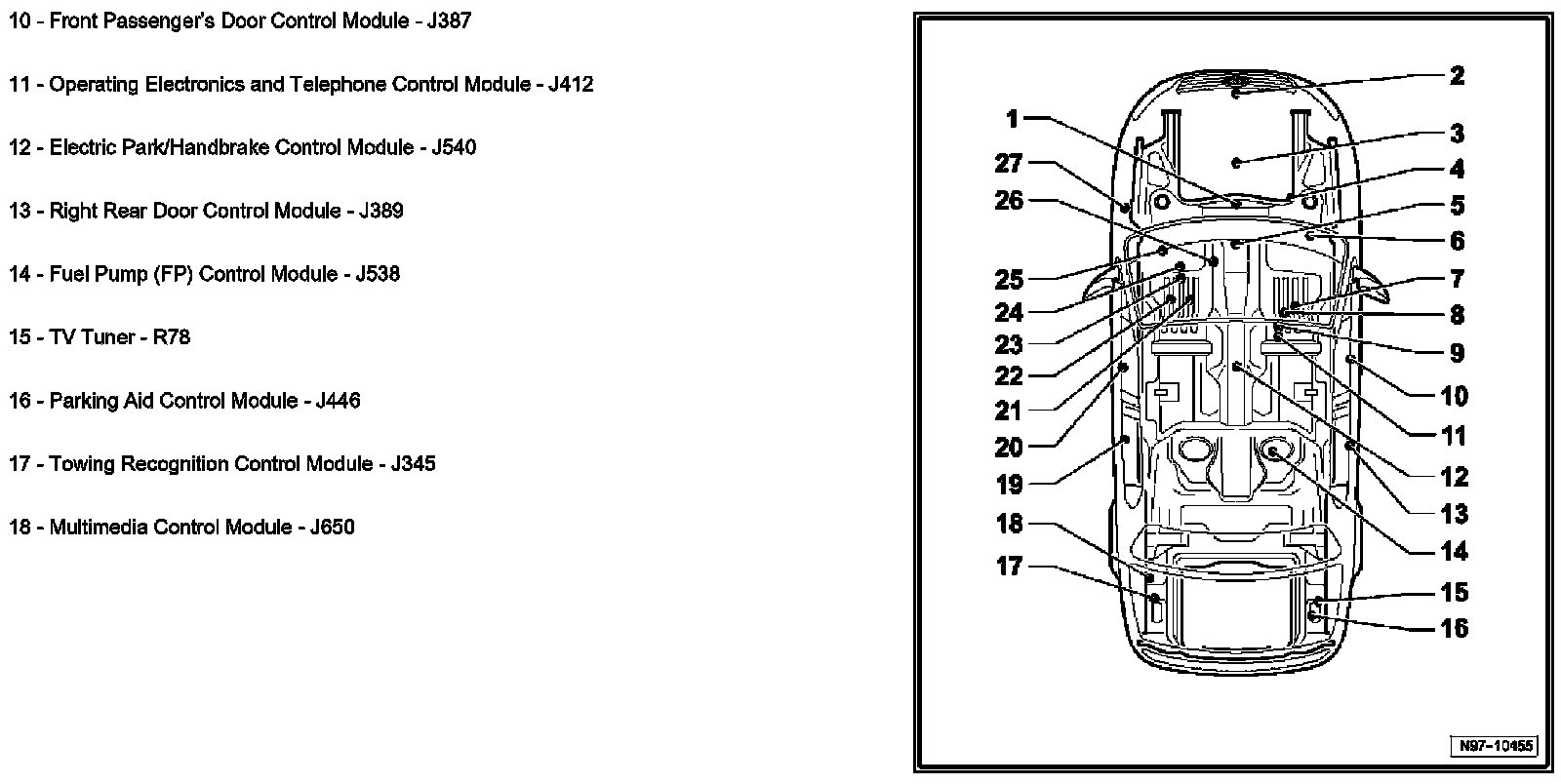

Overview Of Control Modules (Part 2):

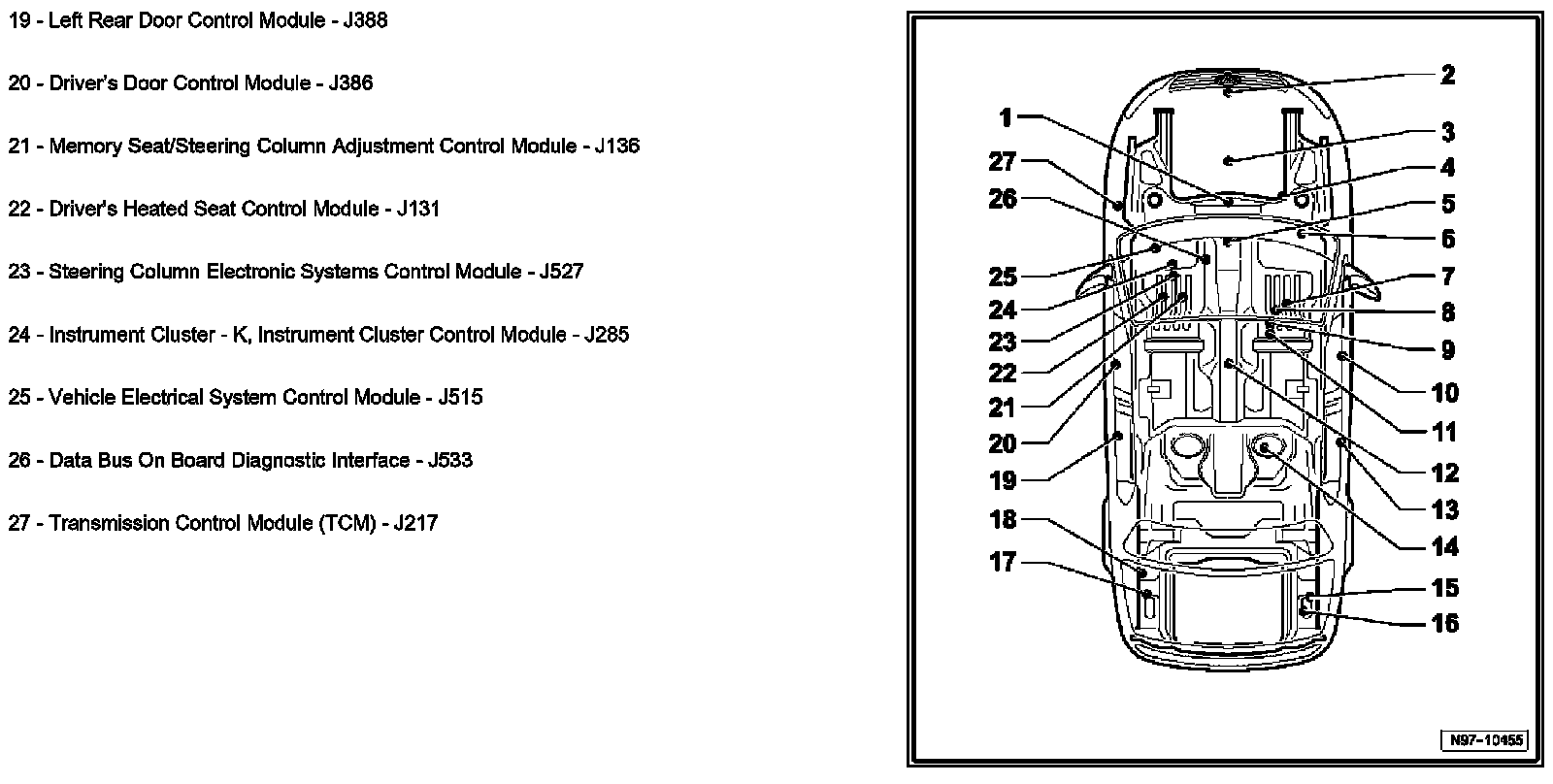

Overview Of Control Modules (Part 3):
