Home >> Volkswagen >> 2007 >> Jetta Sedan (1K2) L5-2.5L (BGQ) >> Repair and Diagnosis >> Locations >> Component Locations >> Control Modules, From May 2005 >> Control Modules Overview

Control Modules Overview

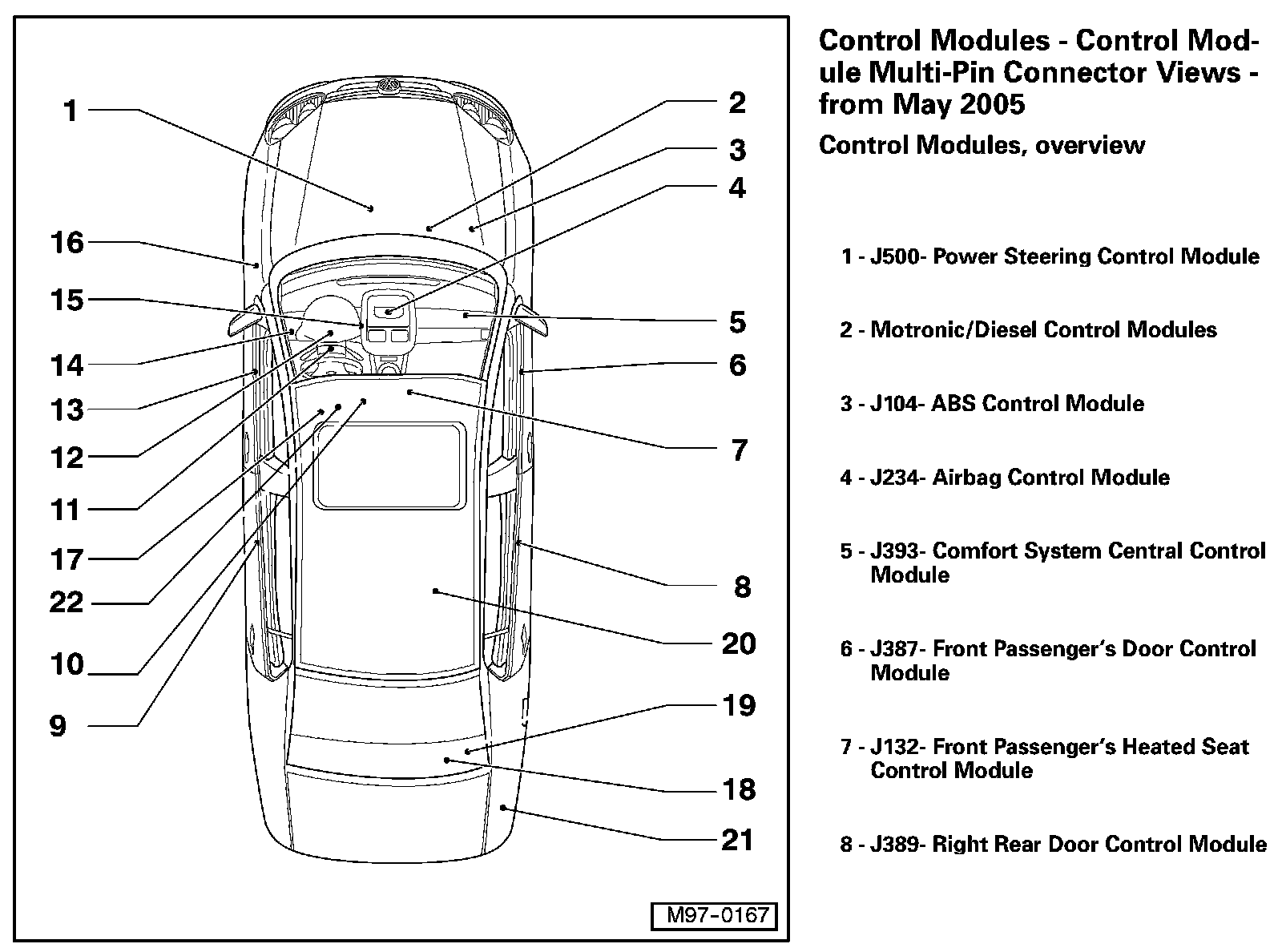

Control Modules Overview (Part 1):

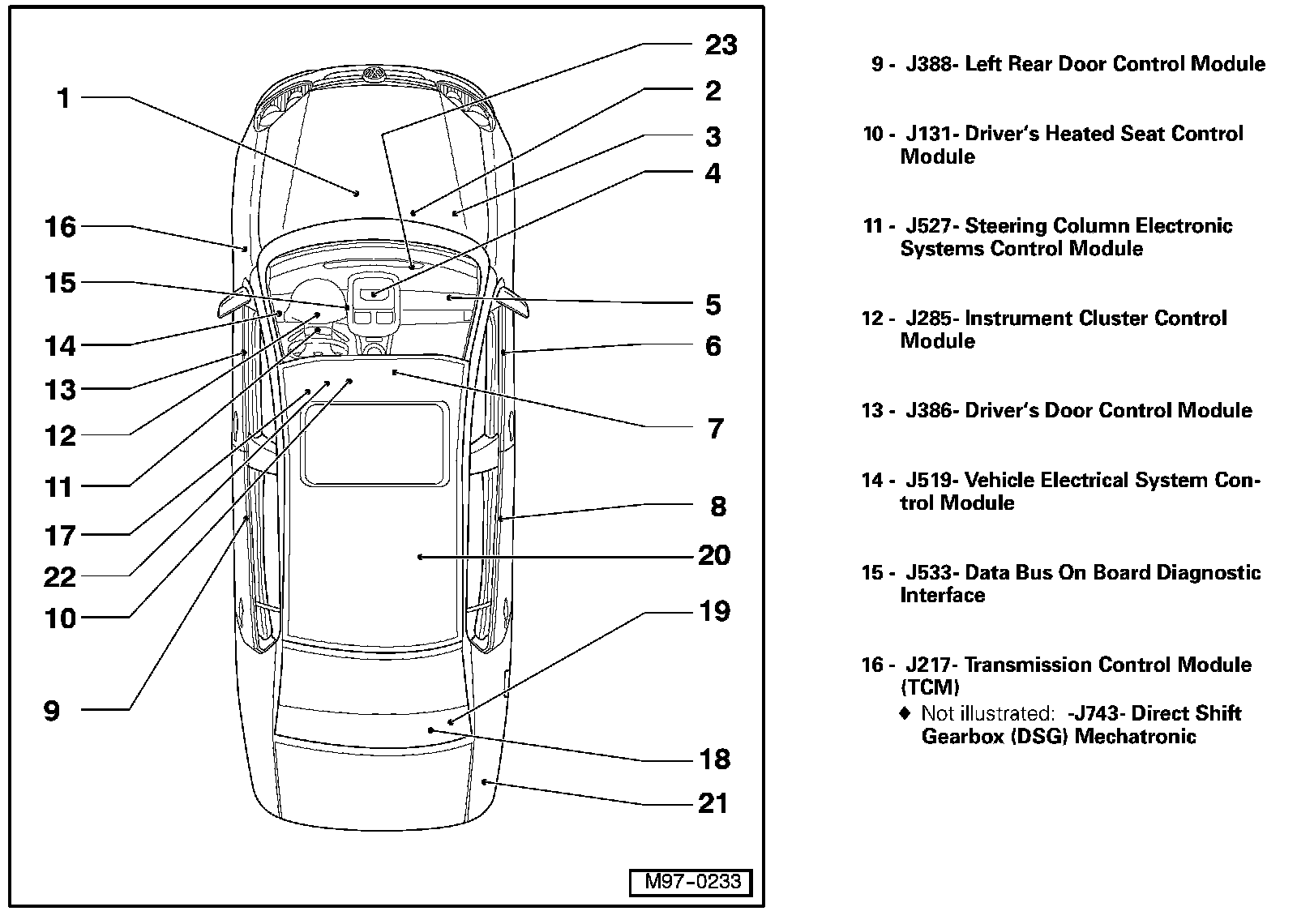

Control Modules Overview (Part 2):

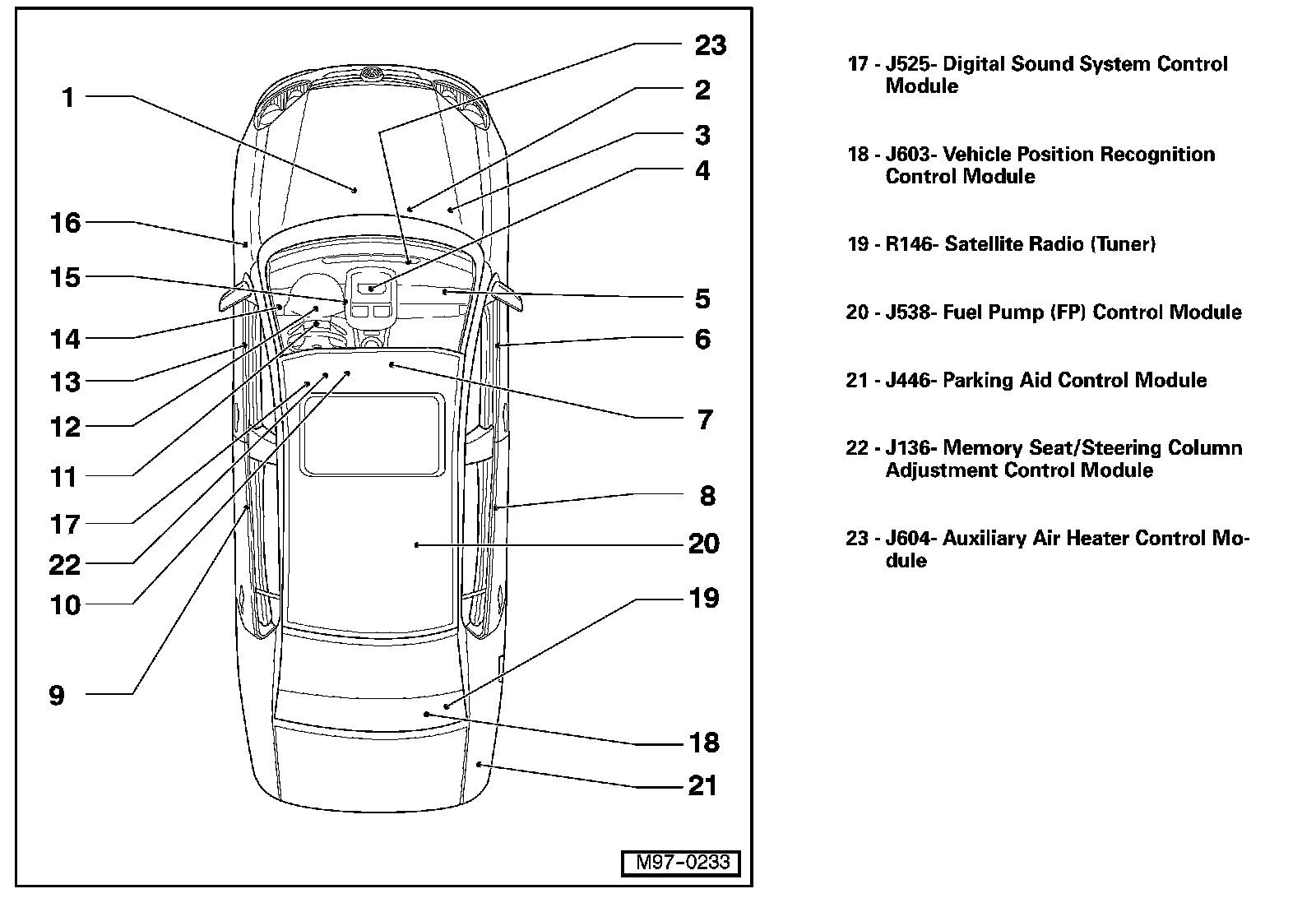

Control Modules Overview (Part 3):
