Power Steering Control Module J500

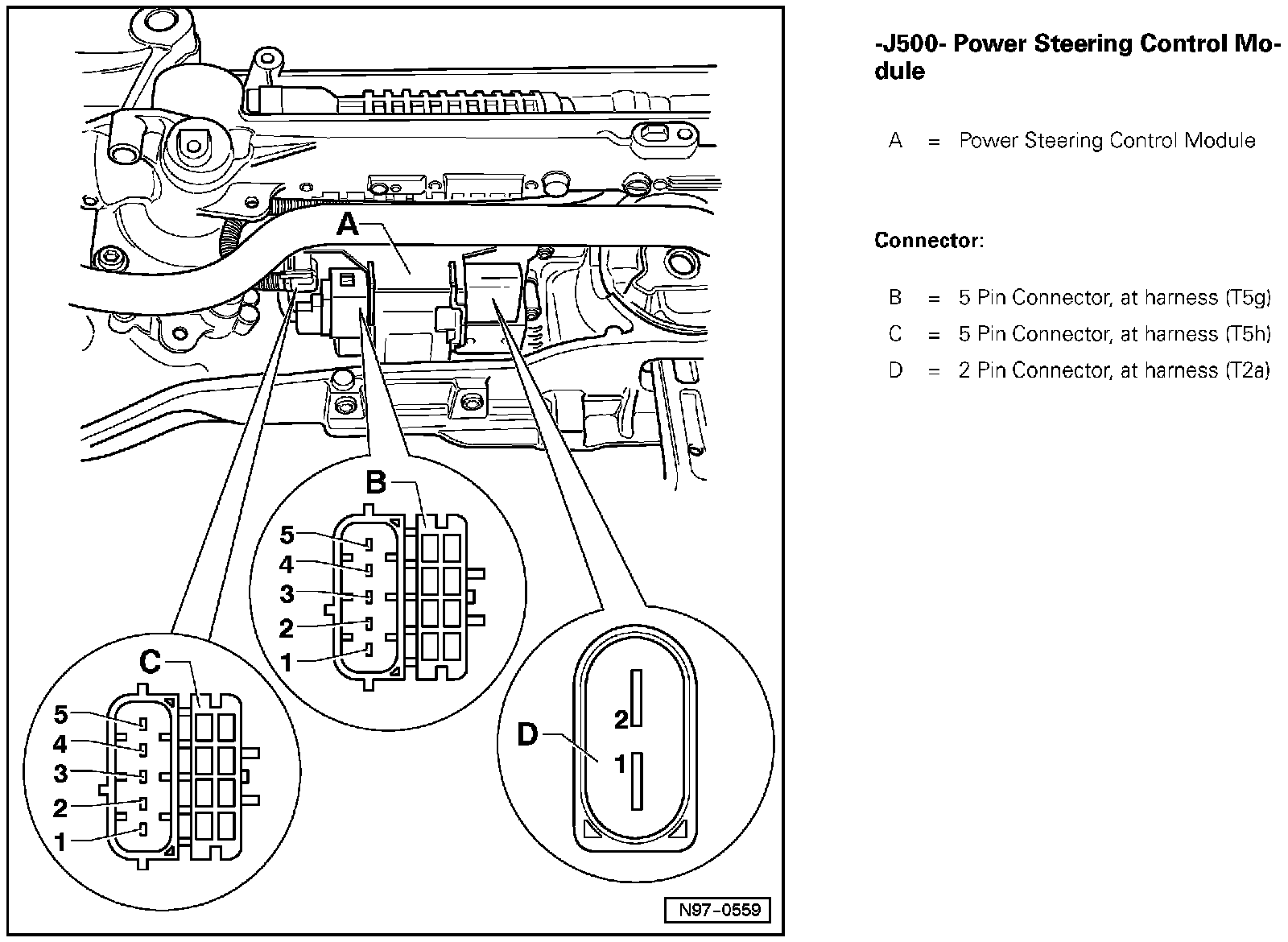

Power Steering Control Module J500 (Part 1):

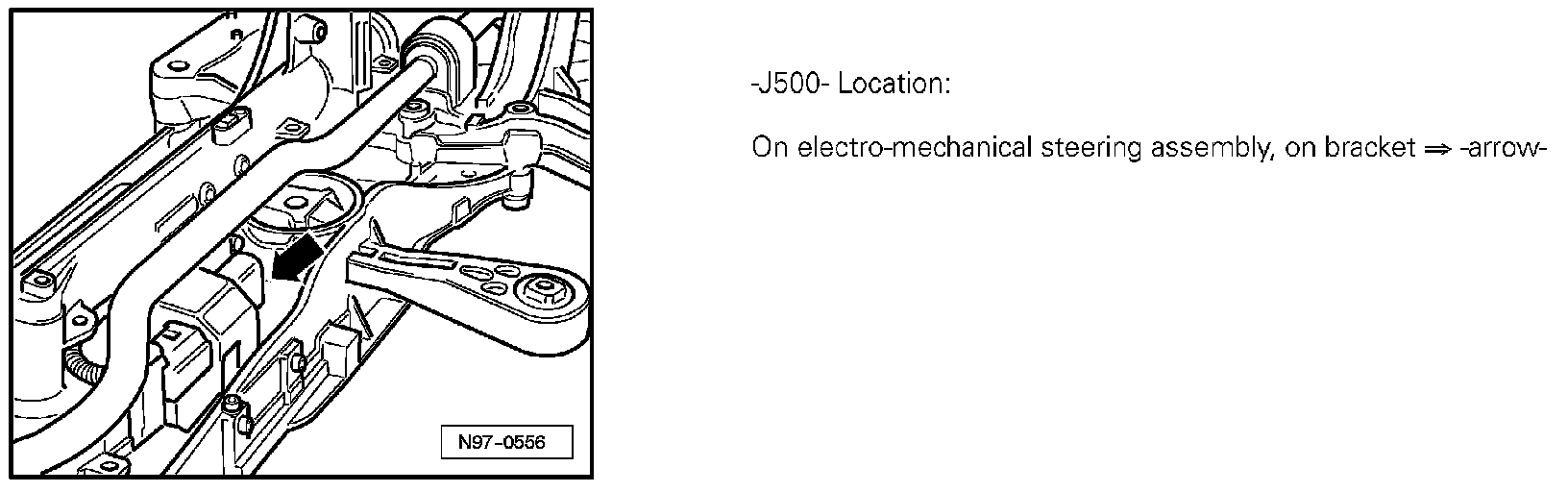

Power Steering Control Module J500 (Part 2):
