ABS Control Module (Models With ABS/EDL/ASR) J104

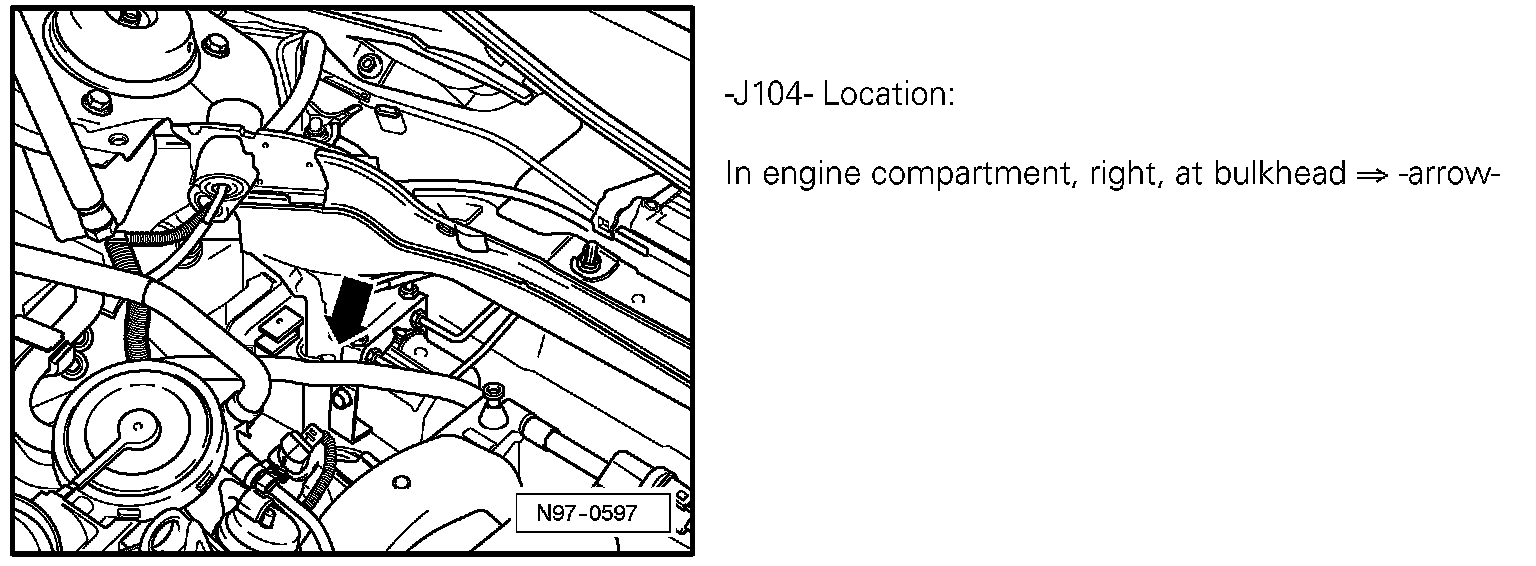

ABS Control Module (Models With ABS/EDL/ASR) J104 (Part 1):

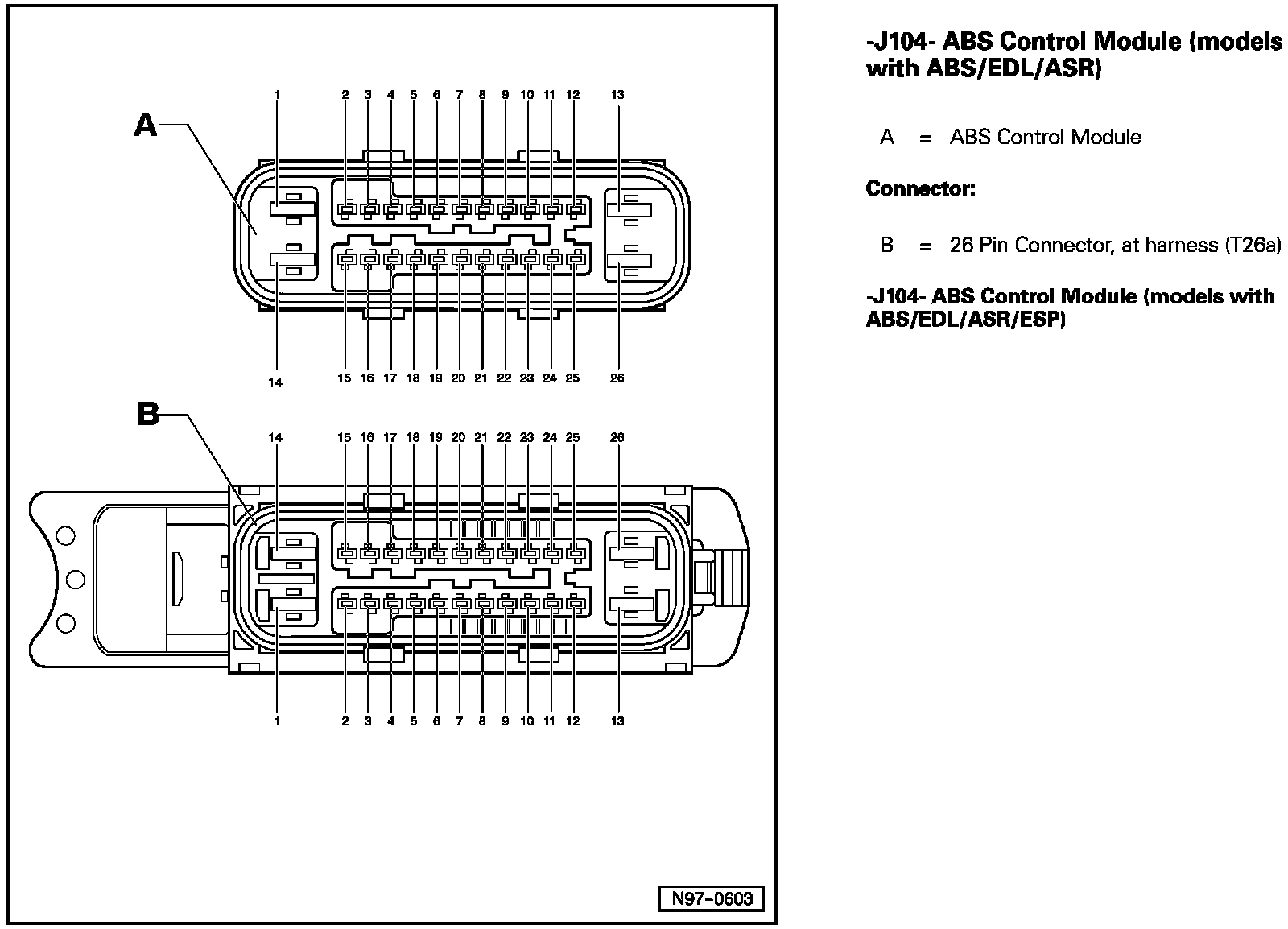

ABS Control Module (Models With ABS/EDL/ASR) J104 (Part 2):
