ABS Mark 60

Multi-pin connector with contact assignments

Note: All contacts not listed are currently not assigned and must never be connected to other components!

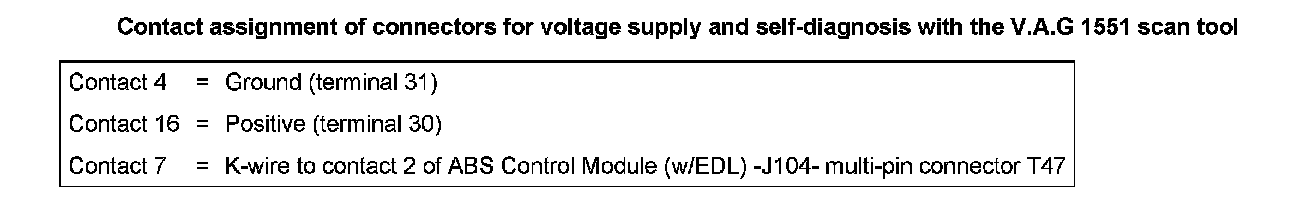

Contact assignment of connectors for voltage supply and self-diagnosis with the V.A.G 1551 scan tool

Contact assignment of connectors for voltage supply and self-diagnosis with the V.A.G 1551 scan tool:

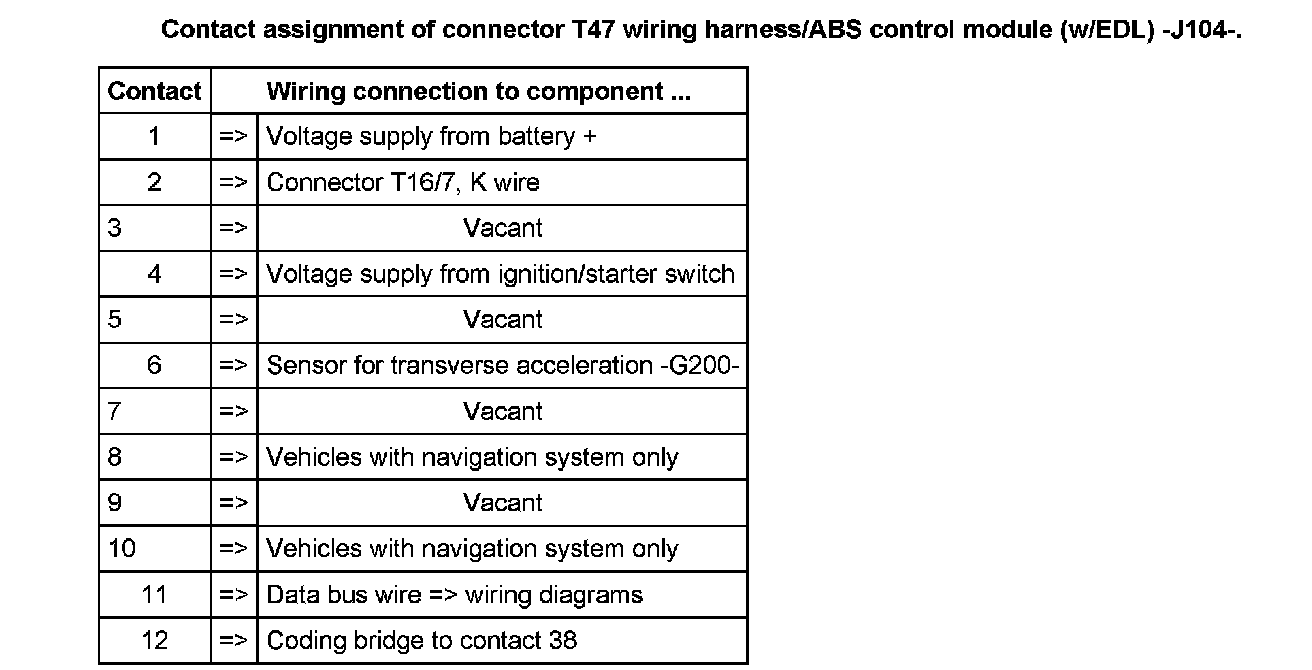

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -Jl04-.

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104- (Part 1):

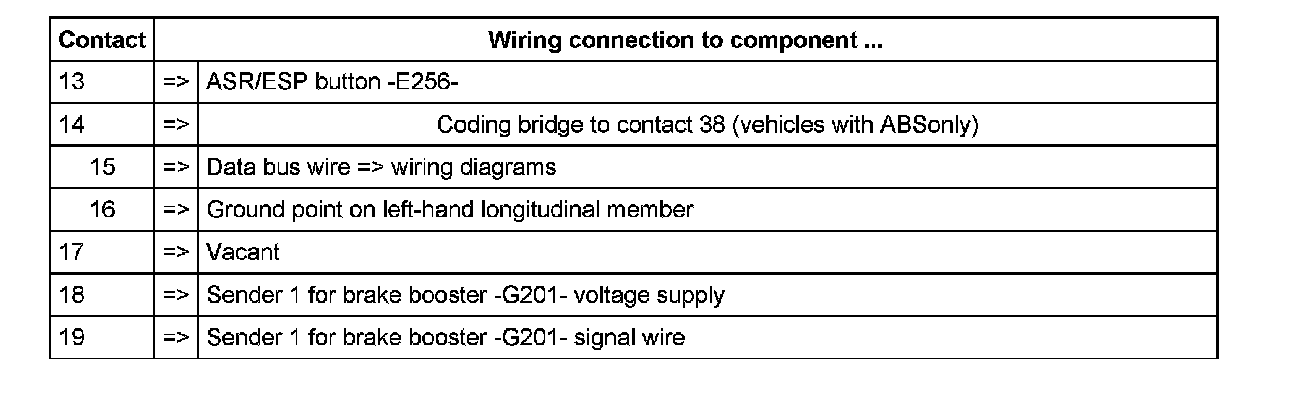

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104- (Part 2):

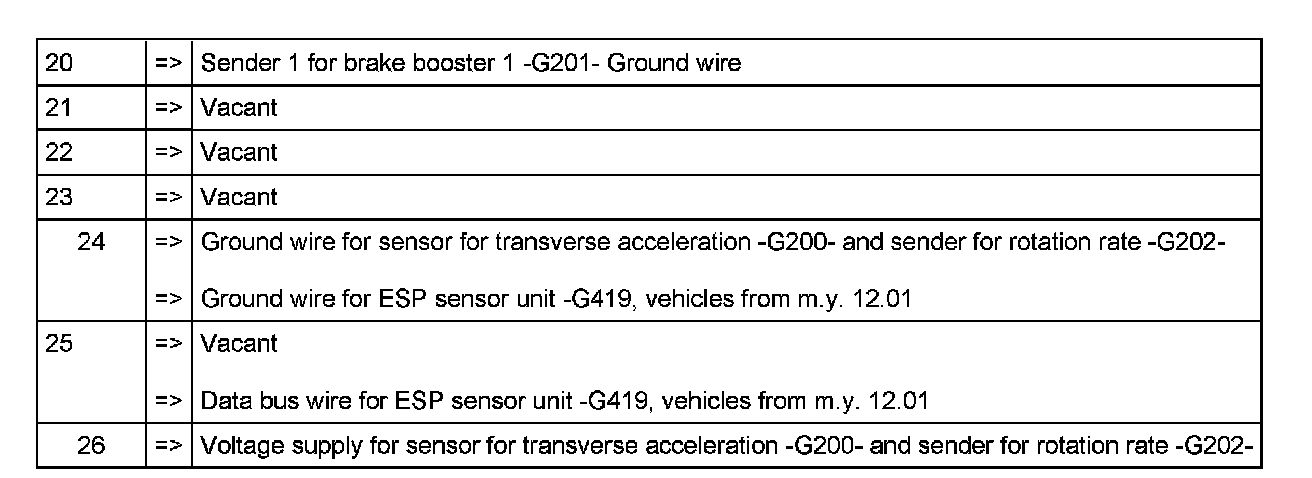

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104- (Part 3):

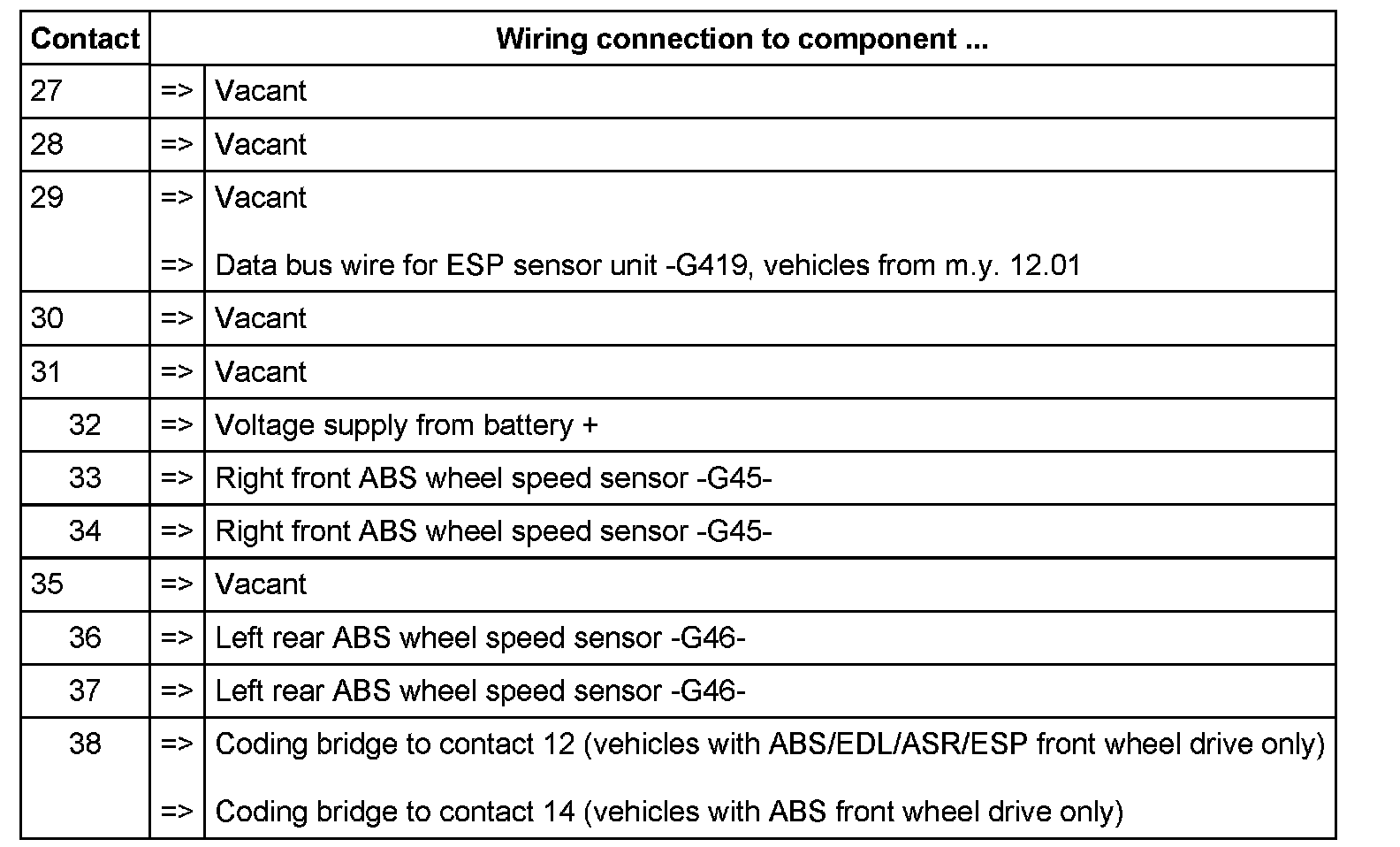

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104- (Part 4):

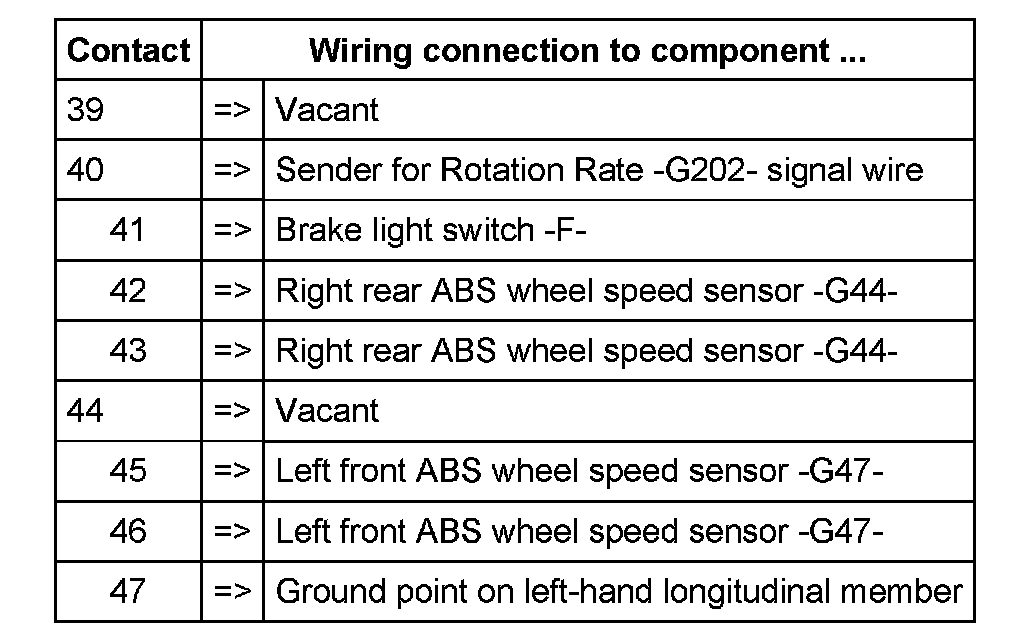

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104- (Part 5):

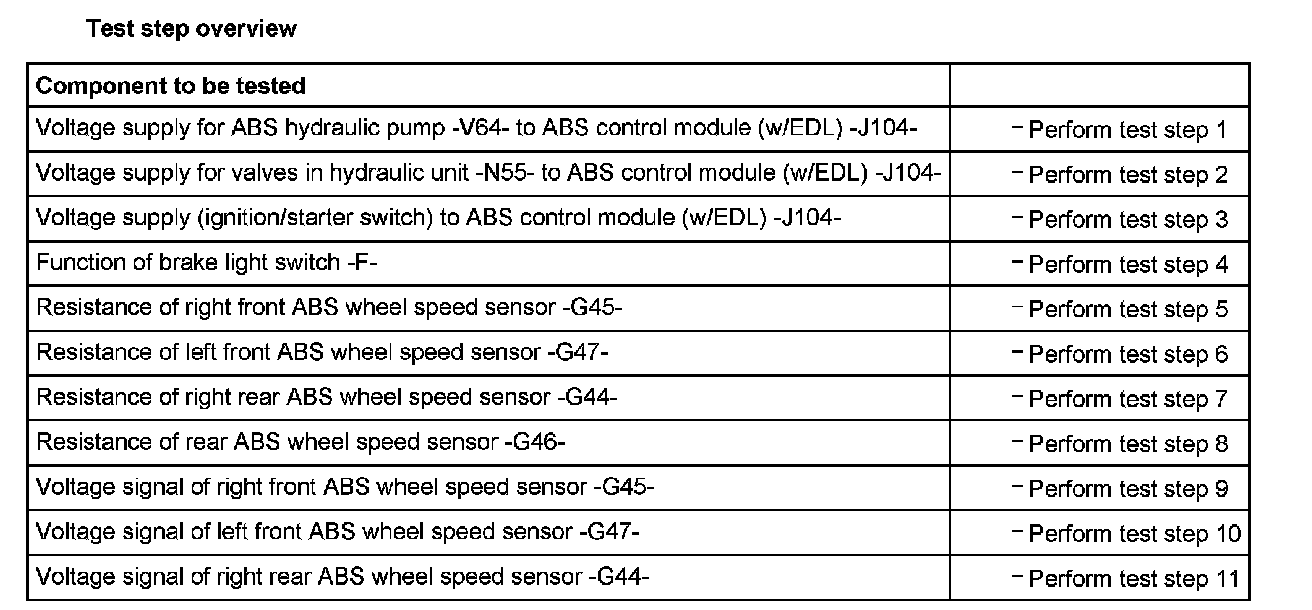

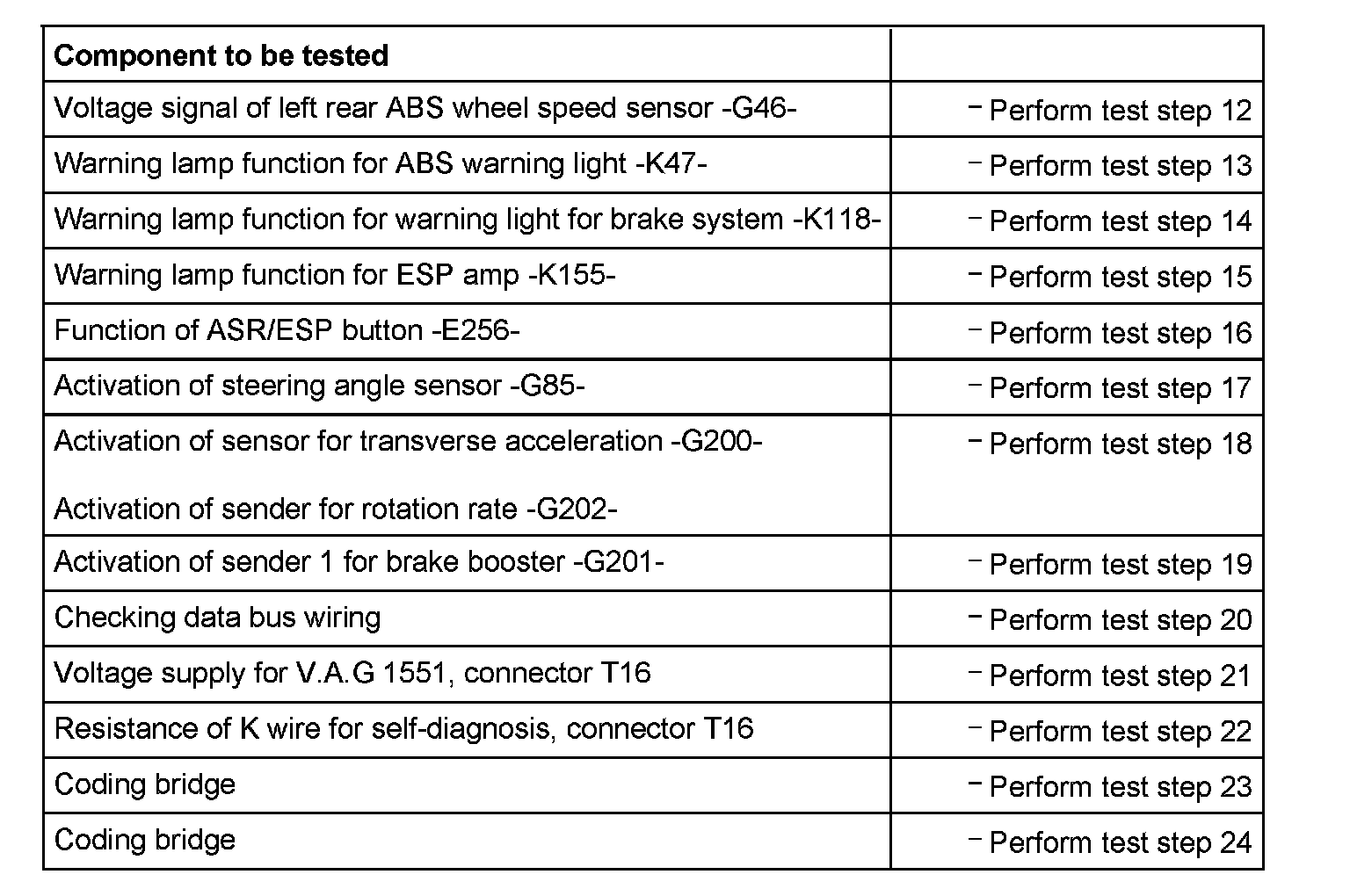

Test step overview
