Engine Control Module: Locations

J217, J220:

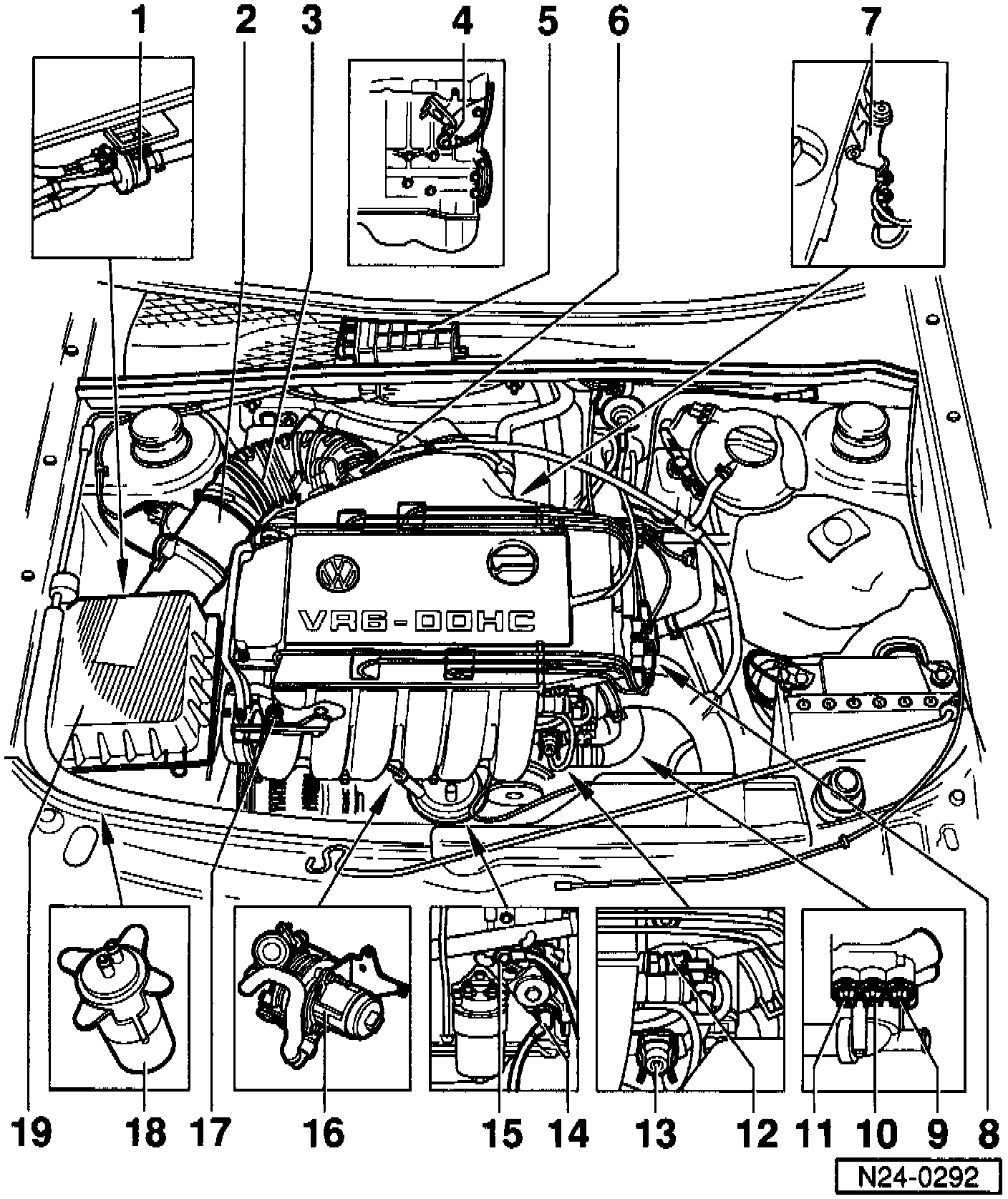

Underhood View:




Component Location View

J220 Motronic Engine Control Module (ECM)
5 - In fresh air plenum chamber, right side.
