Channel 7 Interpretation

Diagnosis, Fault Memory - Passat

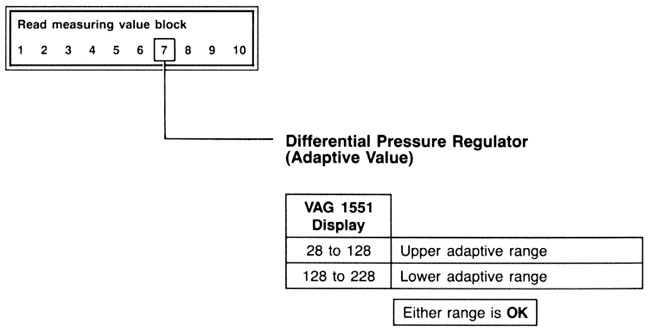

VAG 1551 Function 08, Channel 7 Interpretation





A Value of 228 Equals +10 Milliamps of Differential Pressure Regulator Current

A Value of 128 Equals 0 Milliamps of Differential Pressure Regulator Current

A Value of 228 Equals -10 Milliamps of Differential Pressure Regulator Current
