Digifant I Control Unit (California)

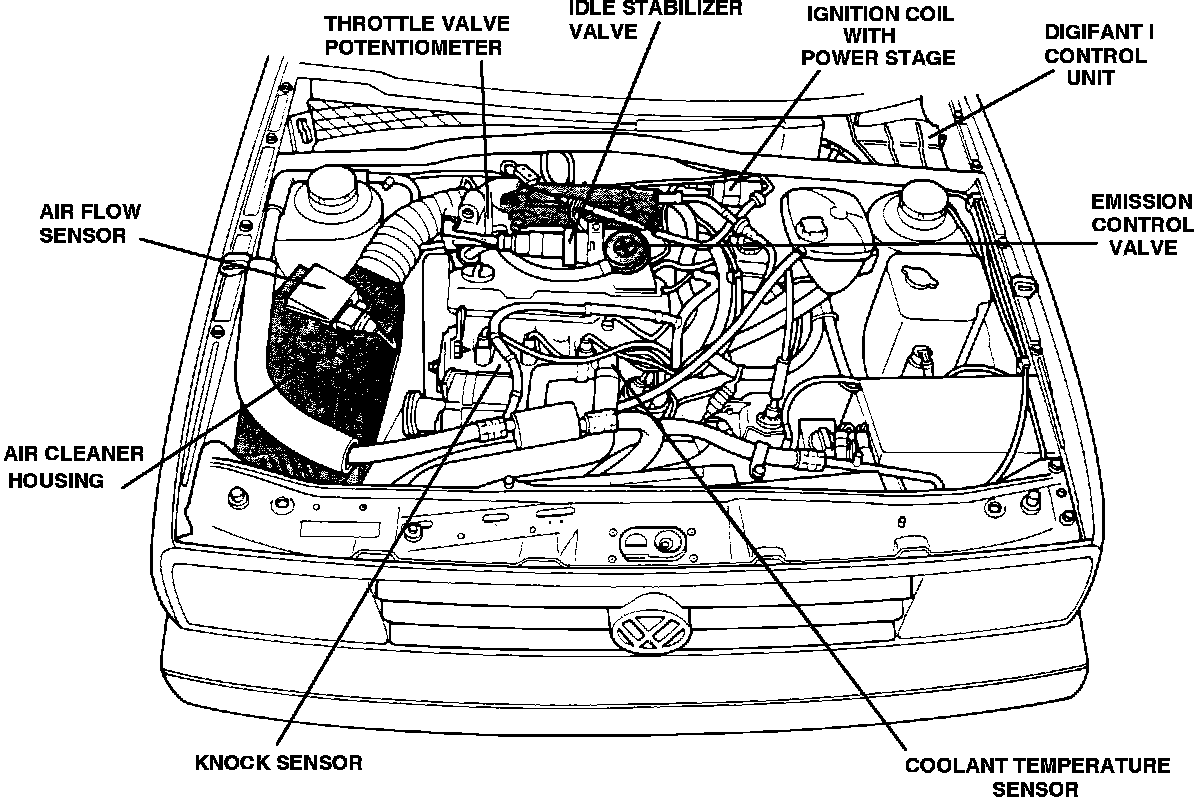

Digifant Engine Compartment Components:





The Digifant I control unit is located at the left rear of the engine compartment under the drip tray.
