Exploded Views
Exploded Views
CIS-E Fuel Line Specifications:
FUEL LINE DIAGRAM

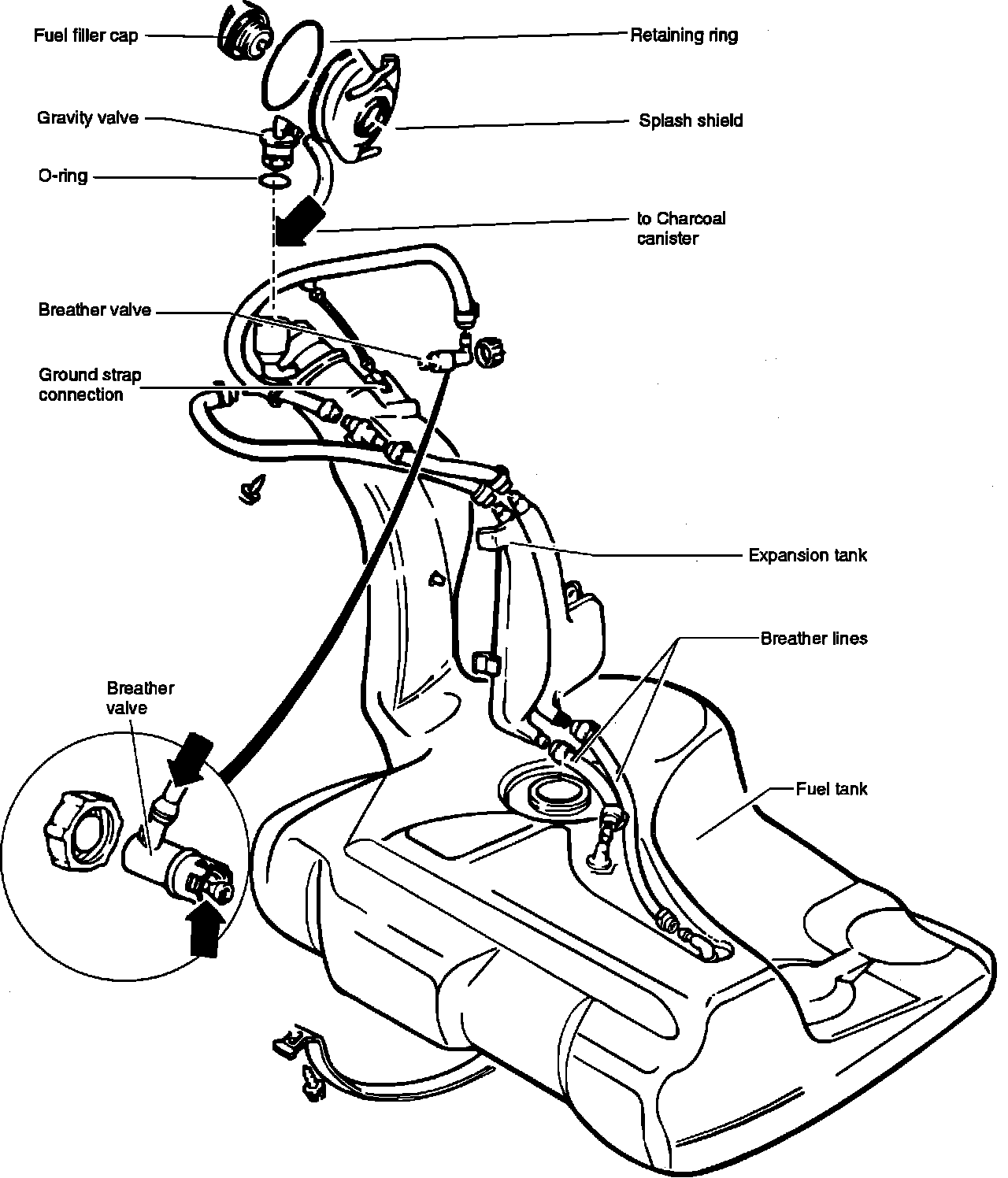

Fuel Tank:
FUEL TANK DIAGRAM
