Ignition Control Module: Testing and Inspection

System Electrical Test/ECM Pin-Out Test

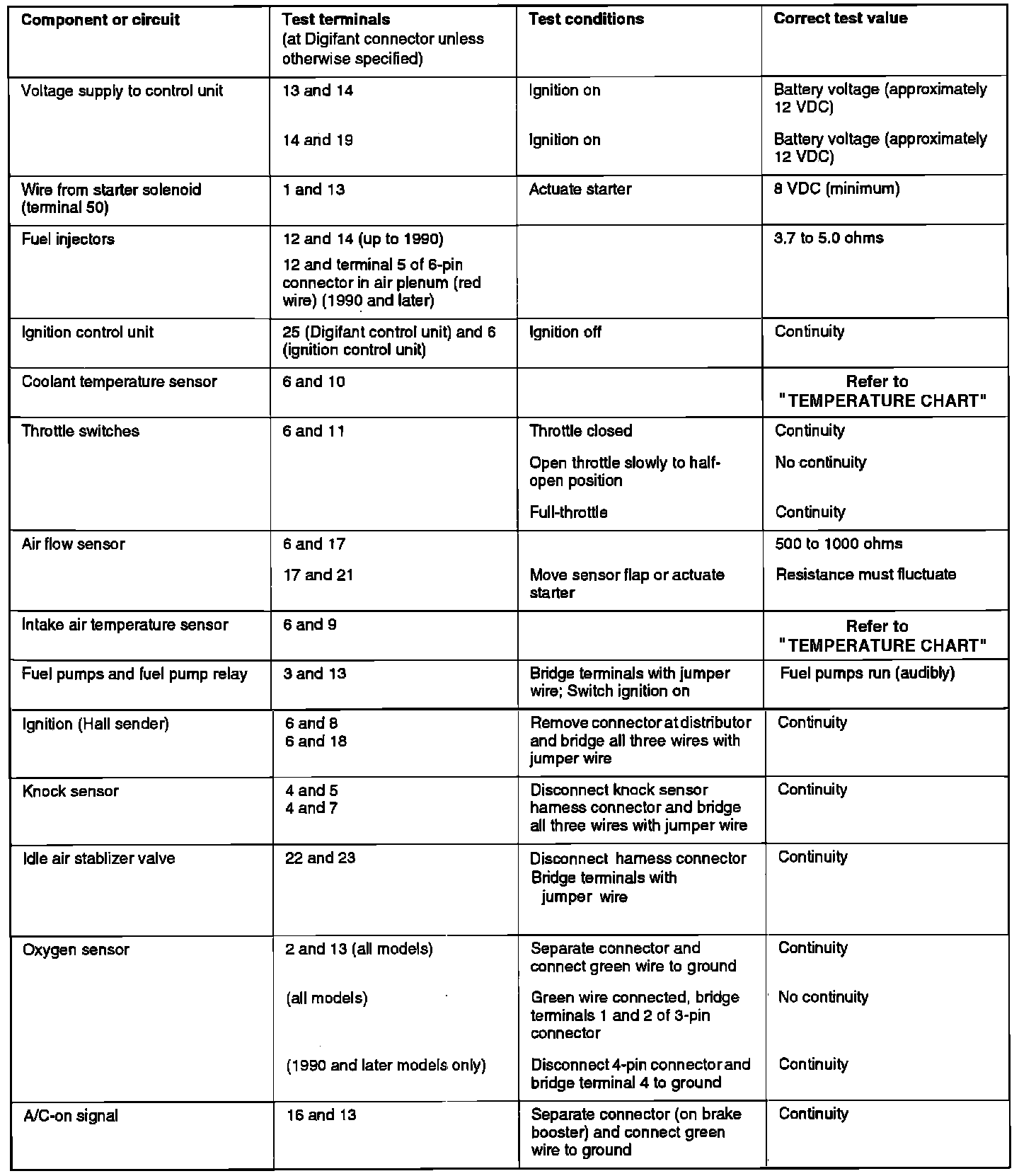

System Electrical Testing:





DIGIFANT SYSTEM





TEMPERATURE CHART
