Ignition Control Module: Testing and Inspection

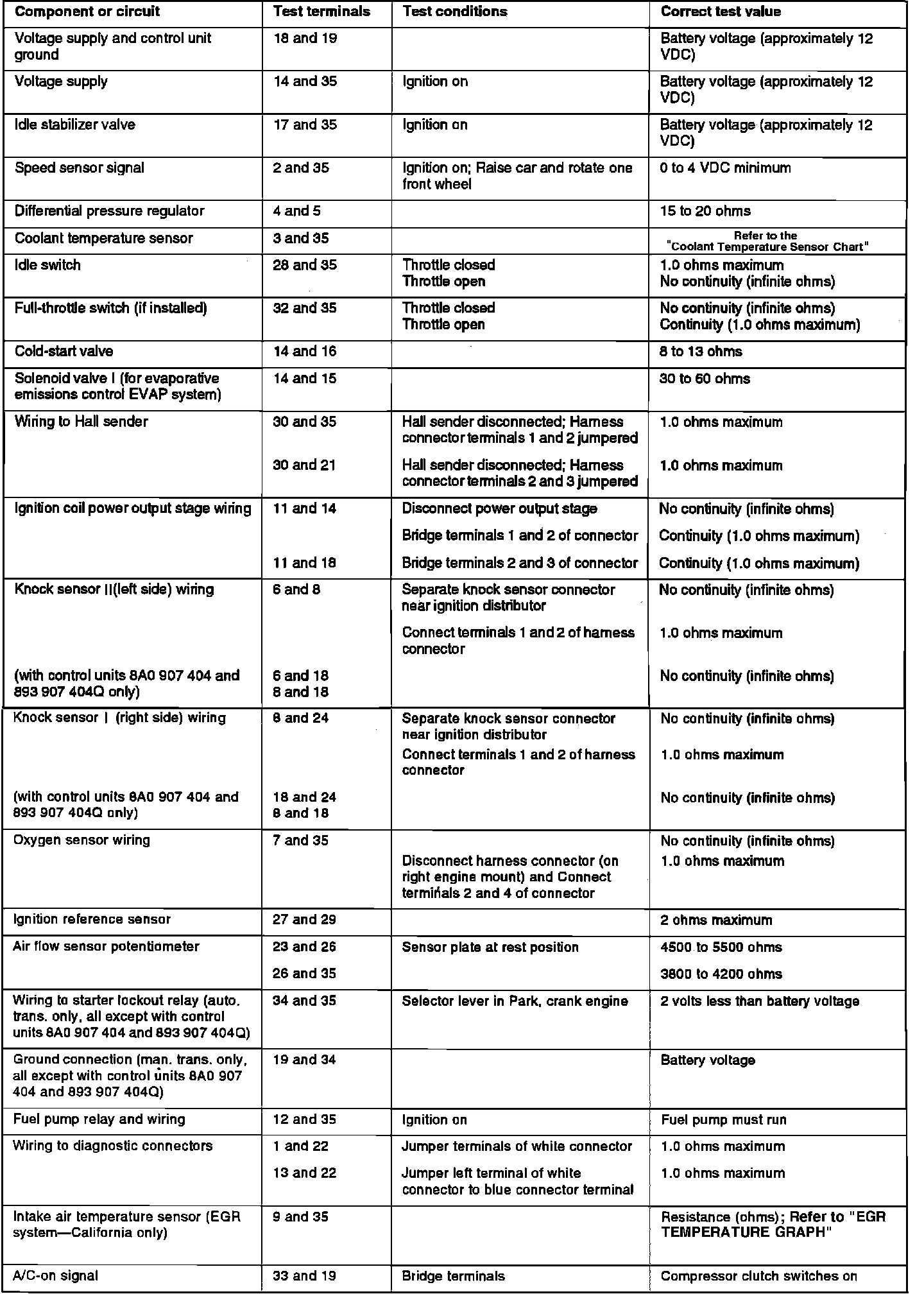

System Electrical Test/ECM Pin-Out Test

System Electrical Testing:





CIS-E SYSTEM





COOLANT TEMPERATURE SENSOR CHART

Intake Air Temperature Chart (EGR):





EGR TEMPERATURE CHART
