Upshift Indicator Control Relay Unit
Upshift Indicator Control Relay Unit

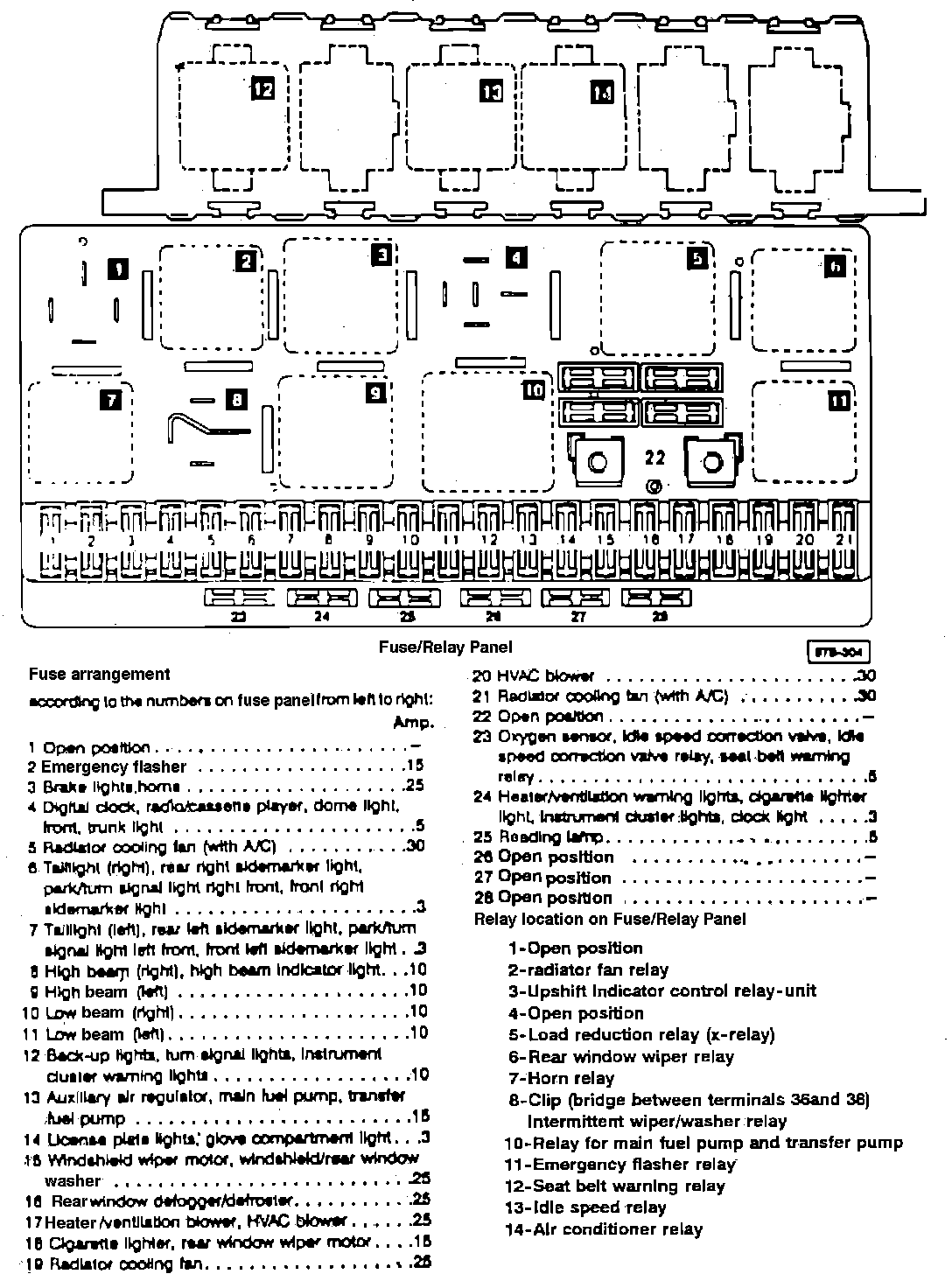

Fuse/Relay Panel:
On Fuse/Relay Panel
