Home >> Volkswagen >> 1987 >> Golf L4-1781cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Hub

Wheel Hub

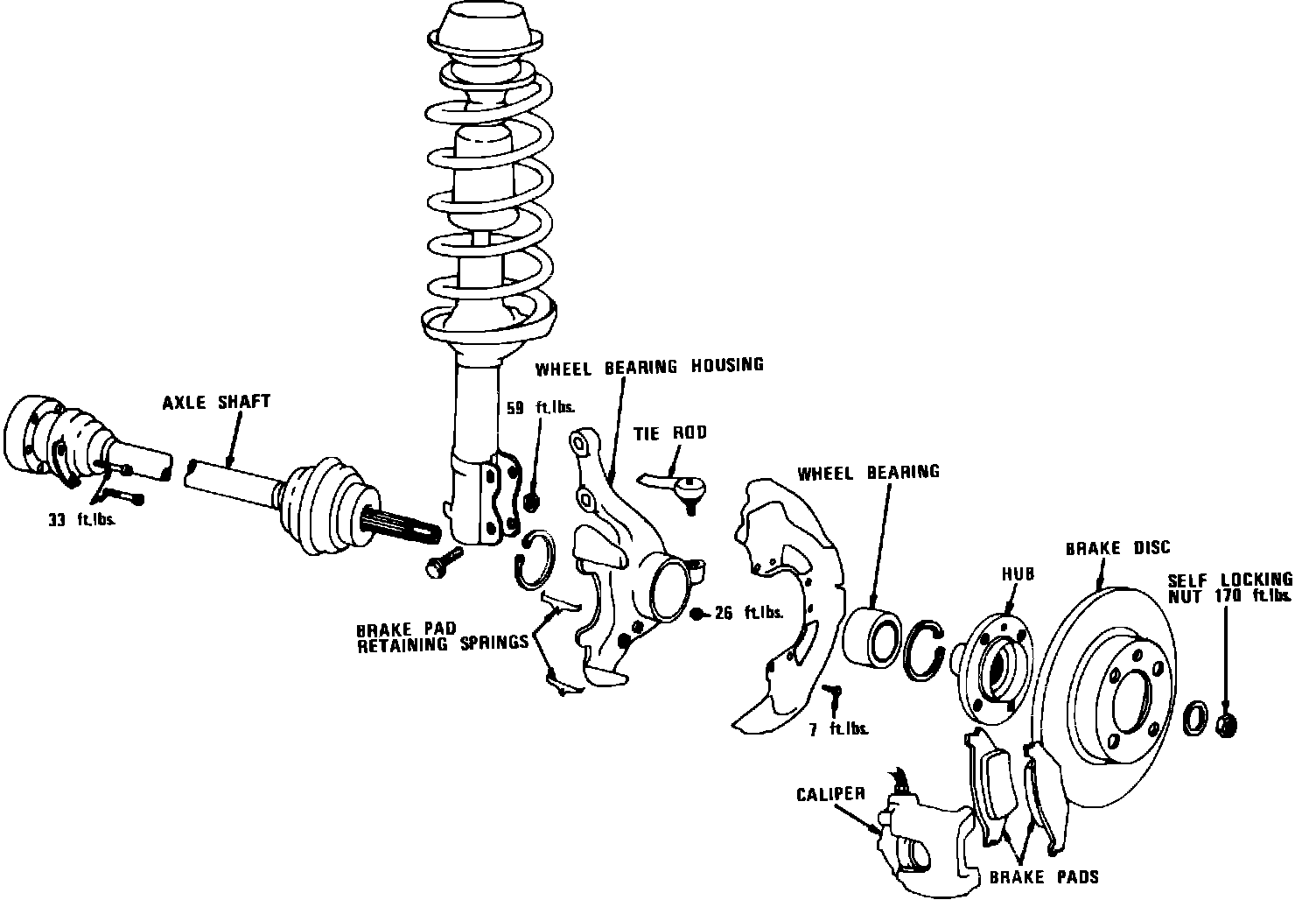

Fig. 4 Wheel bearing exploded view.:
