Volkswagen
>>
1987
>>
Golf L4-1781cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Gearshift
Gearshift

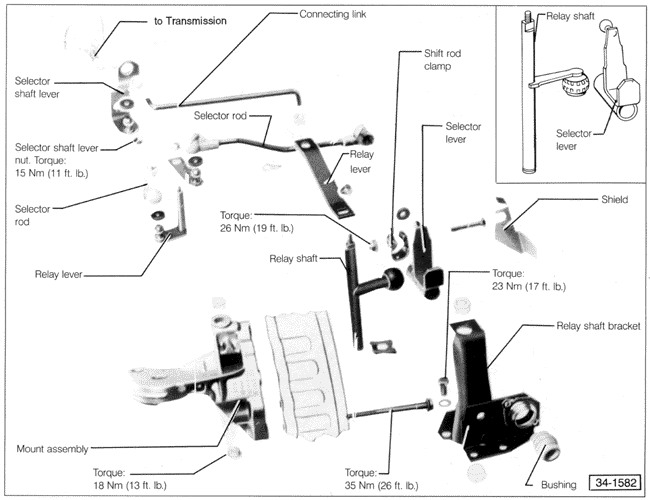

Exploded view of shift mechanism. Inset shows new relay shaft and selector lever used on models produced since mid-1985:

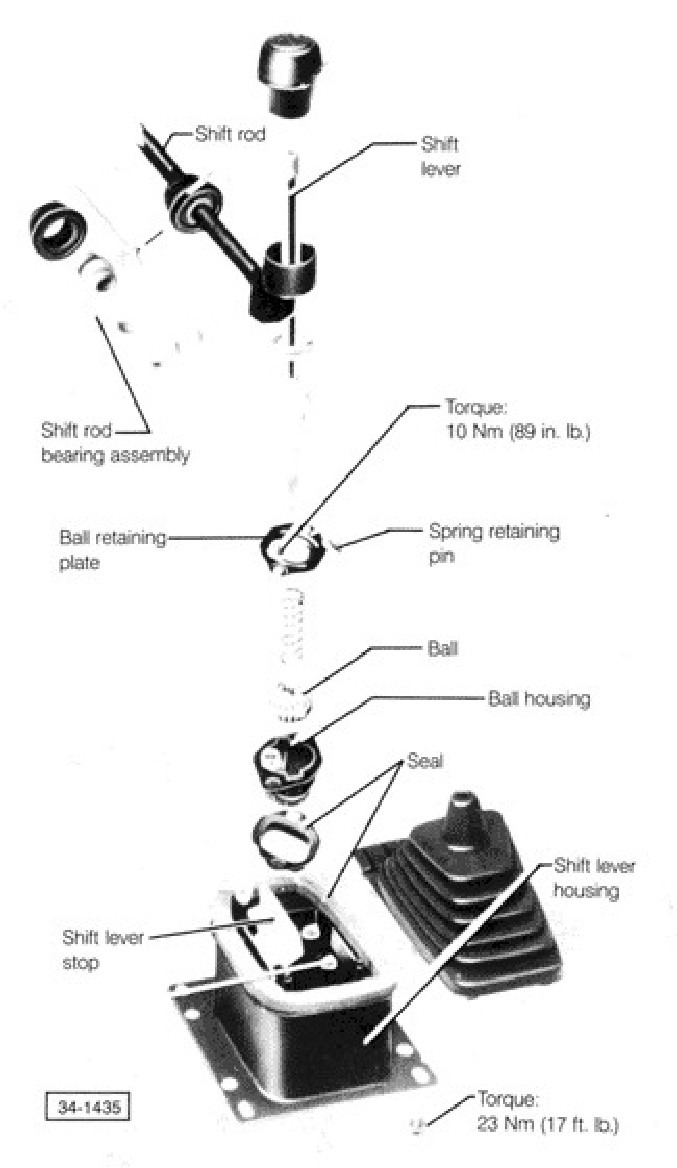

Exploded view of gearshift lever and related parts:
