Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: STEERING ANGLE SENSOR (w/ VSC): REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE STEERING WHEEL ASSEMBLY

Removal

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

3. REMOVE LOWER STEERING COLUMN COVER Removal

4. REMOVE UPPER STEERING COLUMN COVER Removal

5. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR Removal

6. REMOVE STEERING ANGLE SENSOR

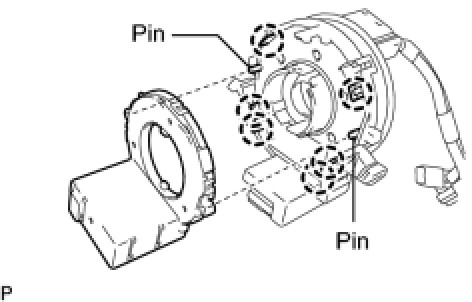

(a) Disengage the 6 claws and 2 pins, and remove the steering angle sensor from the spiral cable.
