Torque Specifications





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

CAMSHAFT





CYLINDER HEAD GASKET





CYLINDER HEAD

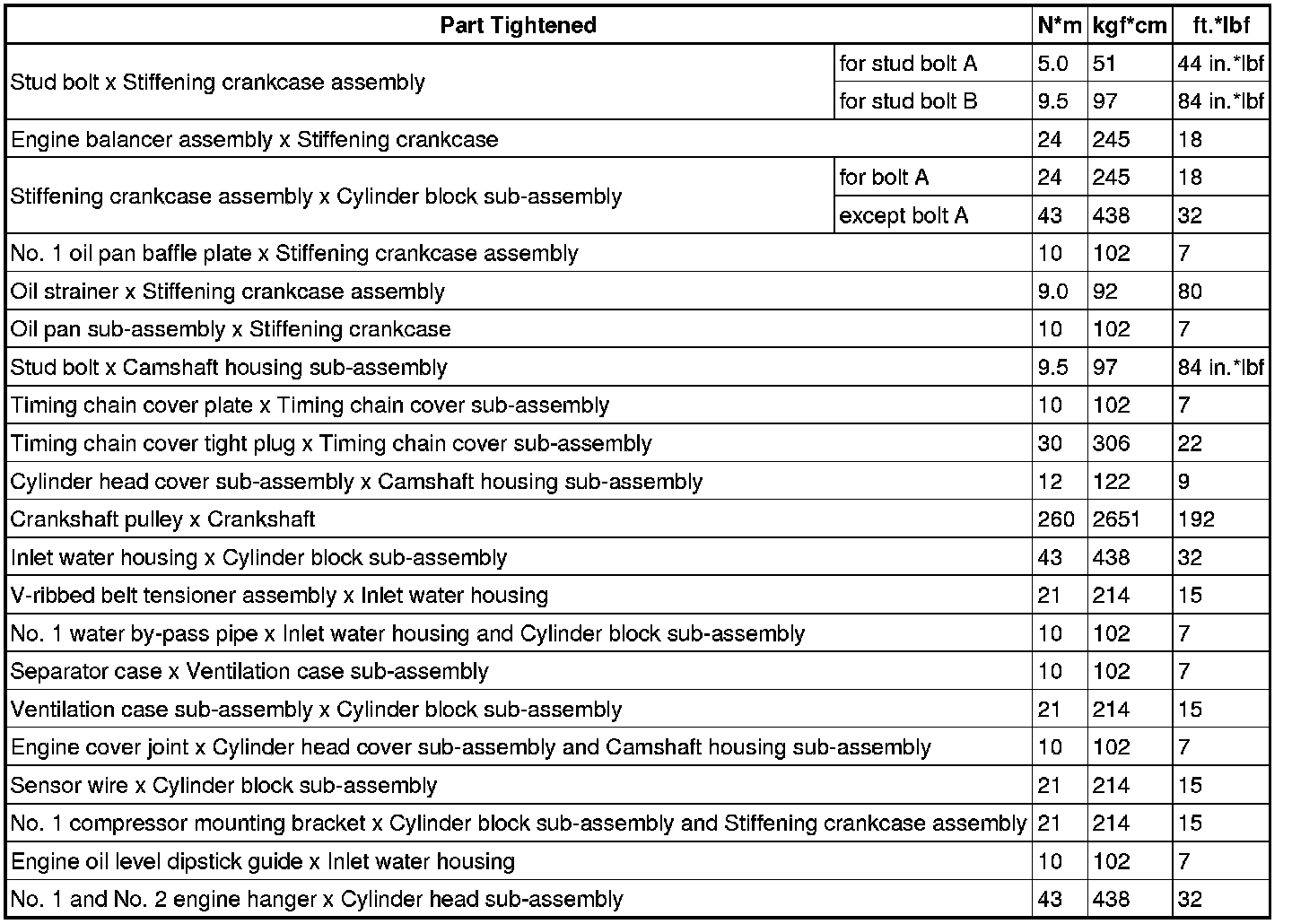

CYLINDER BLOCK





FRONT CRANKSHAFT OIL SEAL





REAR CRANKSHAFT OIL SEAL

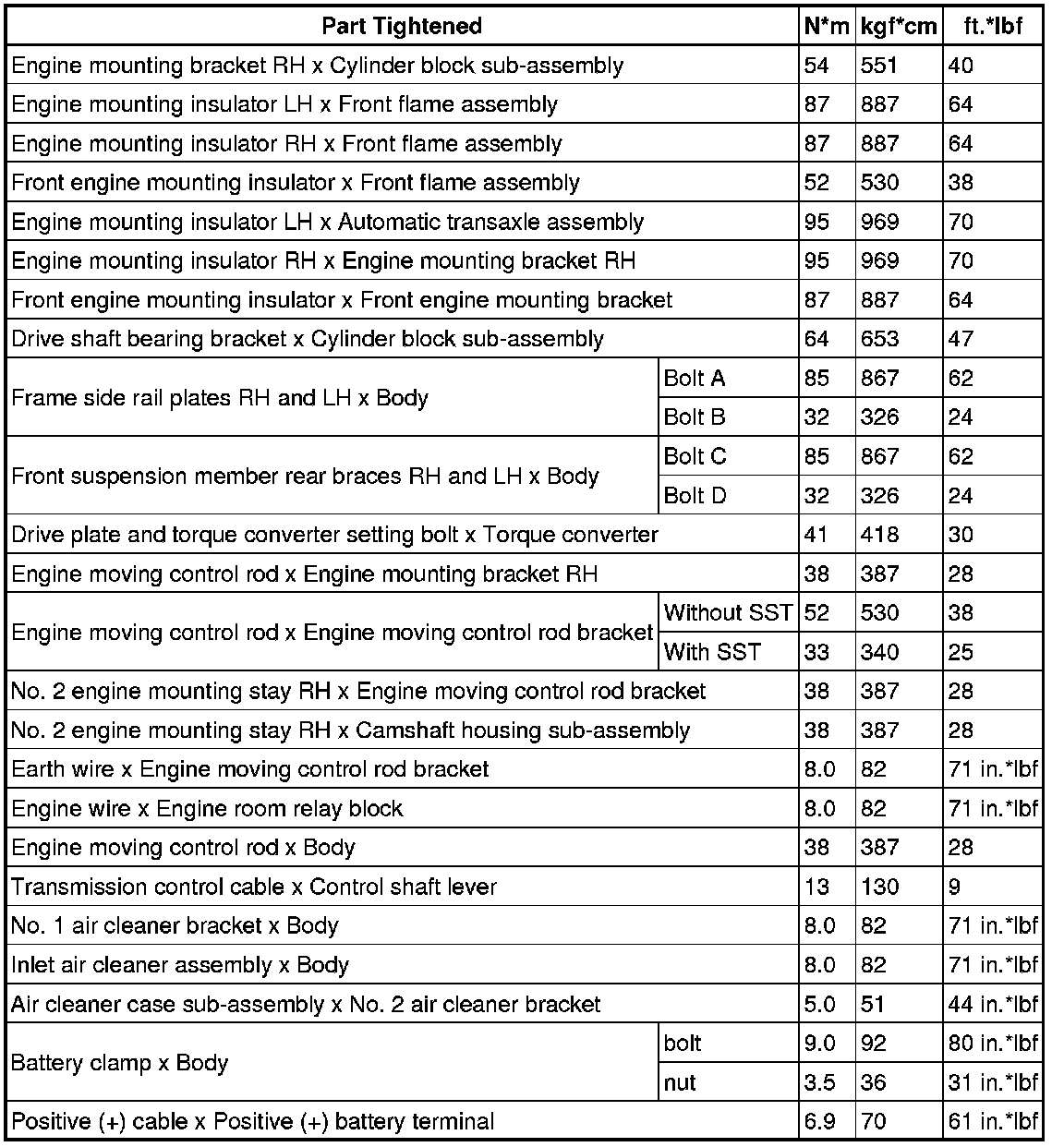

ENGINE ASSEMBLY





ENGINE UNIT
