Home >> Toyota >> 2012 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Locations >> Automatic Headlight

Automatic Headlight

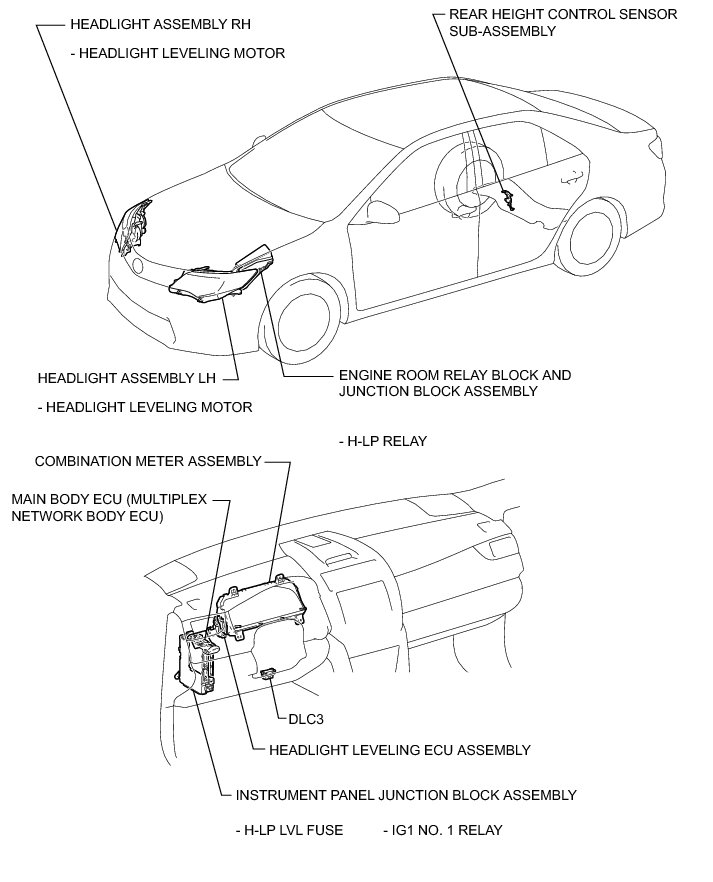

LIGHTING (EXT): AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM: PARTS LOCATION
