Installation

INTERIOR: REAR SUNSHADE ASSEMBLY: INSTALLATION

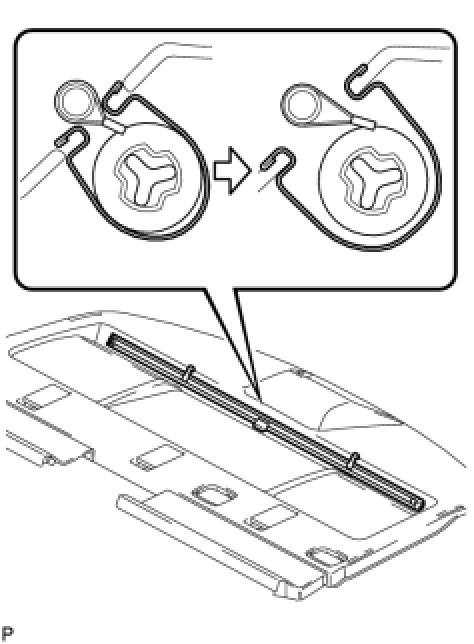

1. INSTALL REAR WINDOW SHADE ASSEMBLY

(a) Install the rear window shade assembly as shown in the illustration.

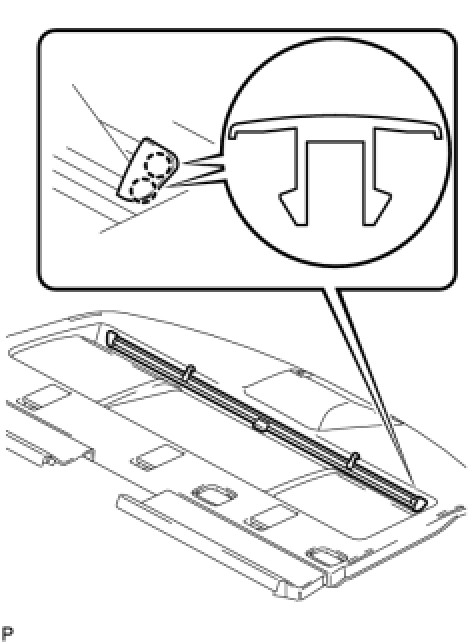

2. INSTALL CURTAIN RAIL END CAP LH

(a) Engage the 2 claws and install the curtain rail end cap LH.





3. INSTALL CURTAIN RAIL END CAP RH

HINT
Use the same procedures for the RH side and the LH side.

4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

5. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Installation

6. INSTALL REAR SEAT SHOULDER BELT COVER Installation

7. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Installation

8. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Installation

9. INSTALL ROOF SIDE INNER GARNISH LH Installation

10. INSTALL ROOF SIDE INNER GARNISH RH Installation

11. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMC Made) Installation

12. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMMK Made) Installation

13. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Installation

14. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH Reassembly

15. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

HINT
Use the same procedures for the RH side and the LH side.

16. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation

17. INSTALL REAR DOOR SCUFF PLATE LH Installation

18. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation

19. INSTALL REAR DOOR SCUFF PLATE RH Installation

20. INSTALL CENTER SEAT BACK ASSEMBLY Installation

21. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH Installation

22. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH Installation

23. INSTALL REAR SEAT BACK COVER

24. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

25. INSTALL REAR SEAT HEADREST ASSEMBLY

26. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
