Installation

U760E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSTALLATION

1. INSTALL SHIFT LOCK CONTROL UNIT ASSEMBLY

(a) Install the 4 bolts and shift lock control unit assembly.





Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(b) Connect the wire harness clamp and install the screw.





(c) Connect the shift lock control ECU connector and transmission control switch wire connector.

(d) with rear register duct:

(1) Install the clip.

2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

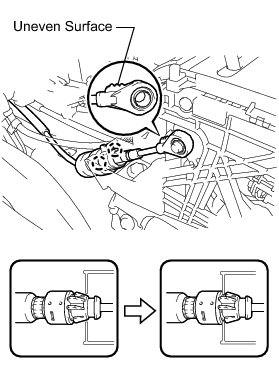

(a) Install the transmission control cable assembly as shown in the illustration.





HINT
* Install the floor shift cable with the uneven surface facing up.
* Securely engage the claws of the floor shift cable.

3. INSTALL FLOOR CARPET BRACKET LH

4. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made) Installation

5. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made) Installation

6. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made) Installation

7. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made) Installation

8. INSTALL CONSOLE BOX CARPET Installation

9. INSTALL CONSOLE BOX POCKET Installation

10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Installation

11. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Installation

12. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation

13. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY Installation

14. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

15. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

(a) Turn the shift lever knob sub-assembly clockwise to install it.





17. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (without Smart Key System) Installation

18. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (with Smart Key System) Installation

19. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Installation

20. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Installation

21. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

22. INSTALL FRONT DOOR SCUFF PLATE LH Installation

23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

24. INSPECT SHIFT LEVER POSITION Adjustments

25. ADJUST SHIFT LEVER POSITION Adjustments
