Installation

U760E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Move the shift lever to N.

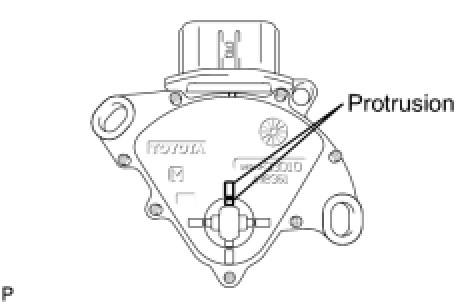

(b) Align the protrusions of the park/neutral position switch.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

NOTICE:
* Before installing the park/neutral position switch, remove any dirt or rust on the installation portion of the control shaft. Be sure to install the switch straight along the shaft while being careful not to deform the plate spring that supports the shaft. If the plate spring is deformed, the park/neutral switch cannot be reinstalled correctly.
* After installing the park/neutral position switch, confirm that the 2 protrusions on the switch are aligned.

(d) Install the control shaft lever to the control shaft with the nut and washer.

Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

(e) Connect the connector to the park/neutral position switch.

(f) Connect the transmission control cable to the transmission control cable bracket with a new clip.

(g) Connect the transmission control cable to the control shaft lever with the nut.

Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

(h) Connect the wire harness clamp.

2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

3. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (for PZEV) Installation

5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (except PZEV) Installation

6. INSTALL INLET AIR CLEANER ASSEMBLY Installation

7. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION Initial Inspection and Diagnostic Overview

8. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

9. INSPECT SHIFT LEVER POSITION Adjustments

10. ADJUST SHIFT LEVER POSITION Adjustments
