Removal

2AR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE

HINT
Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

3. REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE

(a) Remove the fuel suction tube assembly with pump and gauge Removal.

4. REMOVE FUEL SENDER GAUGE ASSEMBLY

(a) Disconnect the fuel sender gauge connector.

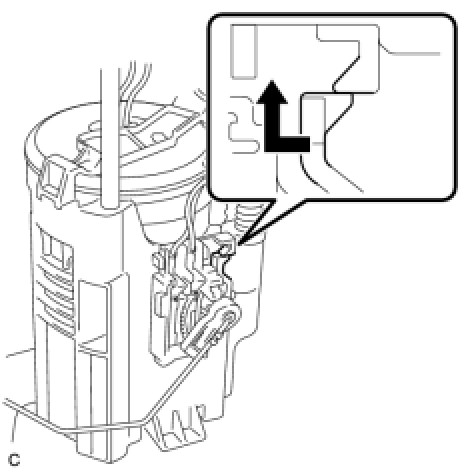

(b) Unlock the fuel sender gauge, and slide it to remove.
