Installation

BRAKE CONTROL: STEERING ANGLE SENSOR (w/ VSC): INSTALLATION

1. INSTALL STEERING ANGLE SENSOR

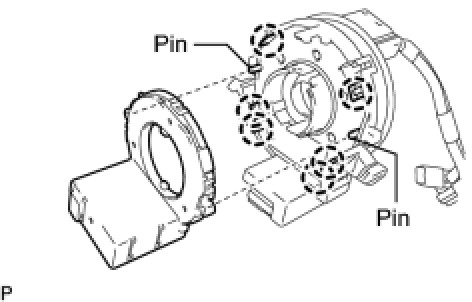

(a) Align the locating pins, engage the claws, and install the steering angle sensor to the spiral cable.





2. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR Installation

3. INSTALL STEERING COLUMN COVER Installation

4. ADJUST SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY Installation

6. INSPECT STEERING WHEEL CENTER POINT Installation

7. INSTALL STEERING PAD Installation

8. INSTALL NO. 2 STEERING WHEEL COVER LOWER Installation

9. INSTALL NO. 3 STEERING WHEEL COVER LOWER Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

11. INSPECT STEERING PAD Steering Pad

12. INSPECT SRS WARNING LIGHT

HINT
* for TMC Made Diagnosis System
* except TMC Made Diagnosis System
