Installation
SUPPLEMENTAL RESTRAINT SYSTEM: CENTER AIRBAG SENSOR ASSEMBLY: INSTALLATION
1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY
(a) Check that the ignition switch is off.
(b) Check that the battery negative (-) cable is disconnected.
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

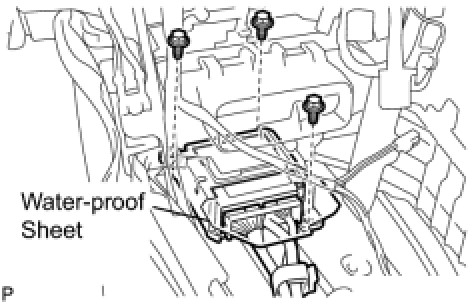

(c) Install the center airbag sensor assembly with the 3 bolts.
Torque : 17.5 Nm (179 kgf-cm, 13 ft-lbf)
NOTICE:
* If the center airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
* When installing the center airbag sensor assembly, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
(d) Check that there is no looseness in the installation parts of the center airbag sensor assembly.
(e) Connect the holder (with connectors).
(f) Check that the water-proof sheet is properly set.
2. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Air Conditioning System) Installation
3. INSTALL NO. 2 CONSOLE BOX INSERT FRONT Installation
4. INSTALL NO. 1 CONSOLE BOX INSERT FRONT Installation
5. INSTALL CONSOLE BOX ASSEMBLY Installation
6. INSTALL CONSOLE BOX CARPET Installation
7. INSTALL CONSOLE BOX POCKET Installation
8. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
for TMC made: Installation
for TMMK made: Installation
9. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Installation
10. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
11. INSTALL FRONT DOOR SCUFF PLATE RH Installation
12. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation
13. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
14. INSTALL FRONT DOOR SCUFF PLATE LH Installation
15. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
16. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) Installation
17. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) Installation
18. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle) Installation
19. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) Installation
20. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
21. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
22. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation
24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
25. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System for TMC made, Diagnosis System except TMC made).
