Removal

2AR-FE FUEL: FUEL PRESSURE REGULATOR: REMOVAL

1. REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE

(a) Remove the fuel suction tube assembly with pump and gauge Removal.

2. REMOVE FUEL SENDER GAUGE ASSEMBLY Removal

3. REMOVE NO. 1 FUEL TANK BAND BRACKET

(a) Disconnect the fuel pump harness connector from the fuel suction plate.





(b) Using needle nozzle pliers, remove the E-ring.





(c) Disengage the 4 claws of the No. 1 fuel suction support and remove the No. 1 fuel tank band bracket from the fuel suction plate with the fuel filter.





(d) Remove the spring from the fuel suction plate.

NOTICE:
Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube assembly with pump and gauge. Doing so will cause reassembly of the fuel suction tube assembly with pump and gauge to be impossible as the tube is welded to the plate.

4. REMOVE NO. 1 FUEL SUCTION SUPPORT

(a) Using a screwdriver with the tip taped, disengage the claw and remove the No. 1 fuel suction support.





5. REMOVE FUEL PUMP

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 5 claws and pull out the fuel pump from the fuel filter assembly.





NOTICE:
* Do not damage the fuel pump filter.
* Do not remove the suction filter.

(b) Remove the fuel pump harness connector.





(c) Remove the O-ring from the fuel pump.





6. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

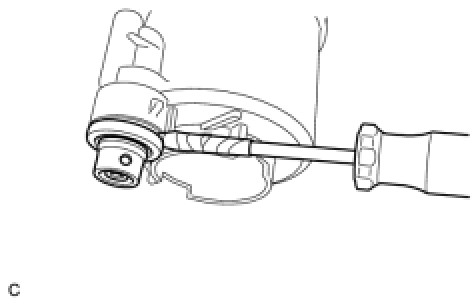

(a) Using a screwdriver with its tip wrapped in protective tape, remove the fuel pressure regulator from the fuel filter.





(b) Remove the 2 O-rings from the fuel pressure regulator.
