Removal

LIGHTING: TURN SIGNAL FLASHER ASSEMBLY: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal

4. REMOVE STEERING COLUMN COVER Removal

5. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Removal

6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System) Removal

7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System) Removal

8. REMOVE INSTRUMENT CLUSTER FINISH PANEL NO.1 Removal

9. REMOVE COMBINATION METER ASSEMBLY Removal

10. REMOVE TURN SIGNAL FLASHER ASSEMBLY

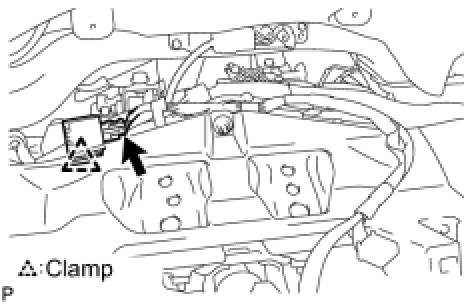

(a) Disconnect the connector.





(b) Remove the clamp and the turn signal flasher assembly.
