Removal

LIGHTING: FOG LIGHT ASSEMBLY: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Removal

2. REMOVE FRONT BUMPER ASSEMBLY Removal

3. REMOVE FOG LIGHT ASSEMBLY

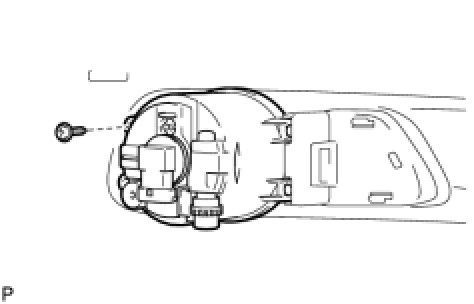

(a) Remove the screw and the fog light assembly.
