LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: INSTALLATION

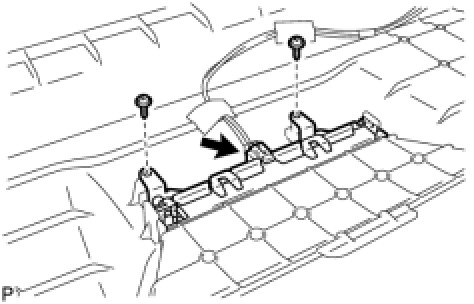

1. INSTALL CENTER STOP LIGHT SET

(a) Connect the connector.





(b) Install the center stop light set with the 2 screws.

Torque : 1.6 Nm (16 kgf-cm, 14 in-lbf)

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (for Reclining Seat Type) Installation

4. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Installation

5. INSTALL REAR SEAT SHOULDER BELT COVER Installation

6. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Installation

7. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Installation

8. INSTALL ROOF SIDE INNER GARNISH LH Installation

9. INSTALL ROOF SIDE INNER GARNISH RH Installation

10. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMC Made) Installation

11. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMMK Made) Installation

12. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Installation

13. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (for Reclining Seat Type) Reassembly

14. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH (for Reclining Seat Type)

15. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

16. INSTALL REAR DOOR SCUFF PLATE LH Installation

17. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

18. INSTALL REAR DOOR SCUFF PLATE RH Installation

19. INSTALL CENTER SEAT BACK ASSEMBLY (for Reclining Seat Type) Installation

20. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Reclining Seat Type) Installation

21. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type) Installation

22. INSTALL REAR SEAT BACK COVER (for Reclining Seat Type)

23. INSTALL REAR SIDE SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) Installation

24. INSTALL REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type)

25. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) Installation

26. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Installation

27. INSTALL REAR SEAT BACK ASSEMBLY (for Fixed Seat Type) Installation

28. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

29. INSTALL REAR SEAT HEADREST ASSEMBLY

30. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
