Installation

PARKING BRAKE: PARKING BRAKE PEDAL: INSTALLATION

1. INSTALL PARKING BRAKE PEDAL ASSEMBLY

(a) Install the parking brake pedal assembly with the bolt and 2 nuts.

Torque : 39 Nm (398 kgf-cm, 29 ft-lbf)





(b) Connect the parking brake switch connector.

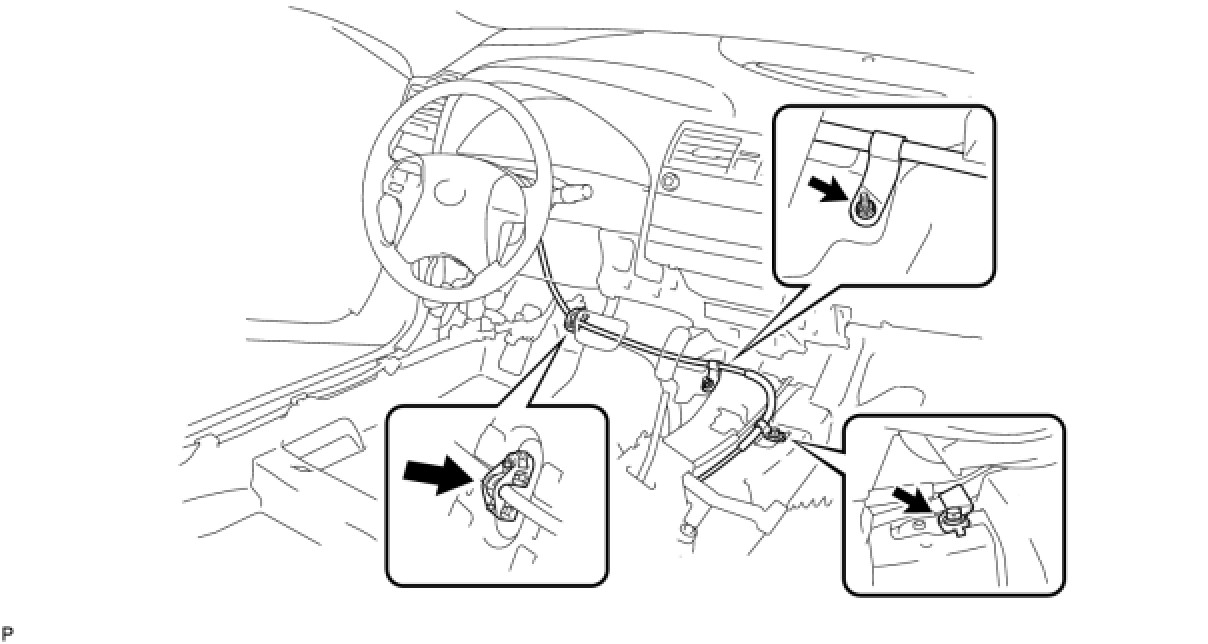

(c) Install the No. 1 parking brake cable assembly to the body with the bolt, the nut, and a new No. 1 parking brake cable clamp.





Bolt - Torque : 15 Nm (153 kgf-cm, 11 ft-lbf)

Nut - Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

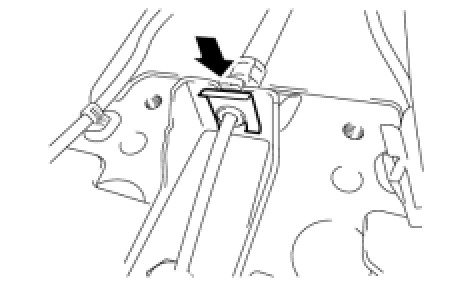

(d) Using a brass bar and a hammer, install the clip to the No. 1 parking brake cable assembly.





2. CONNECT NO. 4 PARKING BRAKE CABLE ASSEMBLY

(a) Connect the No. 4 parking brake cable assembly to the No. 1 parking brake cable assembly.

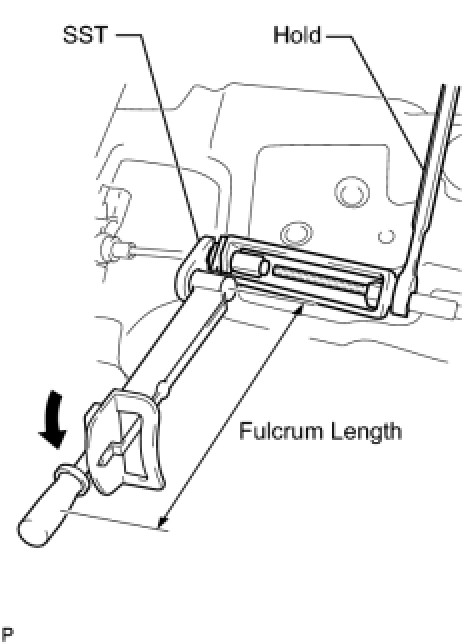

(b) Using SST and a wrench, hold the lock nut of the No. 1 parking brake cable assembly and tighten the turnbuckle of the No. 4 parking brake cable assembly.

SST : 09023-00101

without SST - Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

with SST - Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)





NOTICE:
* Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
* This torque is effective when SST is parallel to a torque wrench.

3. INSTALL CENTER AIRBAG SENSOR ASSEMBLY Installation

4. INSTALL FLOOR SHIFT LEVER ASSEMBLY

(a) Install the floor shift lever assembly with the 4 bolts.





Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

5. INSTALL YAW RATE AND ACCELERATION SENSOR (w/ VSC) Installation

6. INSTALL FLOOR CARPET BRACKET LH

7. INSTALL FLOOR CARPET BRACKET RH

8. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Air Conditioning System) Installation

9. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made) Installation

10. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made) Installation

11. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made) Installation

12. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made) Installation

13. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made) Installation

14. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made) Installation

15. INSTALL CONSOLE BOX CARPET Installation

16. INSTALL CONSOLE BOX POCKET Installation

17. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Installation

18. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Installation

19. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation

20. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY Installation

21. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

22. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

24. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Installation

25. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Installation

26. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Installation

27. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

28. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Installation

29. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Installation

30. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

31. INSTALL FRONT DOOR SCUFF PLATE LH Installation

32. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

33. INSTALL FRONT DOOR SCUFF PLATE RH Installation

34. INSPECT PARKING BRAKE PEDAL TRAVEL Adjustments

35. ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments

36. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

37. INSPECT SENSOR SIGNAL Installation
