Problem Symptoms Table

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for ADVICS Made): PROBLEM SYMPTOMS TABLE

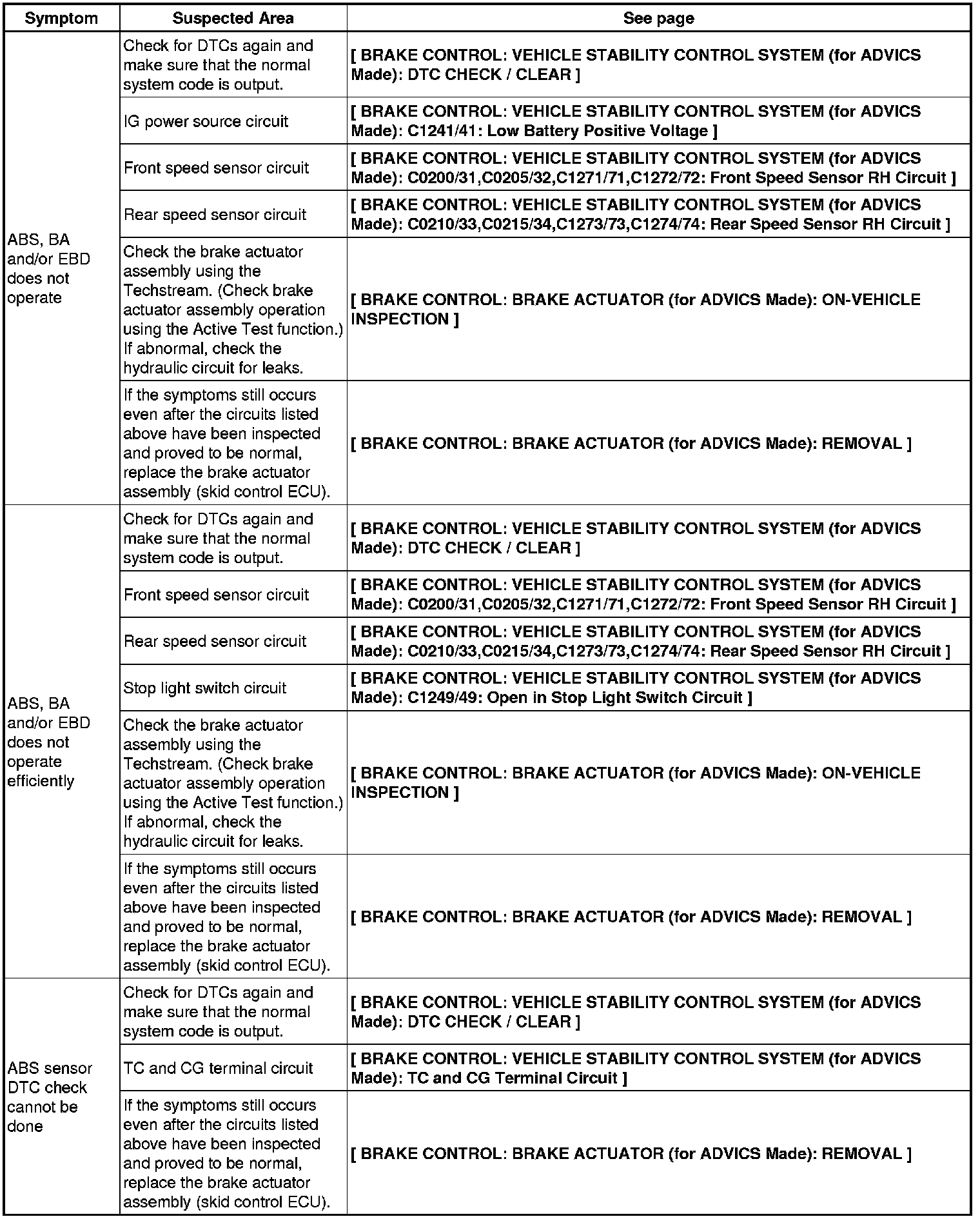

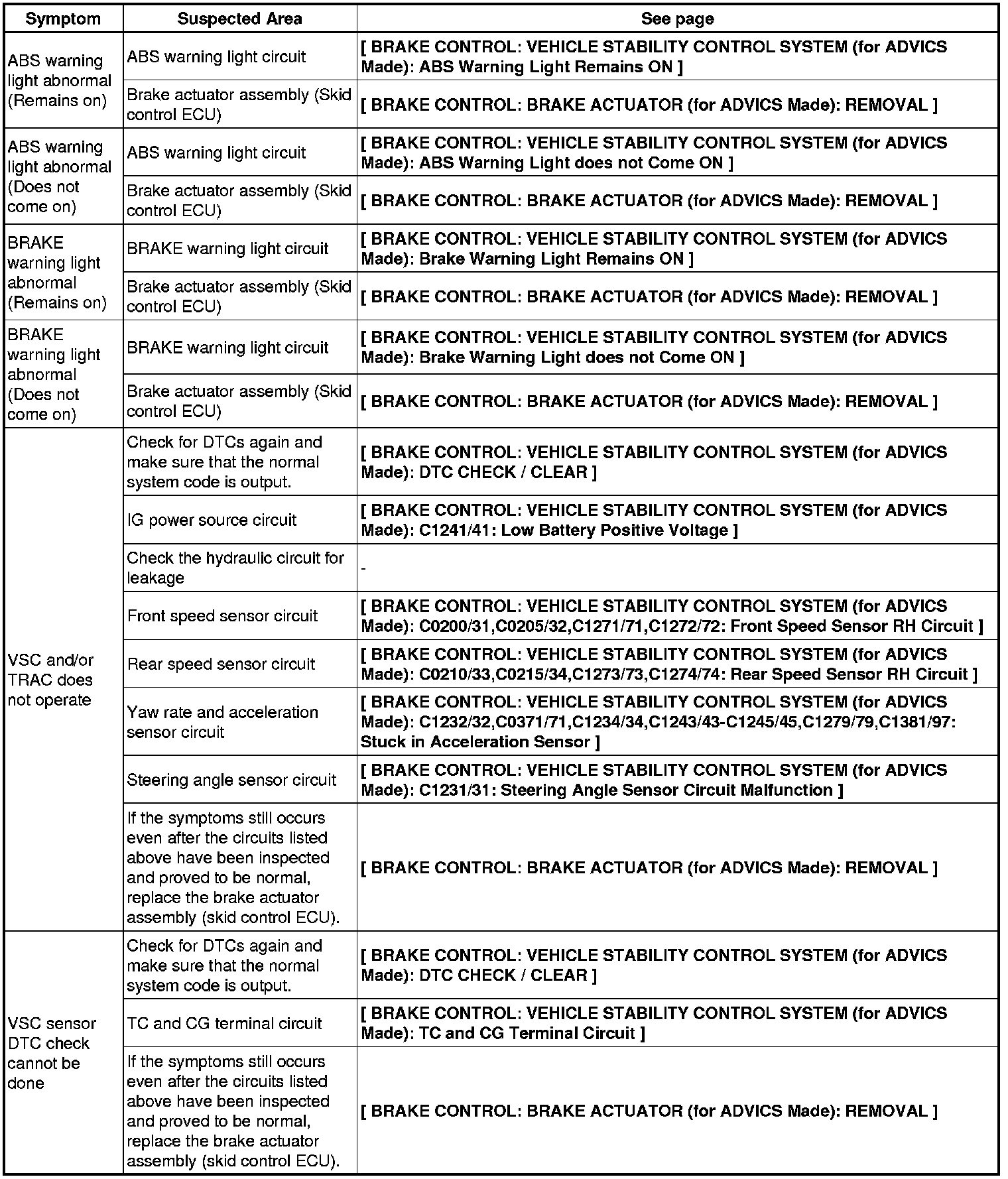

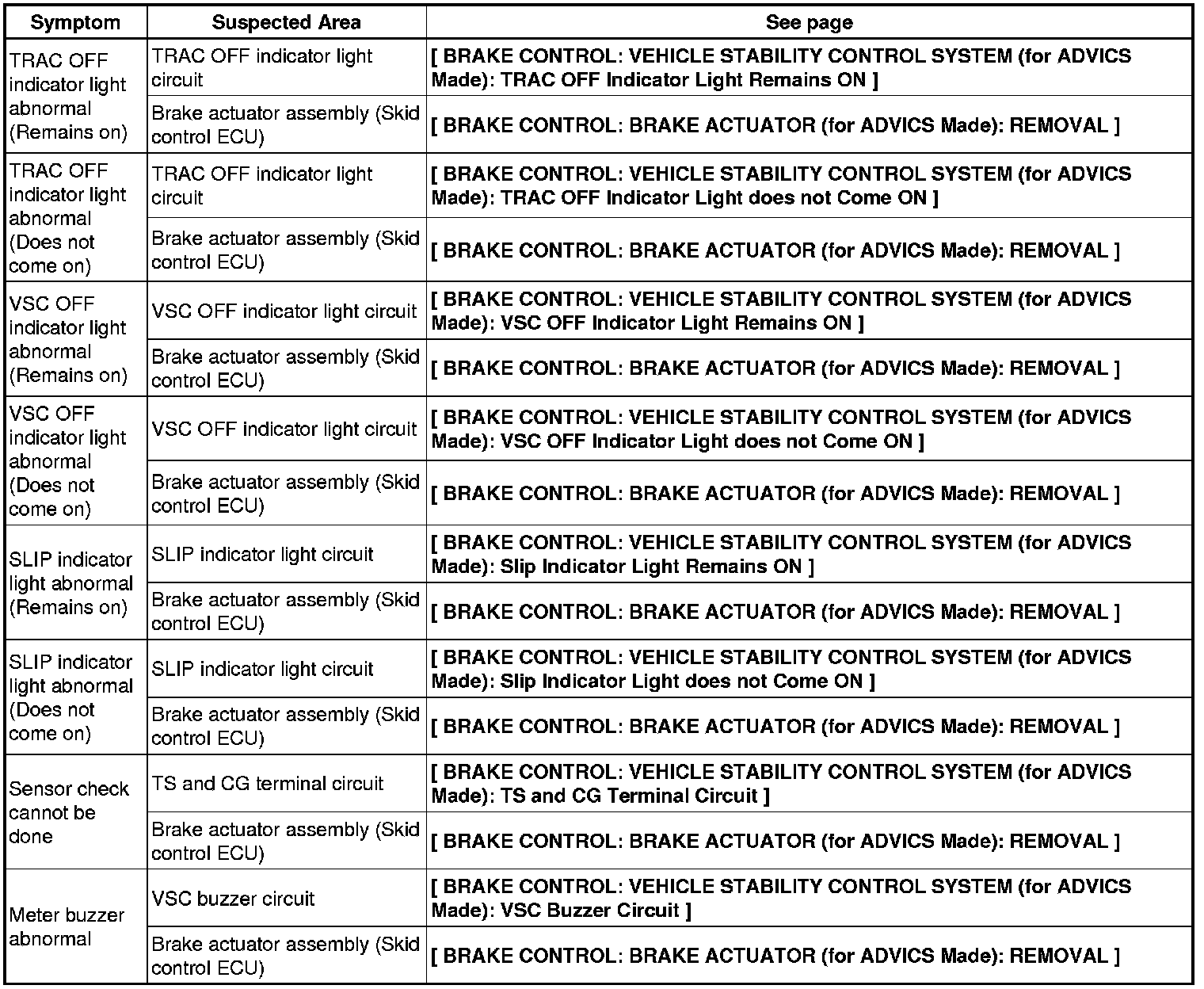

If there are no DTCs output and the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.

HINT
* Inspect the fuses and relays related to this system before investigating the suspected areas as shown in the table below.
* Inspect each malfunction circuit in numerical order for the corresponding symptom.

Vehicle Stability Control System
