VSC Buzzer Circuit

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for ADVICS Made): VSC Buzzer Circuit
- VSC Buzzer Circuit

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

The combination meter has a built-in buzzer. The meter buzzer sounds when yaw rate sensor check is completed.

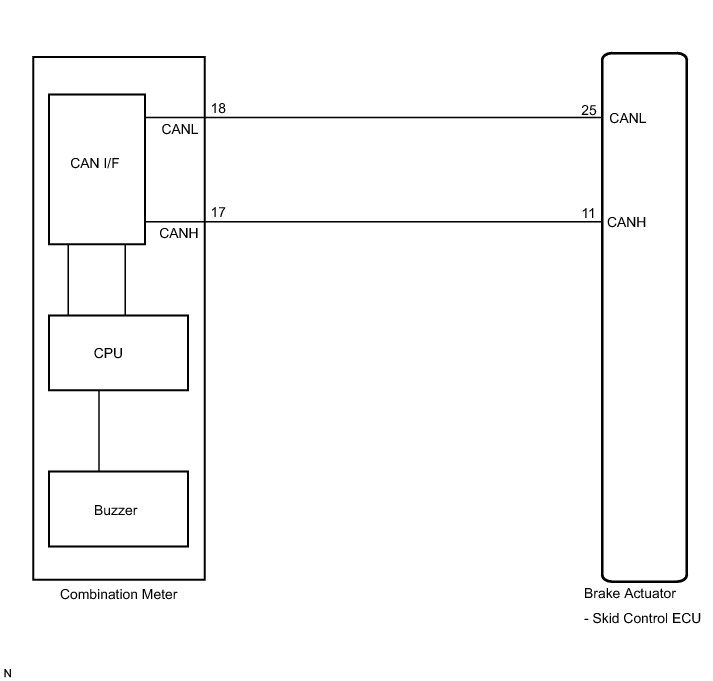

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if a CAN communication system DTC is output Diagnosis System.

Result:





B -- INSPECT CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. INSPECT COMBINATION METER ASSEMBLY

(a) Turn the ignition switch off.

(b) Check the combination meter On-Vehicle inspection.

OK:

The combination meter is normal.

HINT
If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY
