Installation

DOOR LOCK: UNLOCK WARNING SWITCH: INSTALLATION

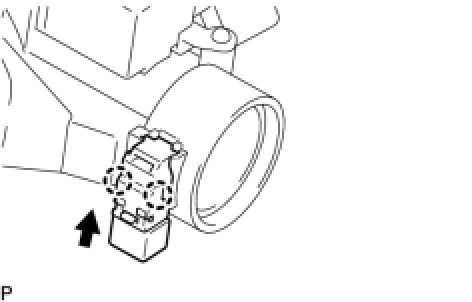

1. INSTALL UNLOCK WARNING SWITCH ASSEMBLY

(a) Engage the 2 claws to install the unlock warning switch assembly to the steering lock sub-assembly.





2. INSTALL IGNITION SWITCH LOCK CYLINDER ASSEMBLY Reassembly

3. INSPECT STEERING LOCK OPERATION

4. INSTALL STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY Reassembly

5. INSTALL TRANSPONDER KEY AMPLIFIER Reassembly

6. INSTALL STEERING COLUMN ASSEMBLY Installation

7. INSTALL NO. 1 AIR DUCT Installation

8. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

9. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY Installation

10. INSTALL STEERING COLUMN COVER Installation

11. ADJUST SPIRAL CABLE SUB-ASSEMBLY Installation

12. INSTALL STEERING WHEEL ASSEMBLY Installation

13. INSPECT STEERING WHEEL CENTER POINT

14. INSPECT STEERING PAD Installation

15. INSTALL STEERING PAD Installation

16. INSTALL LOWER NO. 2 STEERING WHEEL COVER

17. INSTALL LOWER NO. 3 STEERING WHEEL COVER

18. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

19. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation

20. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation

21. INSTALL FRONT DOOR SCUFF PLATE LH Installation

22. INSTALL FRONT WHEEL LH Installation

23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

24. INSPECT SRS WARNING LIGHT

* for TMC Made: Diagnosis System

* except TMC Made: Diagnosis System
