Reassembly

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: REASSEMBLY

1. INSTALL NO. 1 INSTRUMENT PANEL PIN (for TMMK Made)

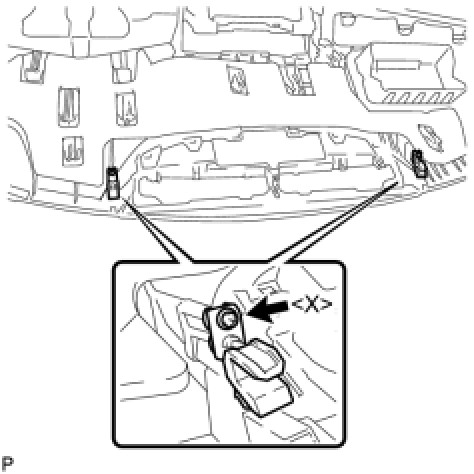

(a) Install the 2 No. 1 instrument panel pins with the 2 screws [X].





2. INSTALL PLASMACLUSTER (w/ Plasmacluster) Installation

3. INSTALL GLOVE BOX LIGHT ASSEMBLY

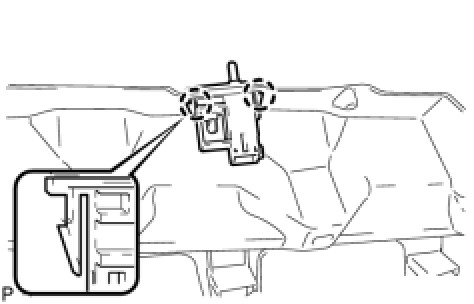

(a) Engage the 2 claws and install the glove box light.





4. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY Installation

5. INSTALL NAVIGATION ANTENNA ASSEMBLY Installation

6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY Installation

7. INSTALL NO. 2 HEATER TO REGISTER DUCT (for TMC Made)

(a) Install the No. 2 heater to register duct with the 2 screws [F].





8. INSTALL NO. 2 HEATER TO REGISTER DUCT (for TMMK Made)

(a) Install the No. 2 heater to register duct with the 2 screws [O] or [X].





9. INSTALL NO. 3 HEATER TO REGISTER DUCT (for TMC Made)

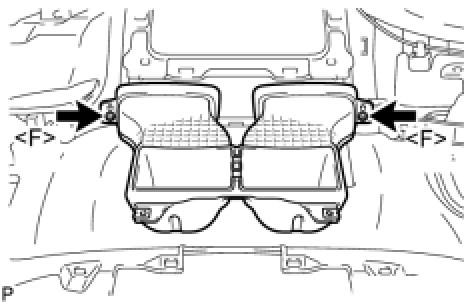

(a) Install the No. 3 heater to register duct with the 3 screws [F].





10. INSTALL NO. 3 HEATER TO REGISTER DUCT (for TMMK Made)

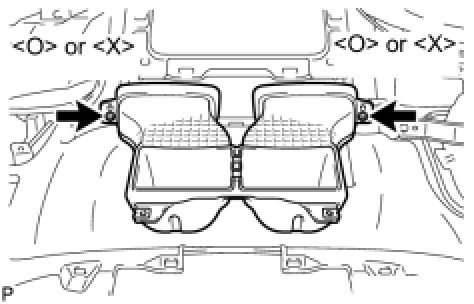

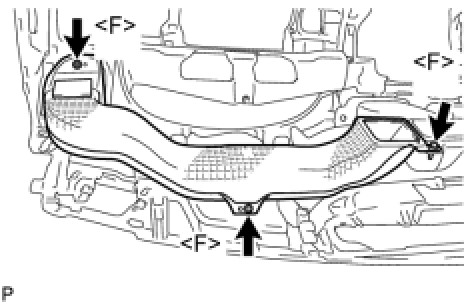

(a) Install the No. 3 heater to register duct with the 3 screws [O] or [X].





11. INSTALL NO. 1 HEATER TO REGISTER DUCT (for TMC Made)

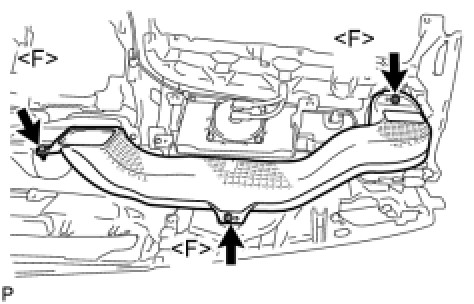

(a) Install the No. 1 heater to register duct with the 3 screws [F].





12. INSTALL NO. 1 HEATER TO REGISTER DUCT (for TMMK Made)

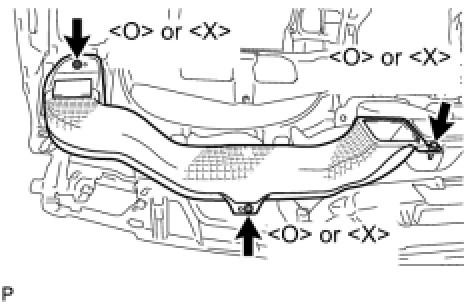

(a) Install the No. 1 heater to register duct with the 3 screws [O] or [X].





13. INSTALL DEFROSTER NOZZLE ASSEMBLY (for TMC Made)

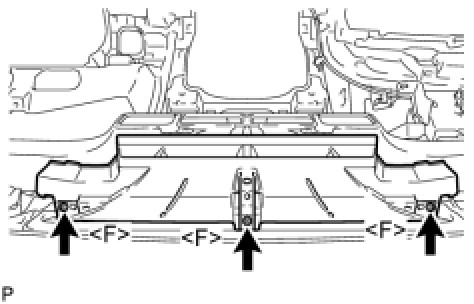

(a) Install the defroster nozzle assembly with the 3 screws [F].





14. INSTALL DEFROSTER NOZZLE ASSEMBLY (for TMMK Made)

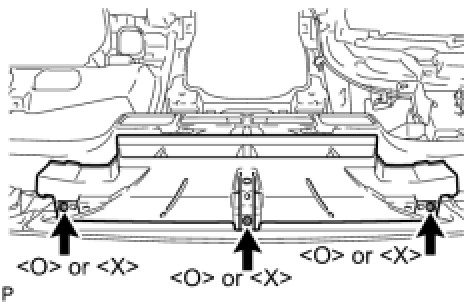

(a) Install the defroster nozzle assembly with the 3 screws [O] or [X].





15. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMC Made)

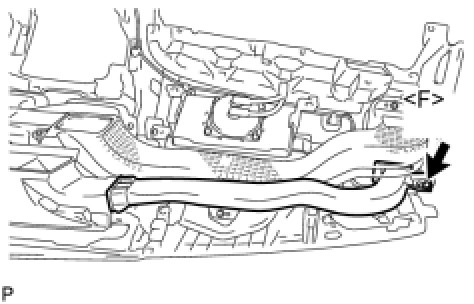

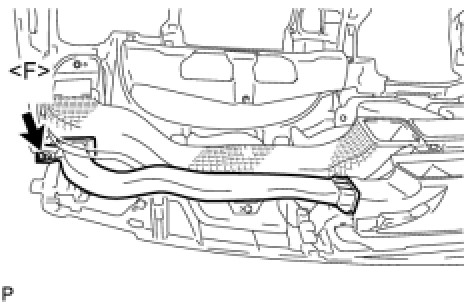

(a) Install the side No. 2 defroster nozzle duct with the screw [F].





16. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT (for TMMK Made)

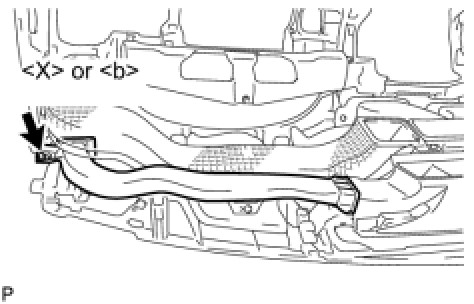

(a) Install the side No. 2 defroster nozzle duct with the screw [X] or [b].





17. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMC Made)

(a) Install the side No. 1 defroster nozzle duct with the screw [F].





18. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT (for TMMK Made)

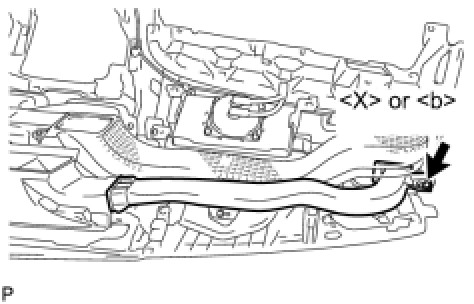

(a) Install the side No. 1 defroster nozzle duct with the screw [X] or [b].
