P0128

2AR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0128: Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)
P0128 - Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)

DESCRIPTION

HINT

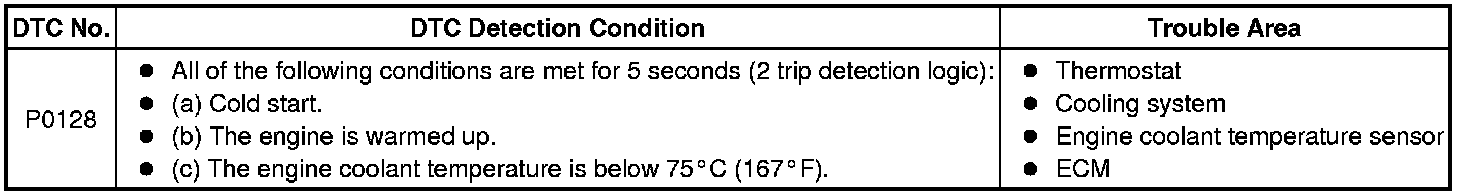

This DTC relates to the thermostat.

This DTC is stored when the engine coolant temperature does not reach 75°C (167°F) despite sufficient engine warm-up time having elapsed.





MONITOR DESCRIPTION

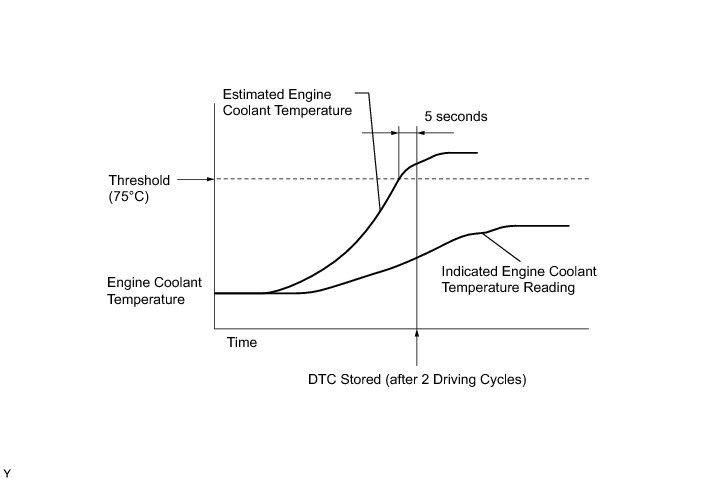

The ECM estimates the engine coolant temperature based on the starting temperature, engine loads, and engine speeds. The ECM then compares the estimated temperature with the actual engine coolant temperature. When the estimated engine coolant temperature reaches 75°C (167°F), the ECM checks the actual ECT. If the actual engine coolant temperature is less than 75°C (167°F), the ECM interprets this as a malfunction in the thermostat or the engine cooling system and stores the DTC.

MONITOR STRATEGY

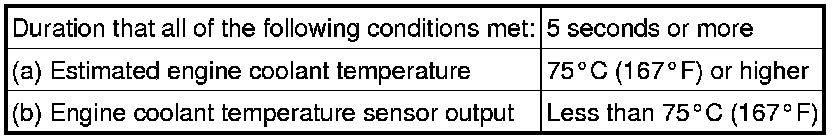

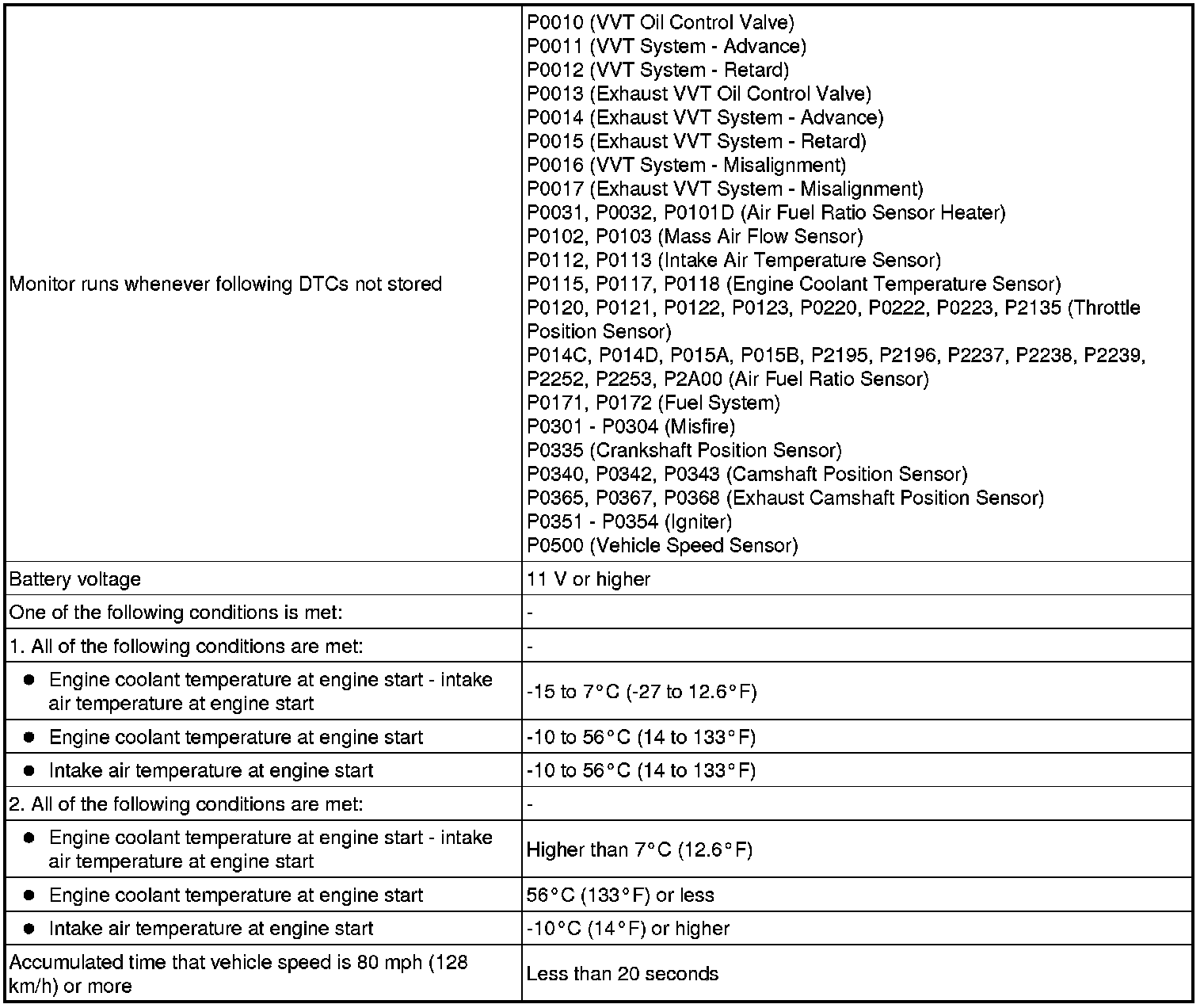

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

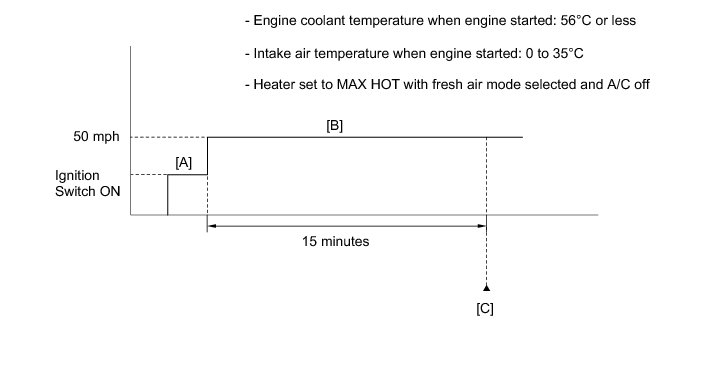

CONFIRMATION DRIVING PATTERN





1. Stop the engine and allow it to cool down.

2. Connect the Techstream to the DLC3.

3. Turn the ignition switch to ON and turn the Techstream on [A].

4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

5. Enter the following menus: Powertrain / Engine / Data List / All Data / Coolant Temp and Intake Air.

6. Check if "Coolant Temp" is 56°C (133°F) or less and "Intake Air" is between 0 and 35°C (32 and 95°F).

7. Set the heater to MAX HOT with fresh air mode selected and turn the A/C off.

8. Start the engine and drive the vehicle at 50 mph (80 km/h) for 15 minutes [B].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
* Data can be captured relatively easily by using the snapshot function in the Data List.
* Enter the following menus: Data List / Function / Snap-shot configuration / Record time / 5 min.
* Data capture can be started by using the target point. For example, setting the target point to an engine speed of 4000 rpm and then racing the engine, etc. to raise the engine speed to a speed of 4000 rpm or more will cause data capture to start.

9. After driving the vehicle at 50 mph (80 kmh) and "Coolant Temp" stabilizes, check that "Coolant Temp" is 75°C (167°F) or higher [C].

HINT
If "Coolant Temp" is below 75°C (167°F) while driving the vehicle at 50 mph (80 km/h), inspect the cooling system and thermostat.

INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0128)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

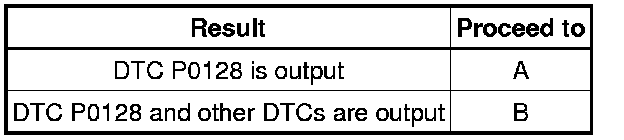

Result:





HINT
If any DTCs other than P0128 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. CHECK COOLING SYSTEM

(a) Check for defects in the cooling system that might cause the system to be too cold, such as abnormal cooling fan operation or any modifications.

NG -- REPAIR OR REPLACE COOLING SYSTEM
OK -- Continue to next step.

3. INSPECT THERMOSTAT

(a) Remove the thermostat Removal.

(b) Measure the valve opening temperature of the thermostat.

Standard Value:

80 to 84°C (176 to 183°F)

HINT
In addition to the above check, confirm that the valve is completely closed when the temperature is below the standard.

(c) Reinstall the thermostat Installation.

NG -- REPLACE THERMOSTAT Removal

OK -- REPLACE ECM Removal
