Vehicle Stability Control System (For BOSCH Made)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): C1241/41: Low Battery Positive Voltage or Abnormally High Battery Positive Voltage
C1241/41 - Low Battery Positive Voltage or Abnormally High Battery Positive Voltage

DESCRIPTION

If a malfunction is detected in the power supply circuit of the brake actuator assembly (skid control ECU), the skid control ECU (housed in the actuator assembly) stores this DTC and the fail-safe function prohibits ABS operation.

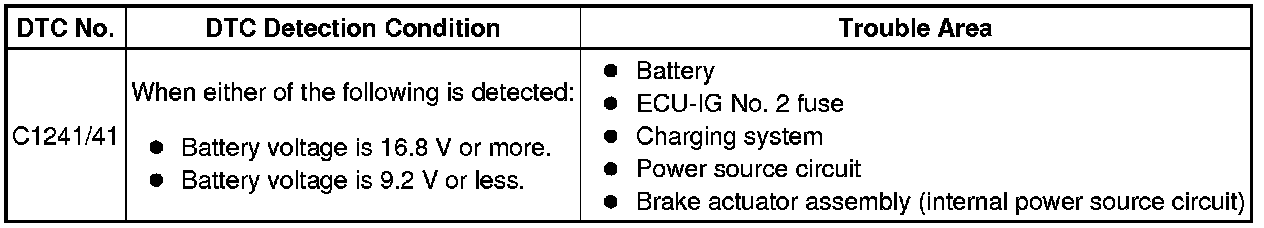

This DTC is output when the IG1 terminal voltage deviates from the normal condition due to a malfunction in the power supply or charging circuit such as the battery or alternator circuit.

This DTC is cancelled when the IG1 terminal voltage returns to normal (only when the voltage returns to normal from a voltage lower than the specified value).

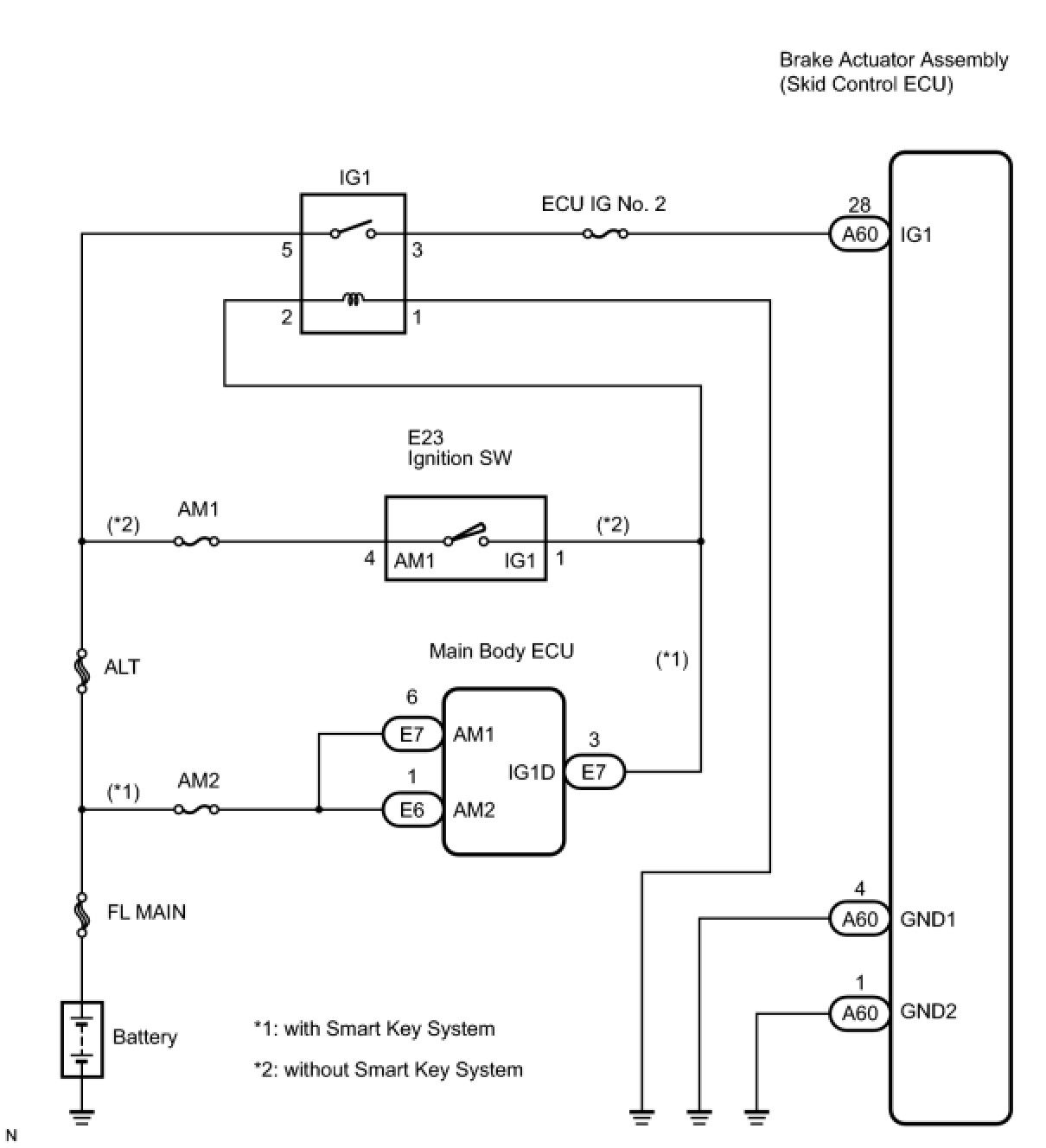

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU IG NO. 2 FUSE)

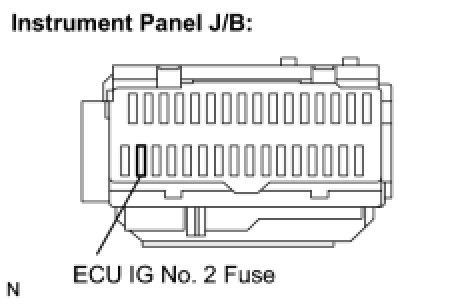

(a) Remove the ECU IG No. 2 fuse from the instrument panel J/B.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Install the fuse.

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT BATTERY

(a) Check the battery voltage.

Standard voltage:

11 to 14 V

NG -- INSPECT CHARGING SYSTEM
OK -- Continue to next step.

3. INSPECT SKID CONTROL ECU (IG1 TERMINAL VOLTAGE)

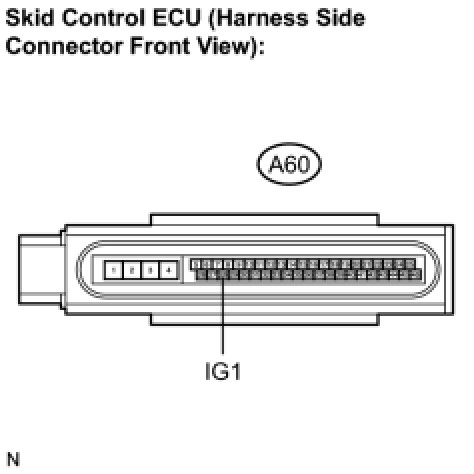

(a) Disconnect the skid control ECU connector.





(b) Turn the ignition switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)
OK -- Continue to next step.

4. INSPECT SKID CONTROL ECU (GND TERMINAL CONTINUITY)

(a) Measure the resistance according to the value(s) in the table below.

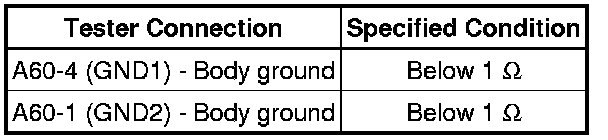

Standard resistance:





(b) Connect the connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)
OK -- Continue to next step.

5. RECONFIRM DTC

(a) Clear the DTC Vehicle Stability Control System (for BOSCH Made).

(b) Start the engine.

(c) Check if the same DTC is recorded Vehicle Stability Control System (for BOSCH Made).

HINT
Reinstall the sensors, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

Result:





C -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

B -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

A -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Diagnosis System
