Problem Symptoms Table (to 12/2010)

AXLE: AXLE SYSTEM: PROBLEM SYMPTOMS TABLE

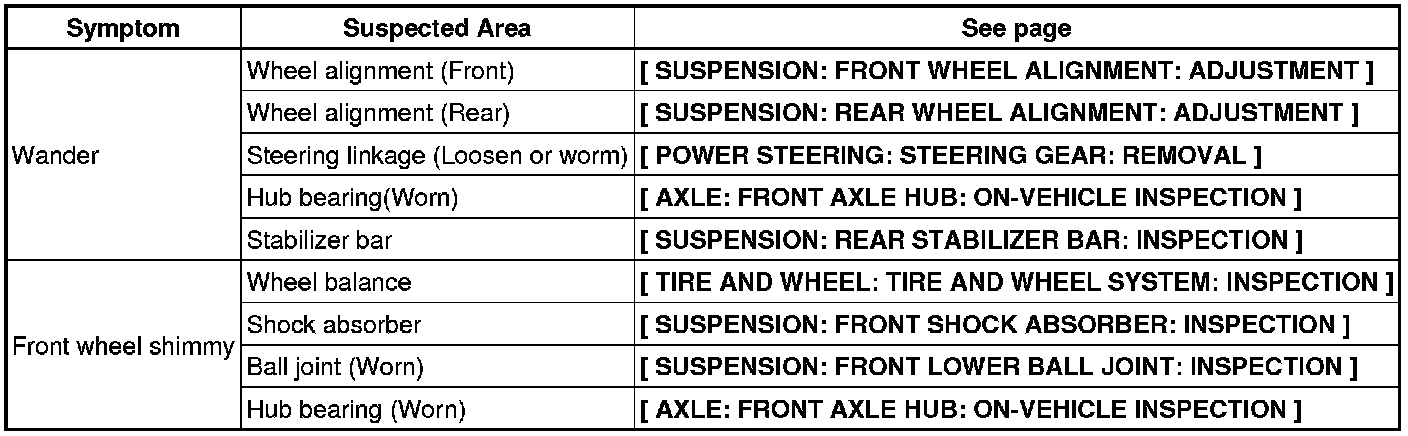

Use the table below to help find the cause of the problem. The causes of the problem are listed in order of probability in the "Suspected Area" column. Check each part in order. If necessary, replace these parts.

Axle System
