Problem Symptoms Table (to 12/2010)

CRUISE CONTROL: CRUISE CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

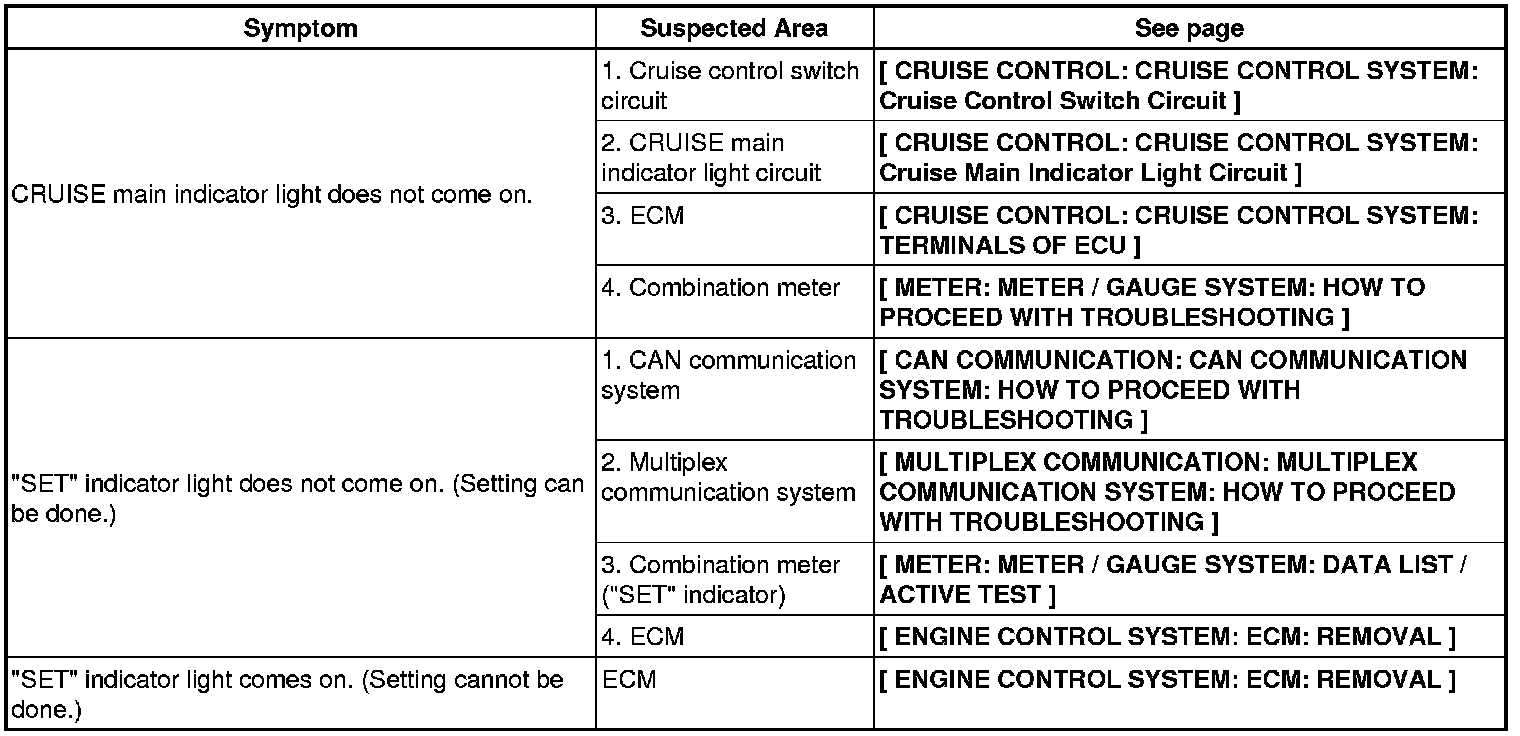

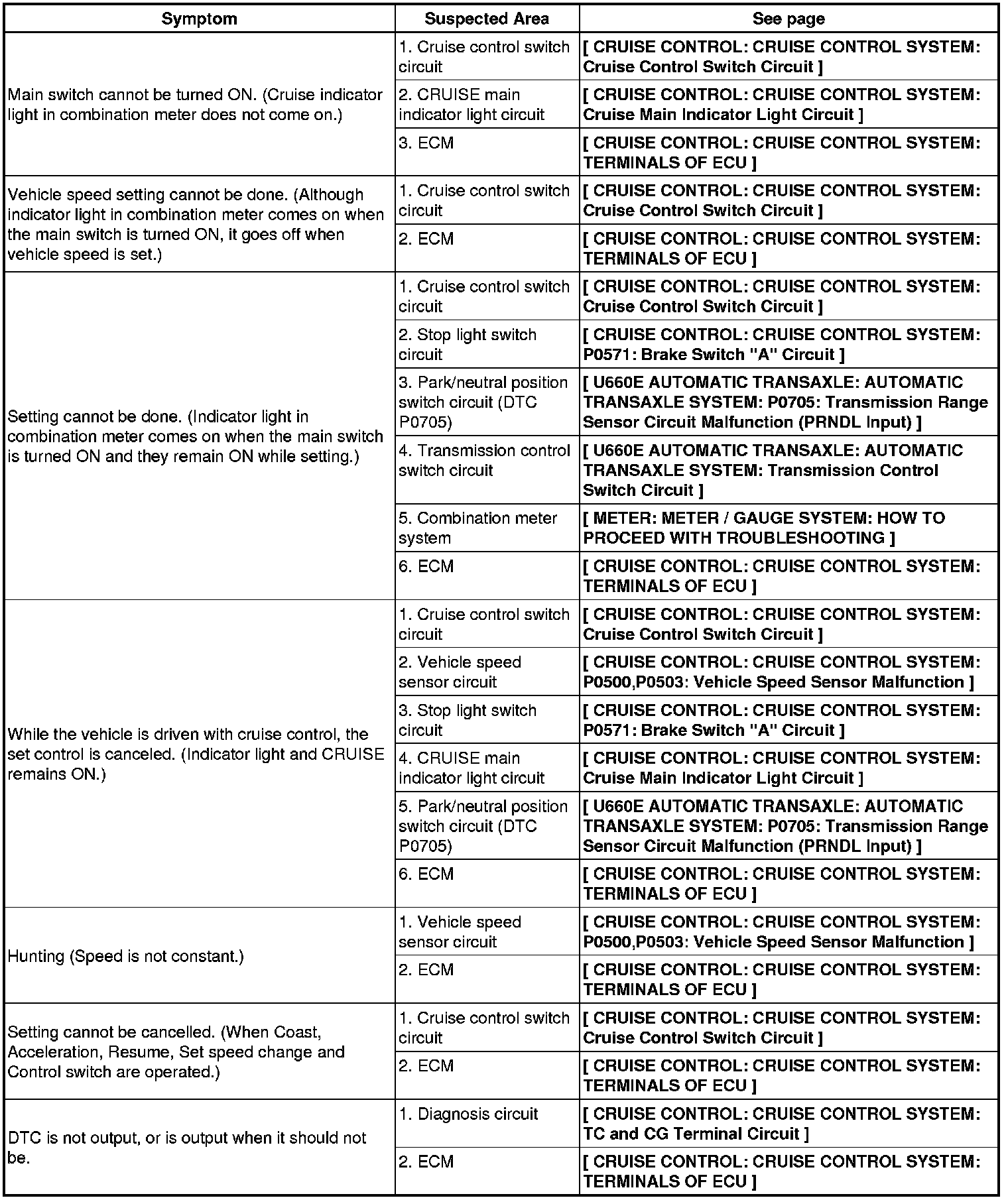

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.

HINT
Inspect the "Fuse" and "Relay" before confirming the suspected areas as shown in the chart below. Inspect each malfunction circuit in numerical order for the corresponding symptom.

CRUISE CONTROL SYSTEM
