Problem Symptoms Table (to 12/2010)

THEFT DETERRENT: THEFT DETERRENT SYSTEM: PROBLEM SYMPTOMS TABLE

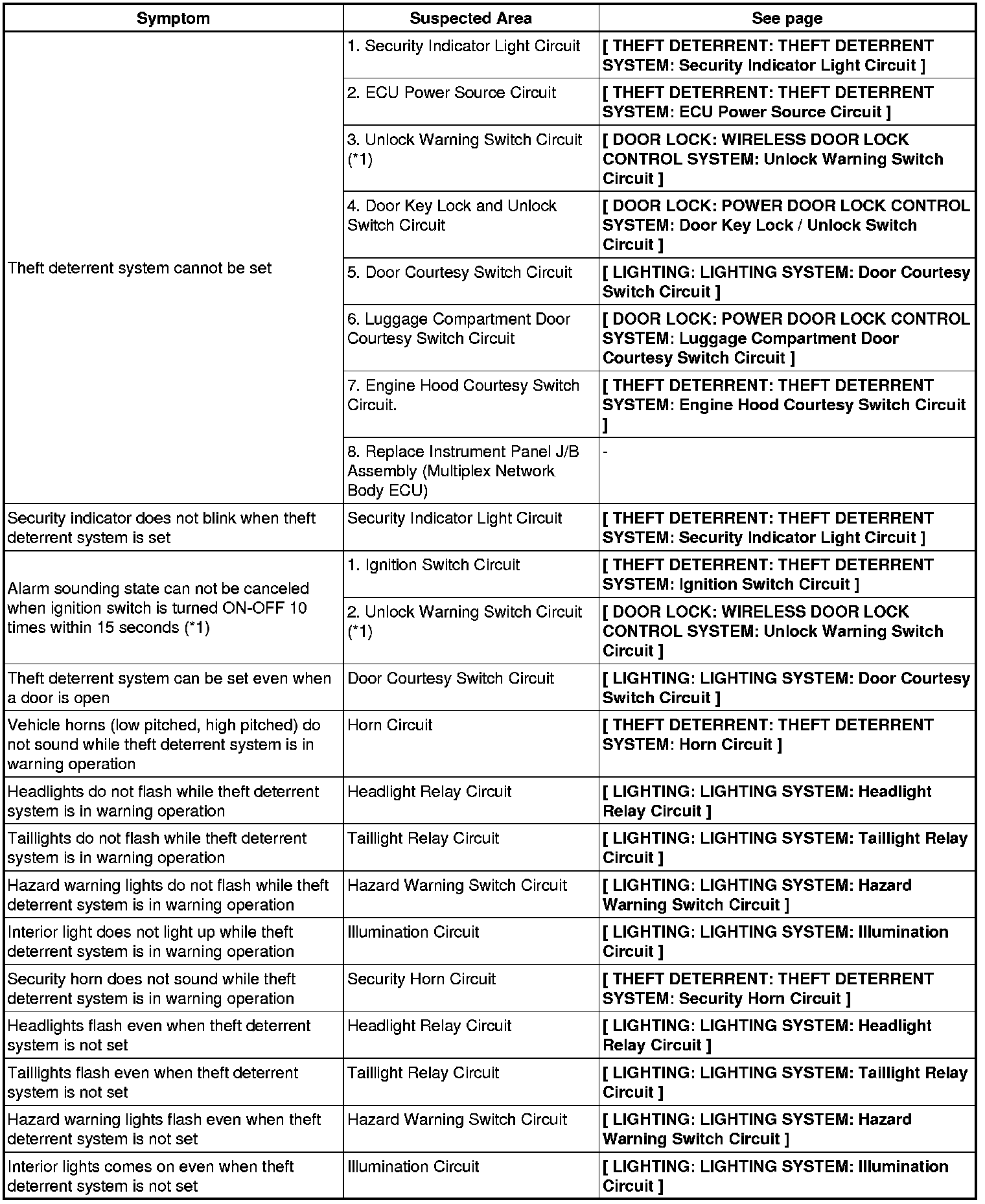

Proceed to the reference page shown in the table below for each malfunction symptom and troubleshoot each circuit.

HINT
Troubleshooting of the theft deterrent system is based on the premise that the smart key system, the door lock control system and the wireless door lock control system are operating normally. Therefore, before troubleshooting the theft deterrent system, first make certain that the above 3 systems are operating normally.

THEFT DETERRENT SYSTEM









HINT
* *1: without Smart Key System

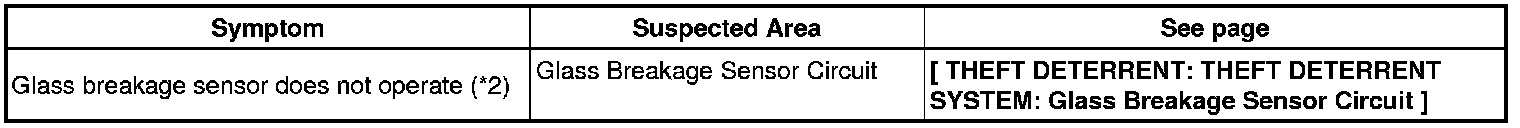

* *2: with Glass Breakage Sensor
