Service Data








SERVICE SPECIFICATIONS: U340E AUTOMATIC TRANSAXLE: SERVICE DATA

SERVICE DATA

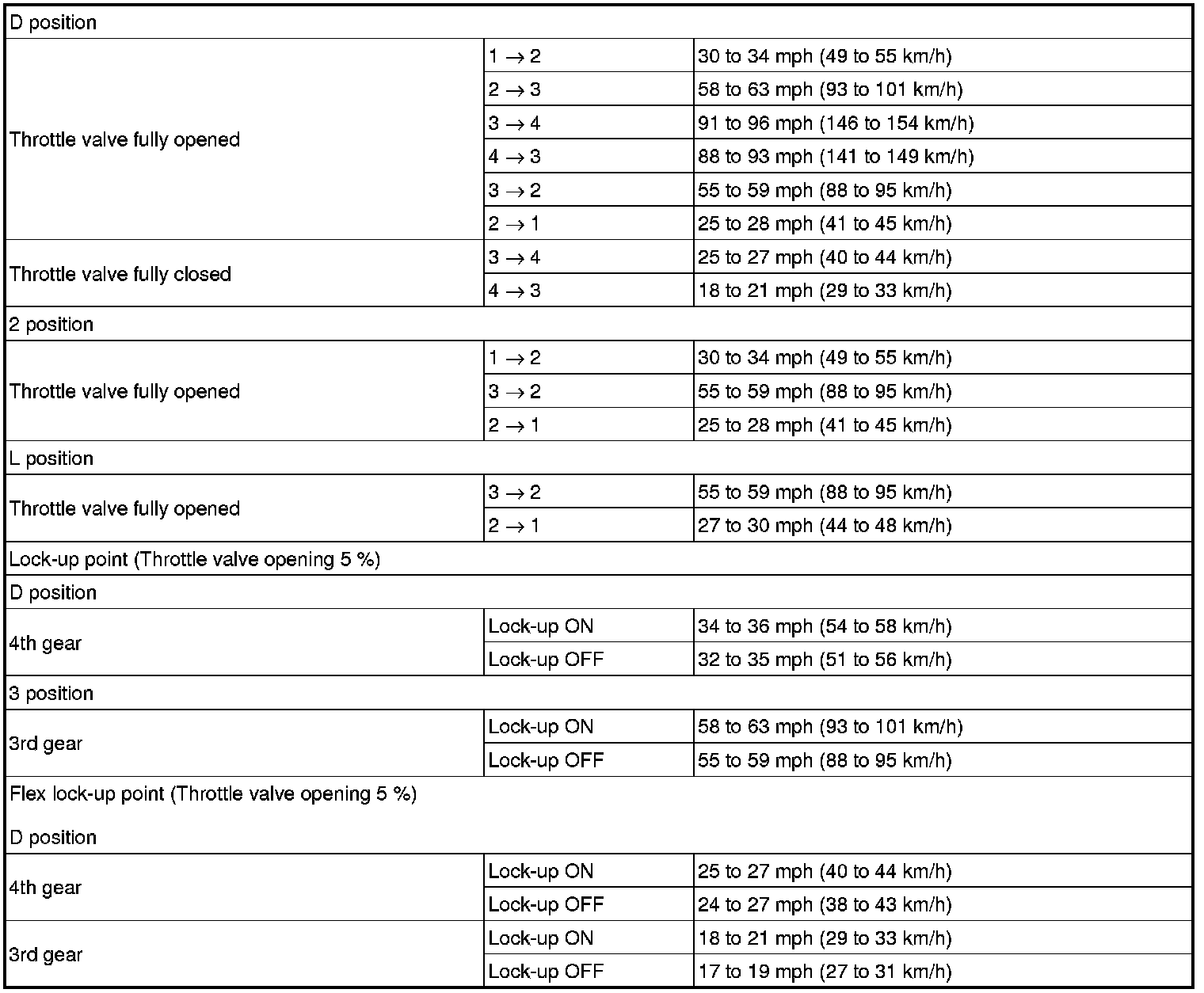

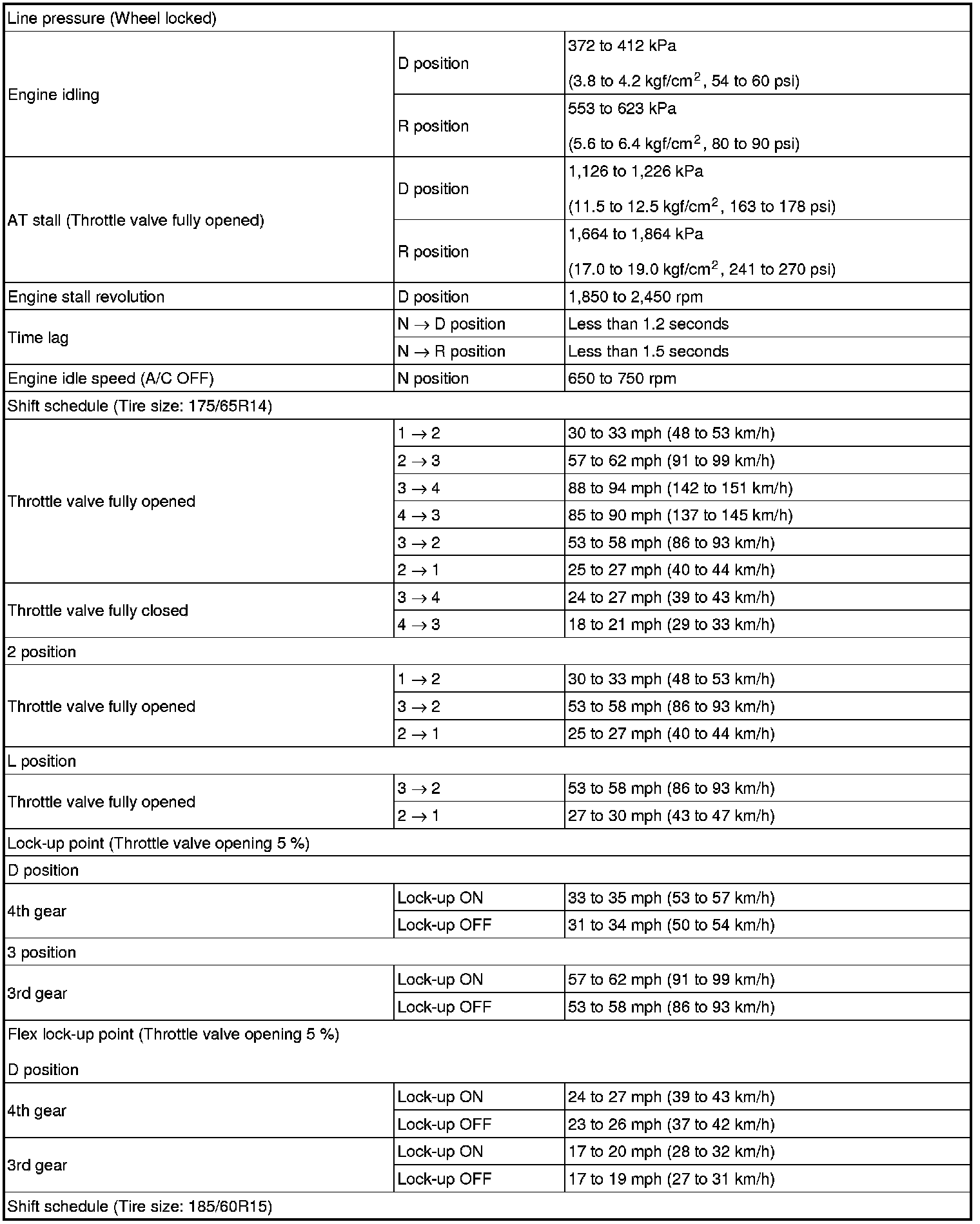

Automatic Transaxle System

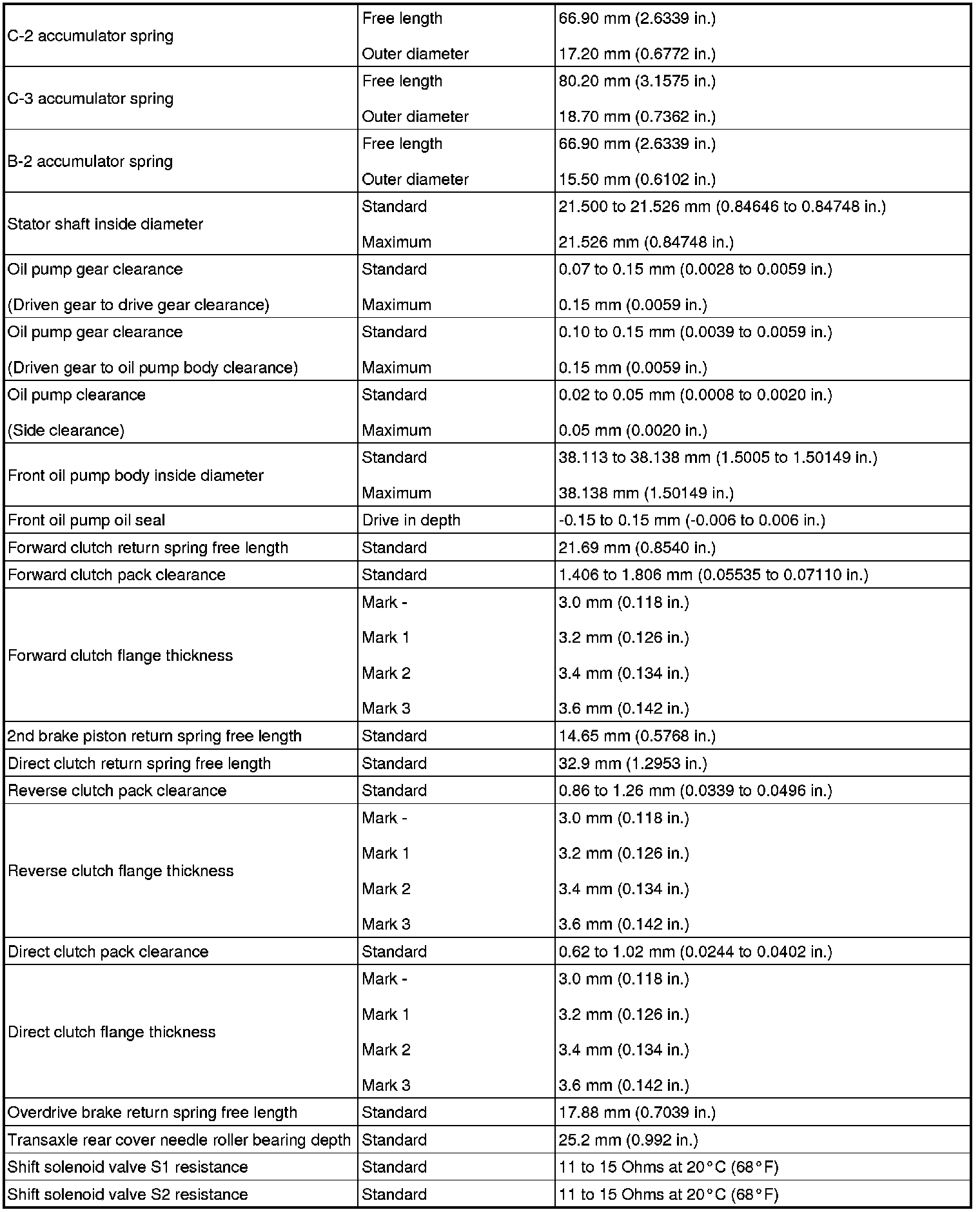

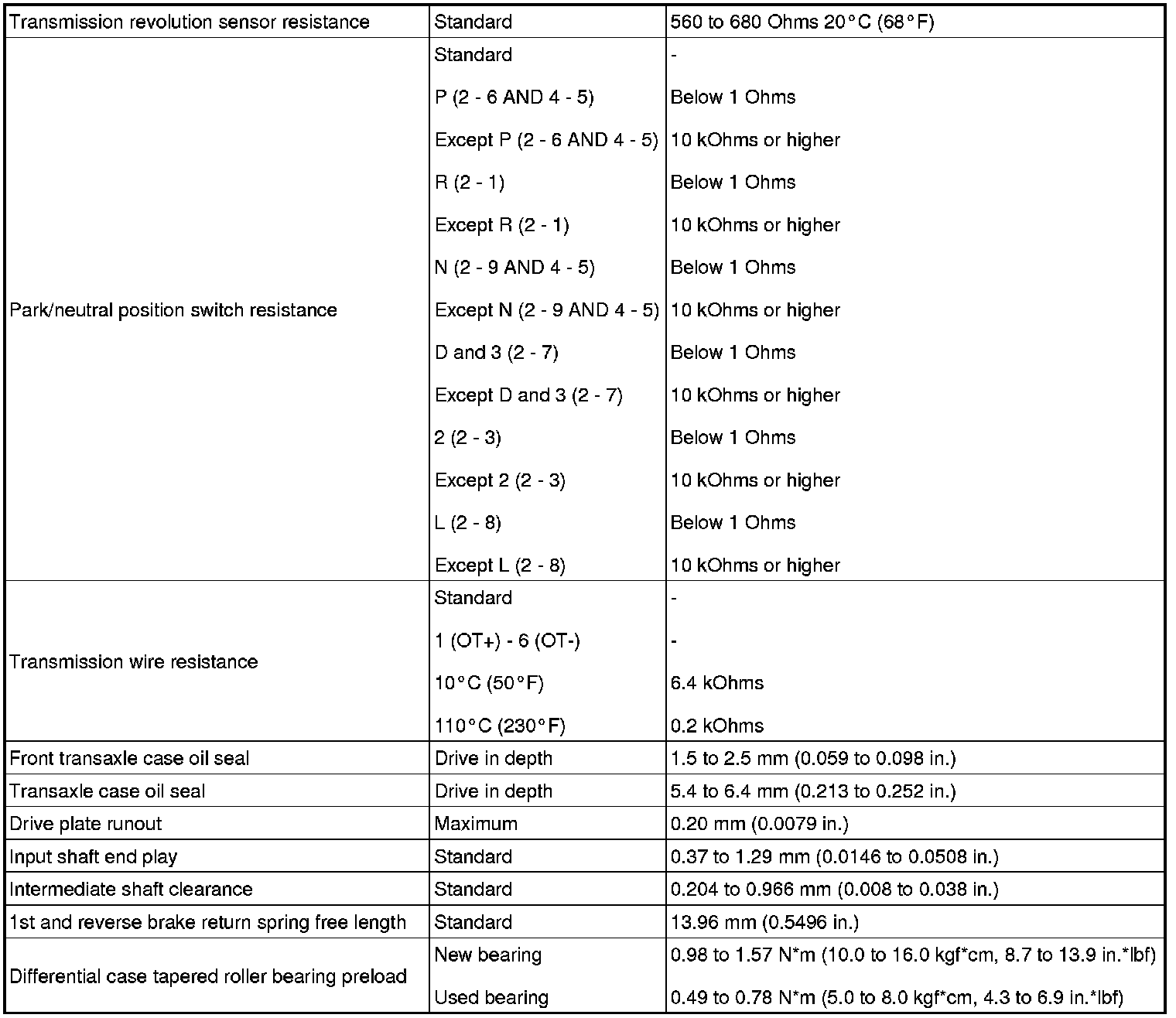

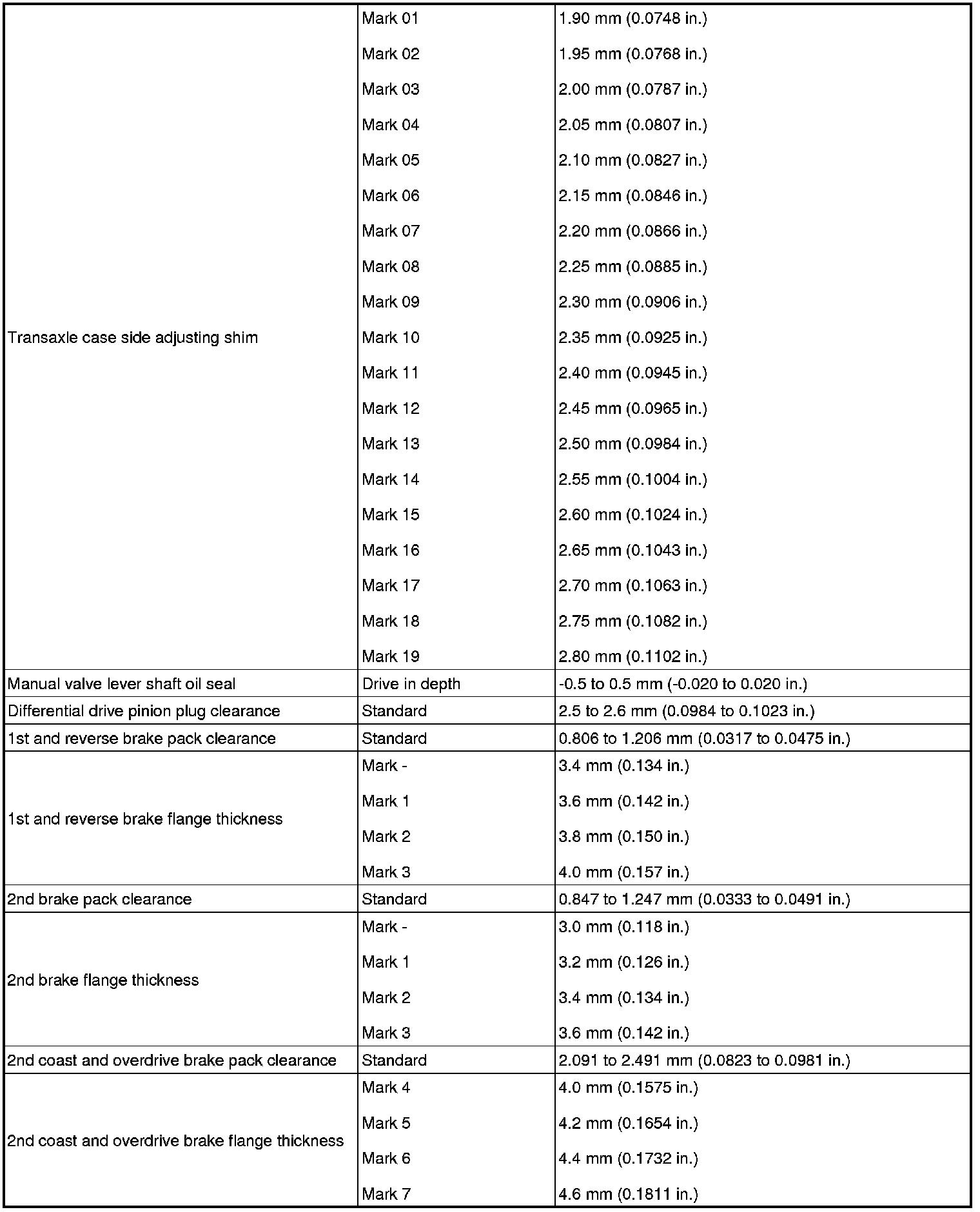

Automatic Transaxle Unit
