Cruise Control Module: Locations








CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION

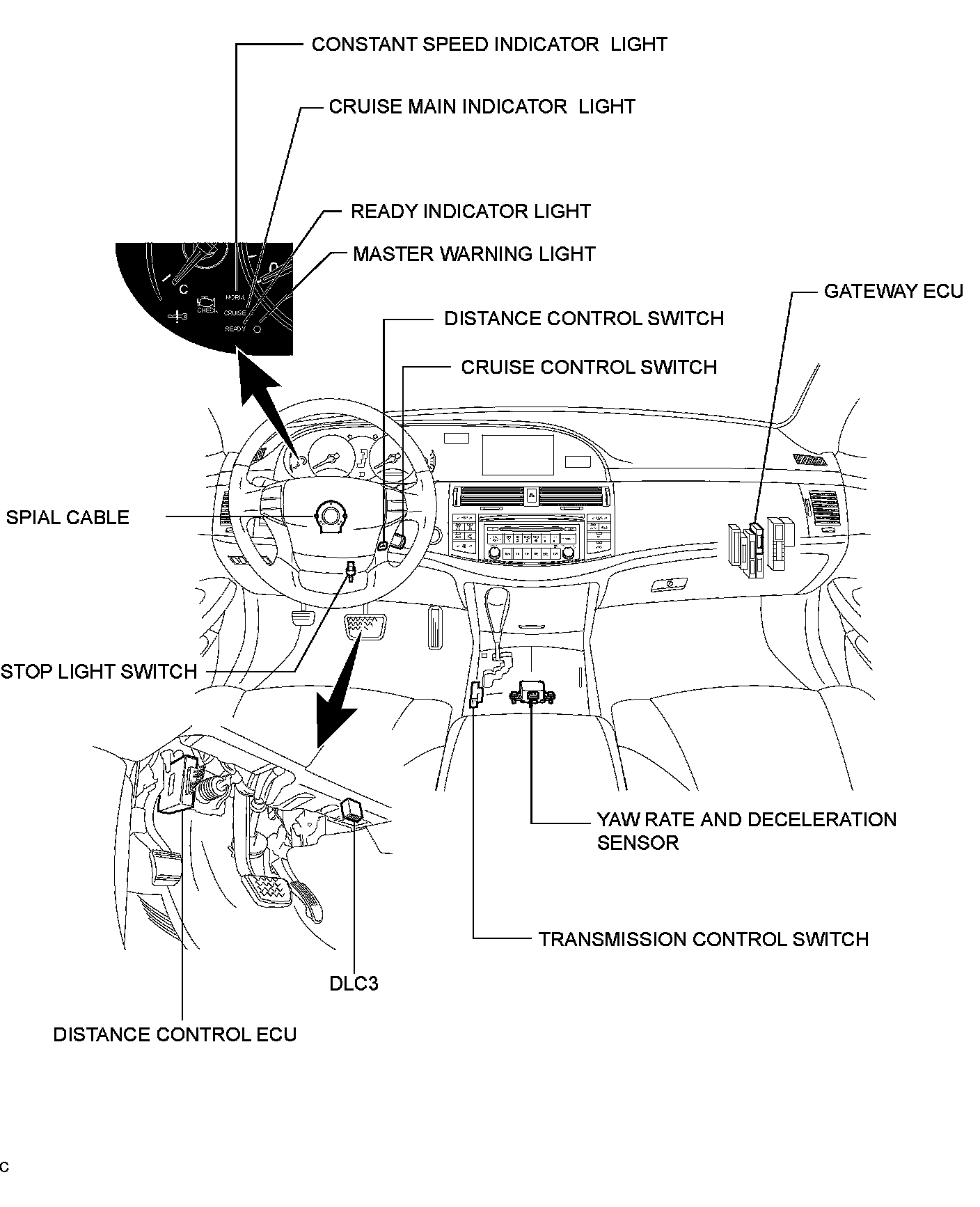

Instrument Panel:
