Body Control Module: Locations








MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION

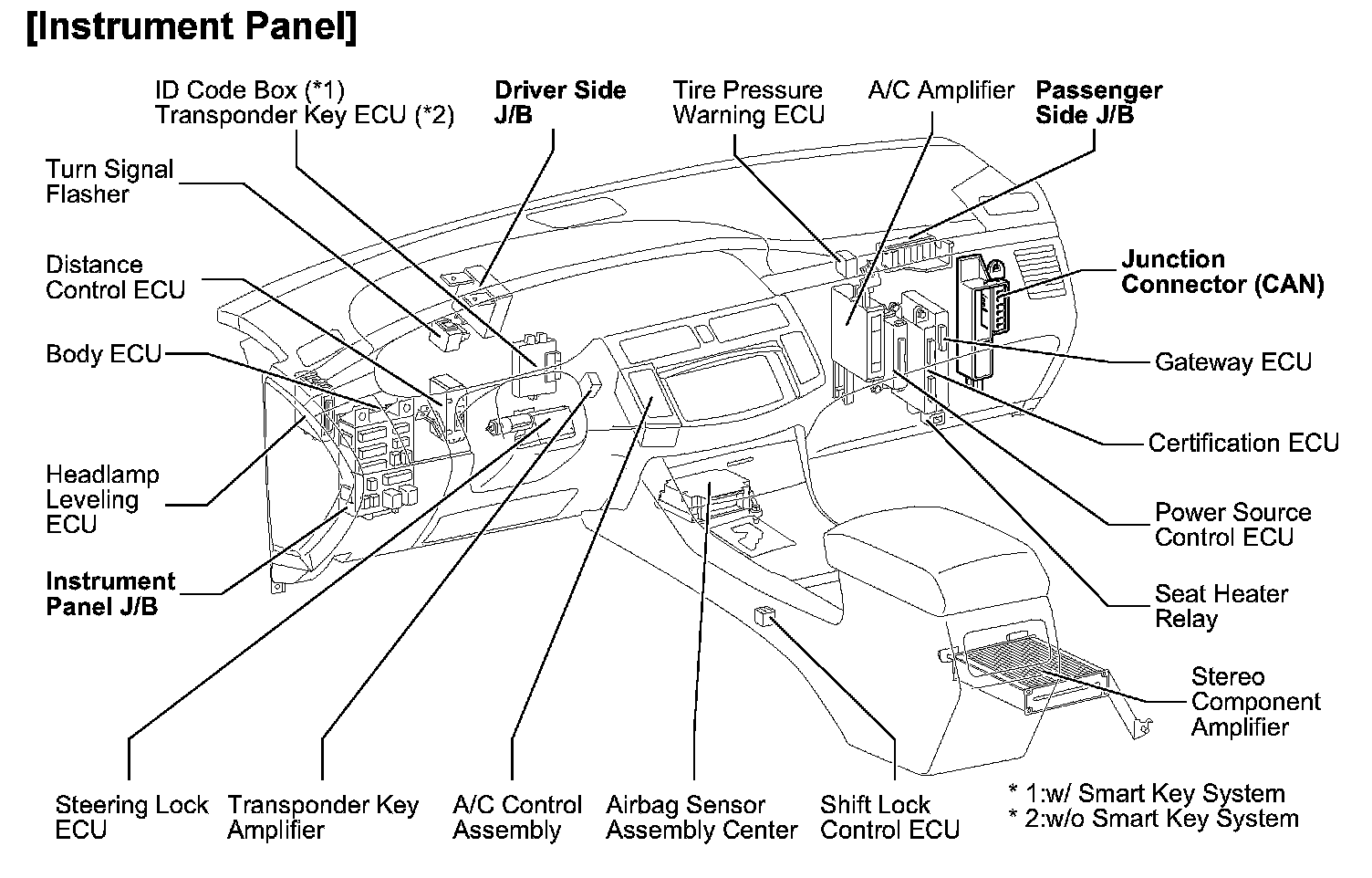

Instrument Panel:

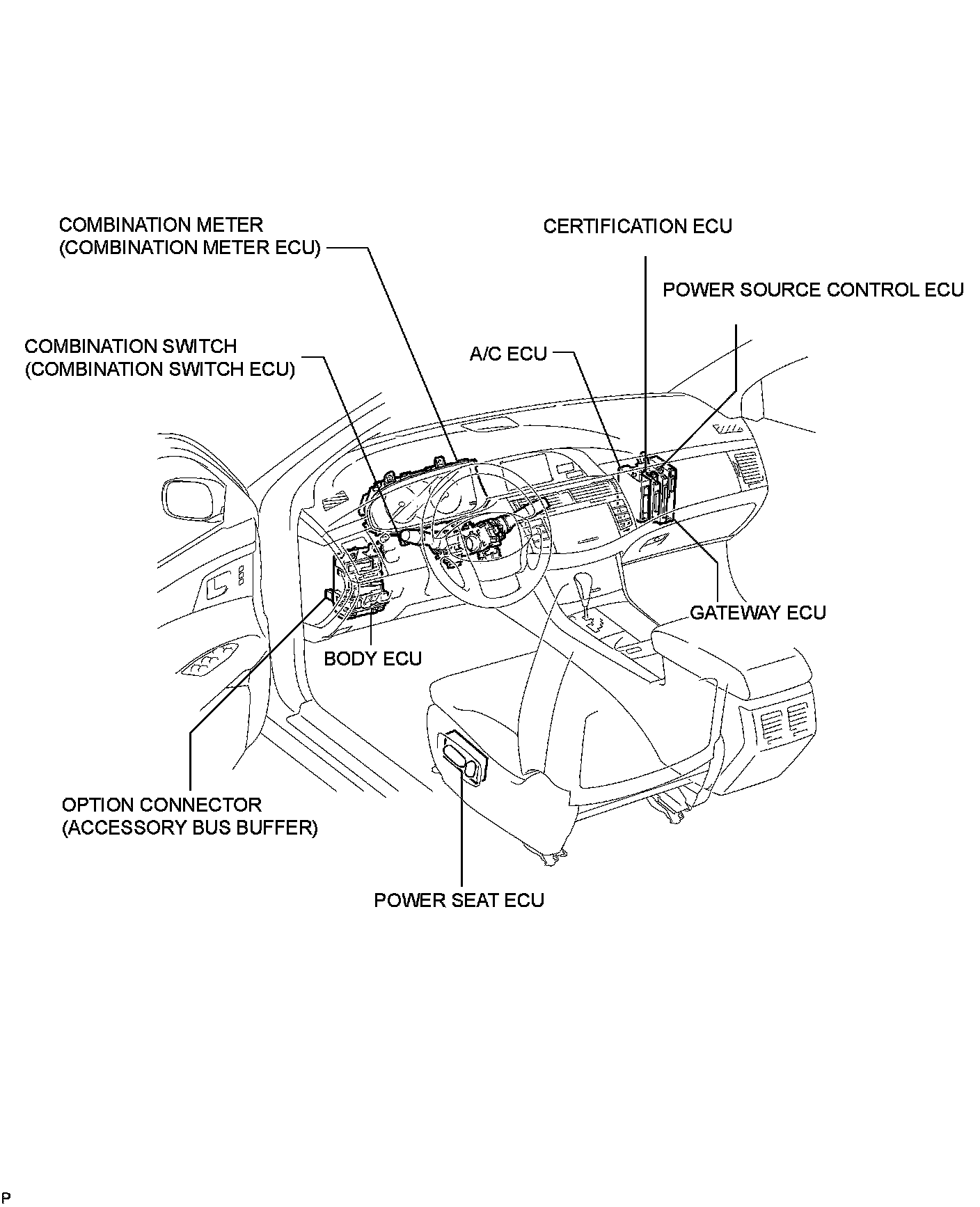

Instrument Panel J/B - Lower Finish Panel:
