Removal

AIR CONDITIONING AMPLIFIER:

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (Removal)

2. REMOVE NO. 3 AIR DUCT REAR

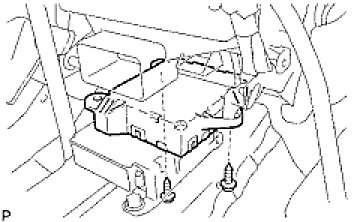

3. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 2 screws and air conditioning amplifier.
