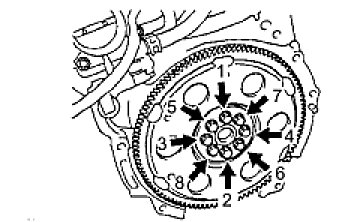

Flex Plate Torque & Sequence








DRIVE PLATE BOLTS (Automatic Transaxle)
Torque 88 Nm (897 kg-cm, 65 ft-lb)
