Surface Variation - Head to Block

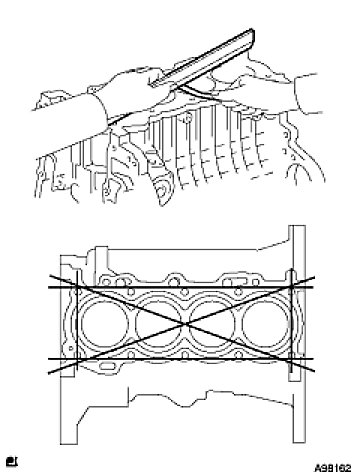

CHECK CYLINDER BLOCK FOR FLATNESS

Maximum warpage 0.05 mm (0.0020 in.)
