Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

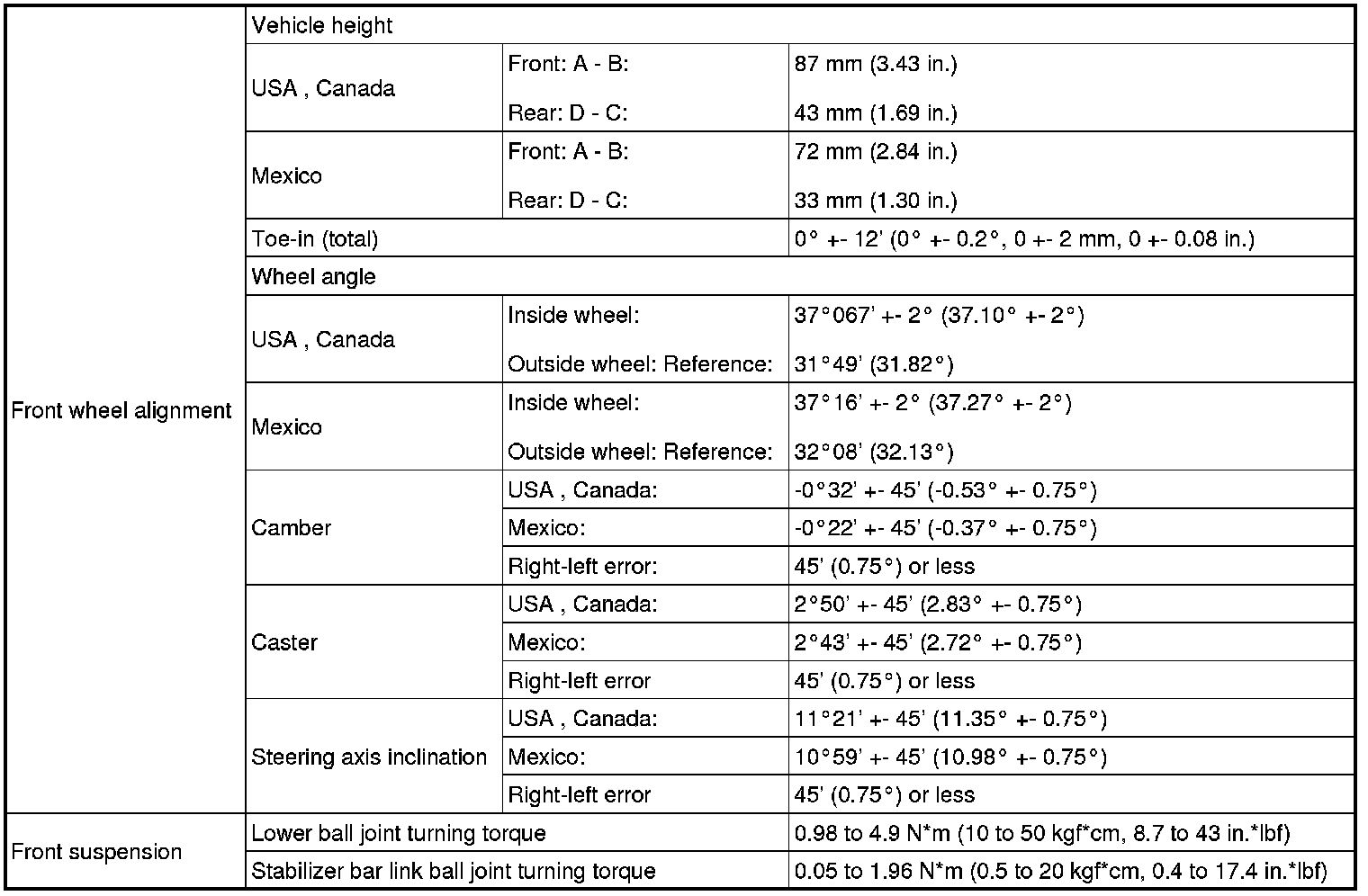

SERVICE DATA





*1: Ground clearance of front wheel center
*2: Ground clearance of lower suspension arm front bolt center
*3: Ground clearance of rear wheel center
*4: Ground clearance of axle beam set bolt center
