Engine Unit

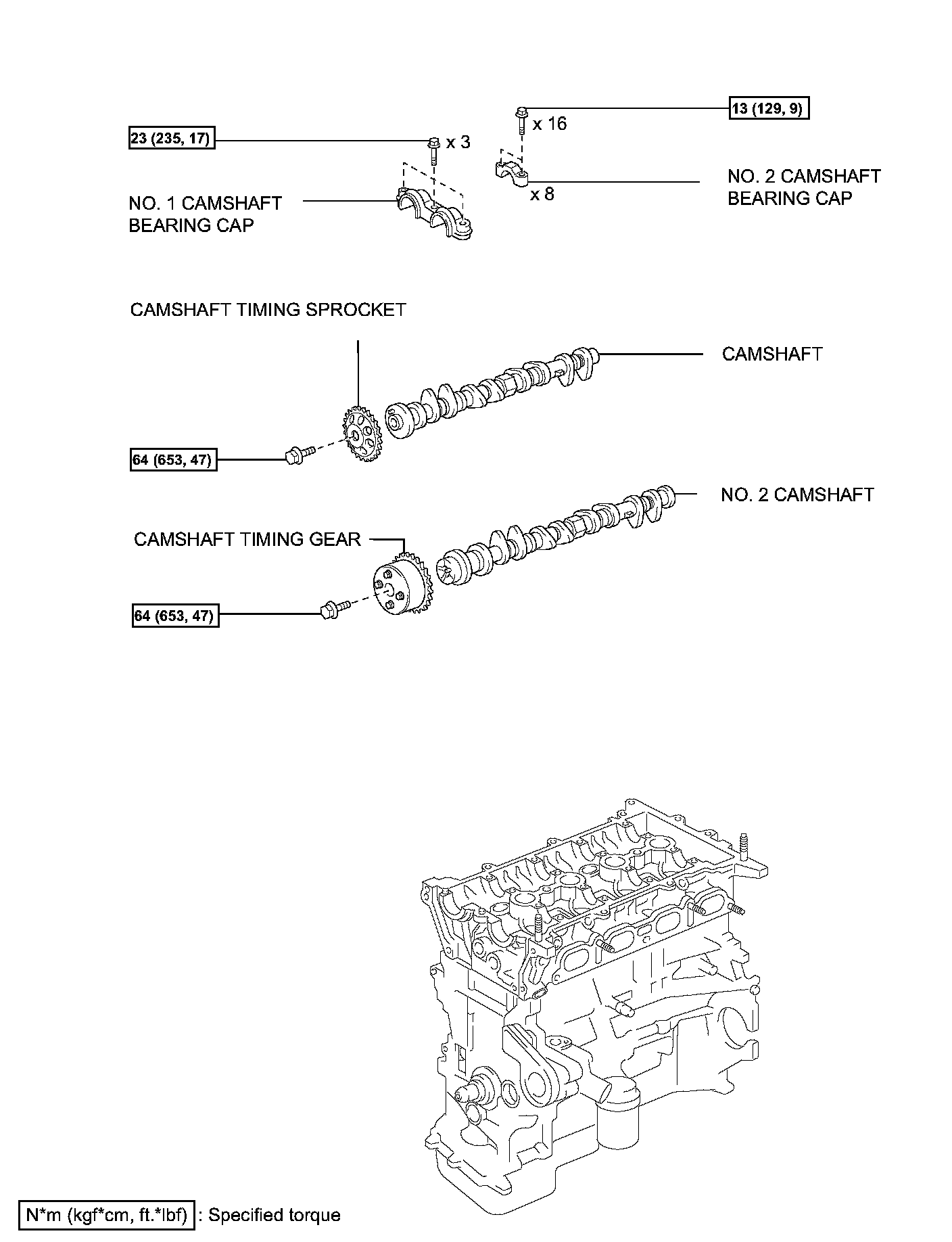

Engine Unit Components (Part 1):

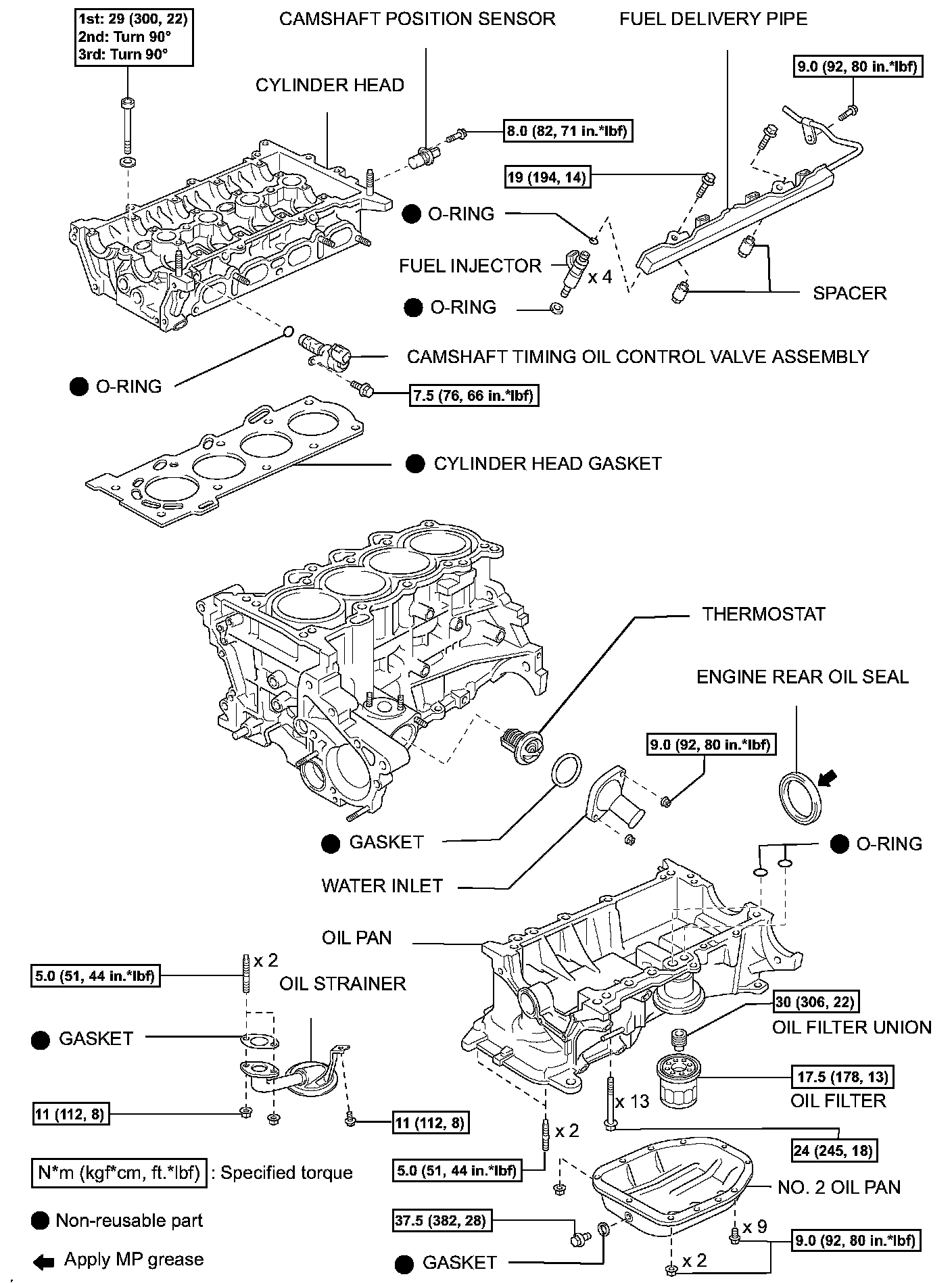

Engine Unit Components (Part 2):

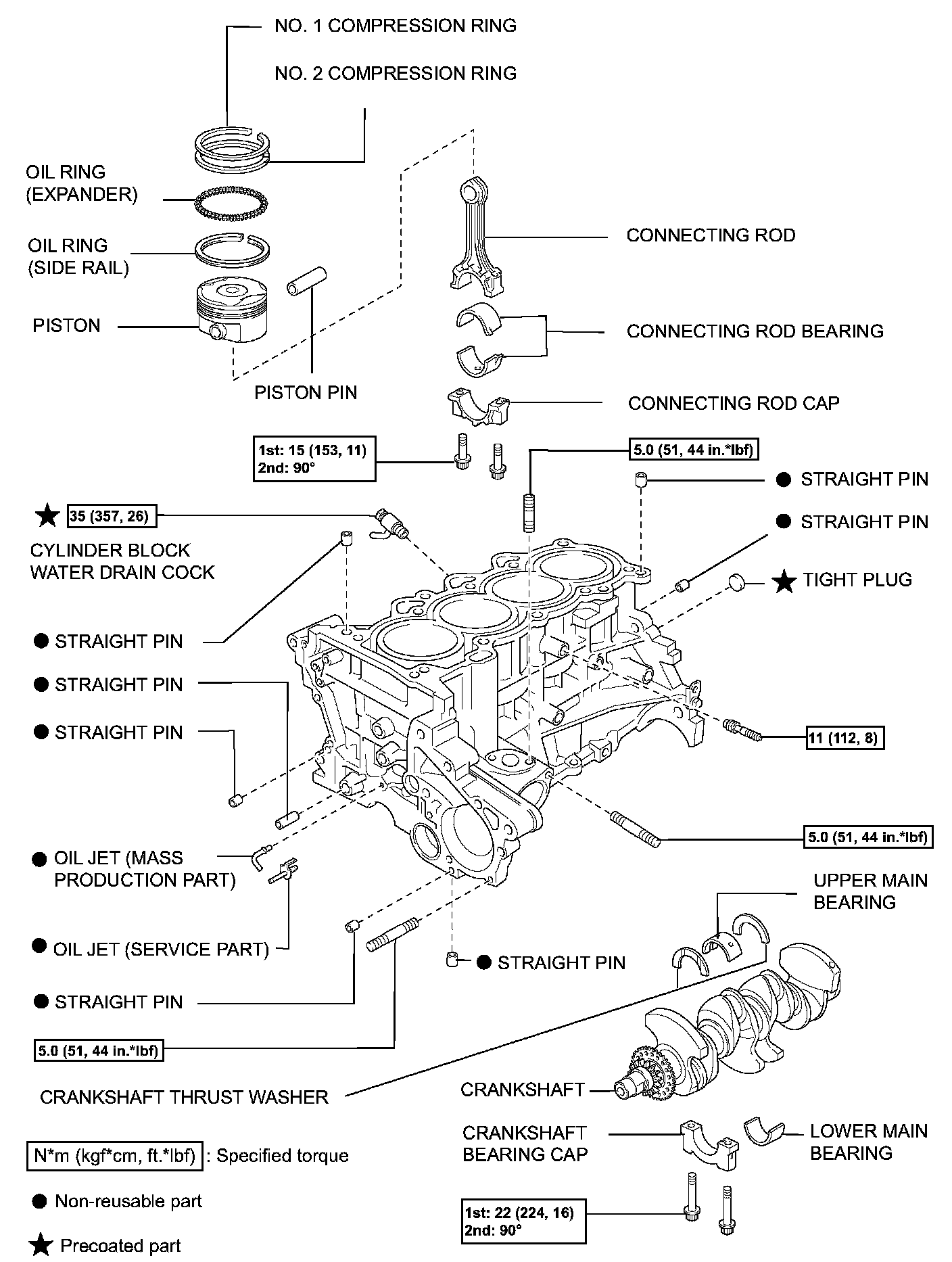

Engine Unit Components (Part 3):

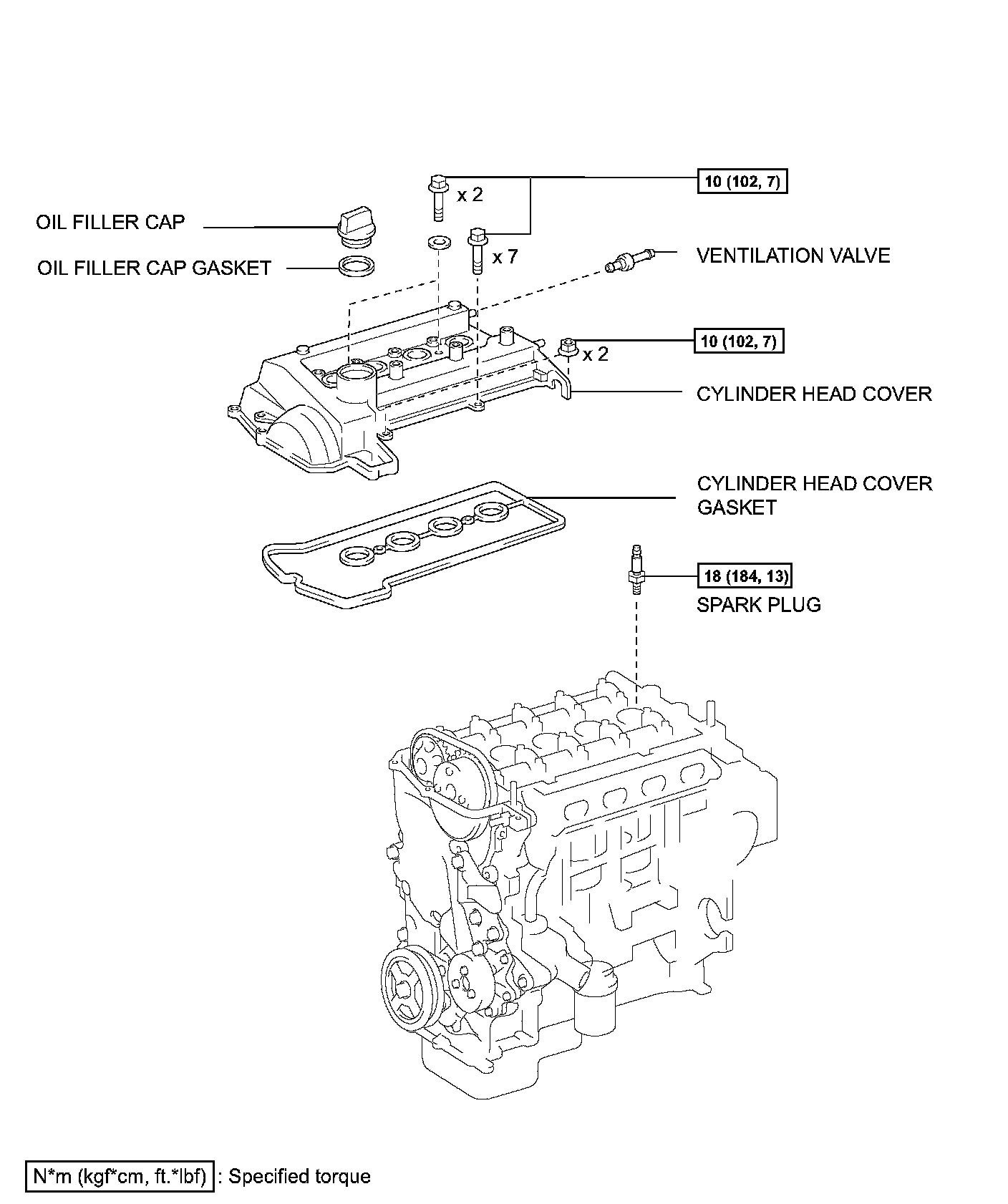

Engine Unit Components (Part 4):

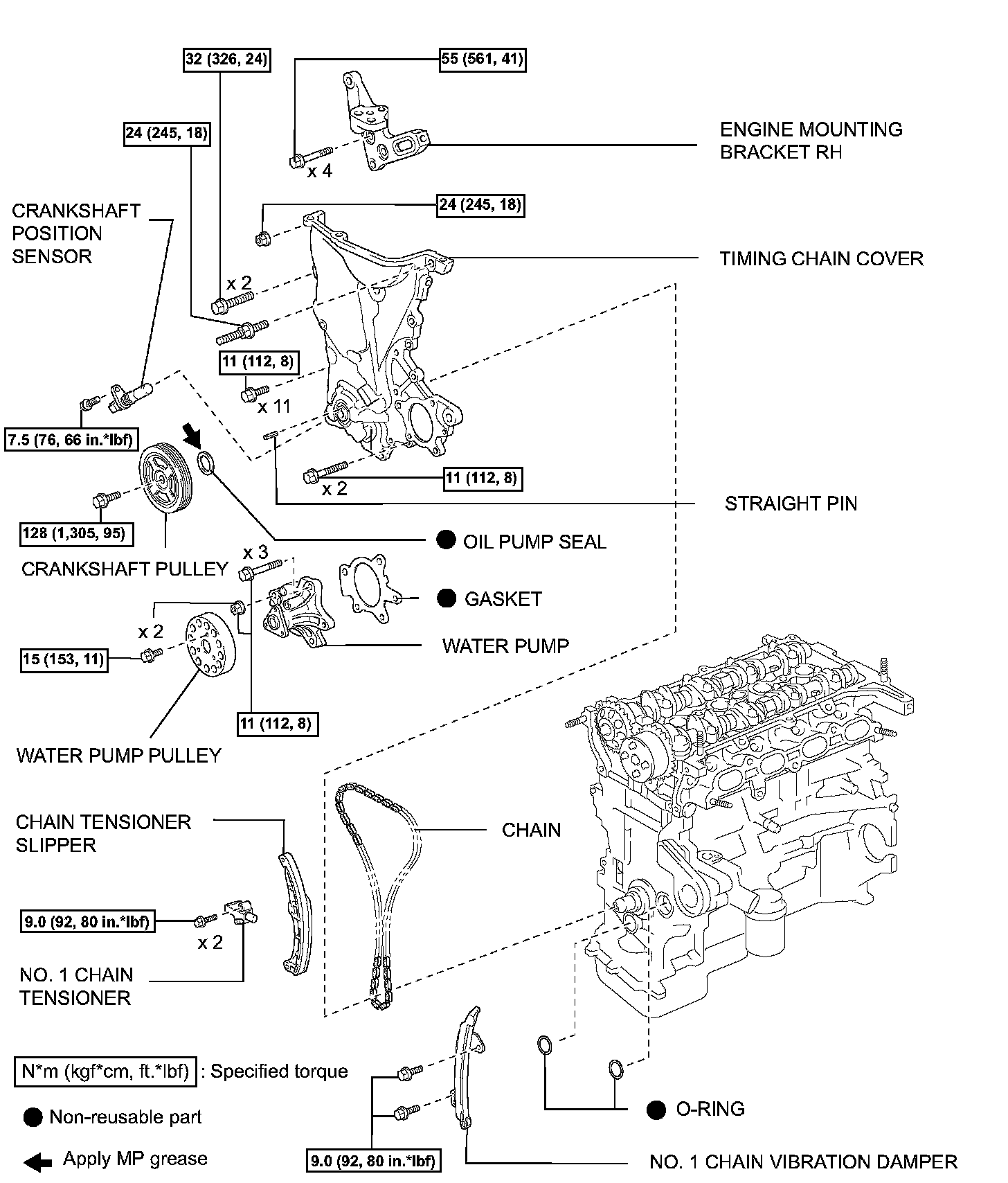

Engine Unit Components (Part 5):
