Home >> Toyota >> 2007 >> Corolla L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

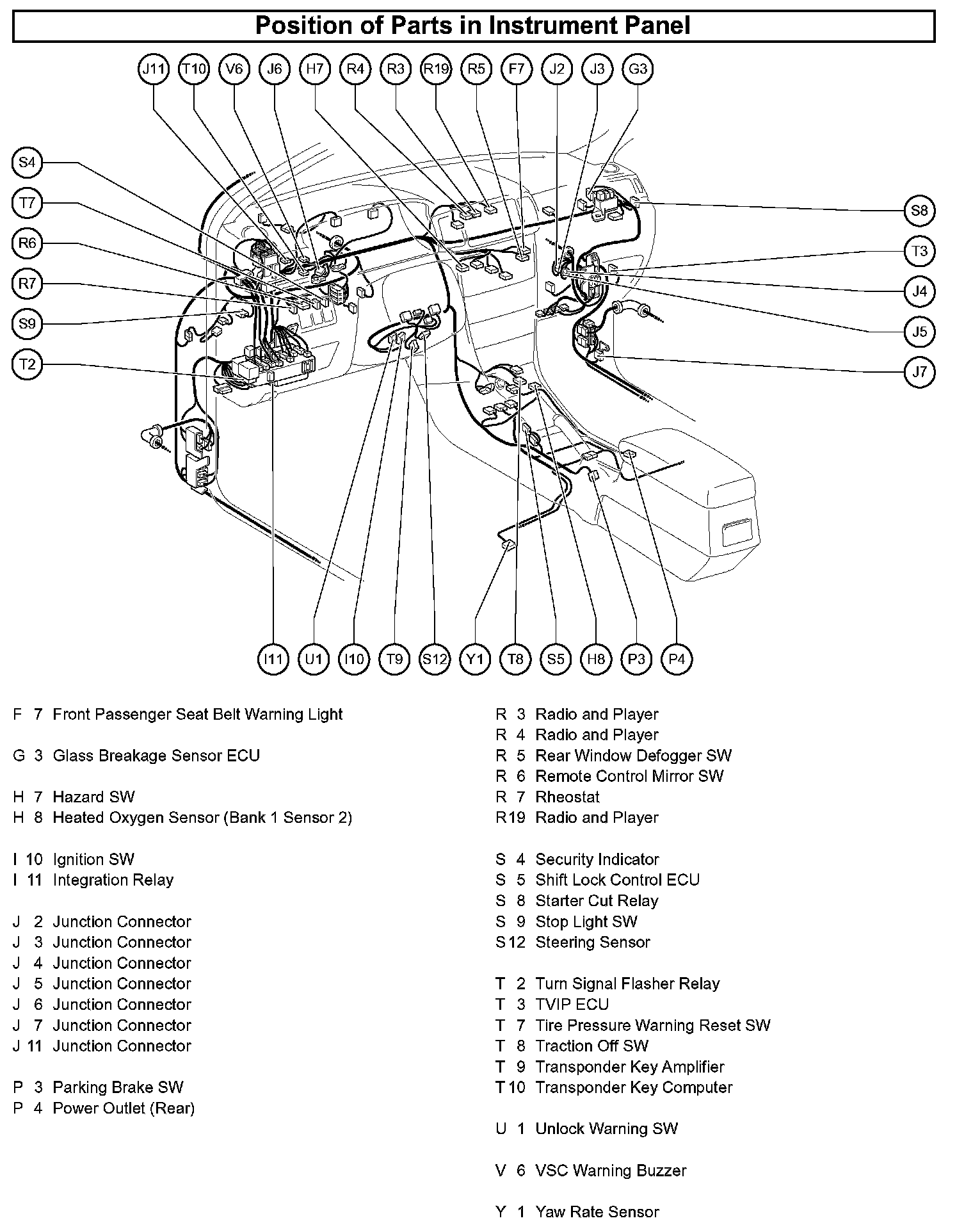

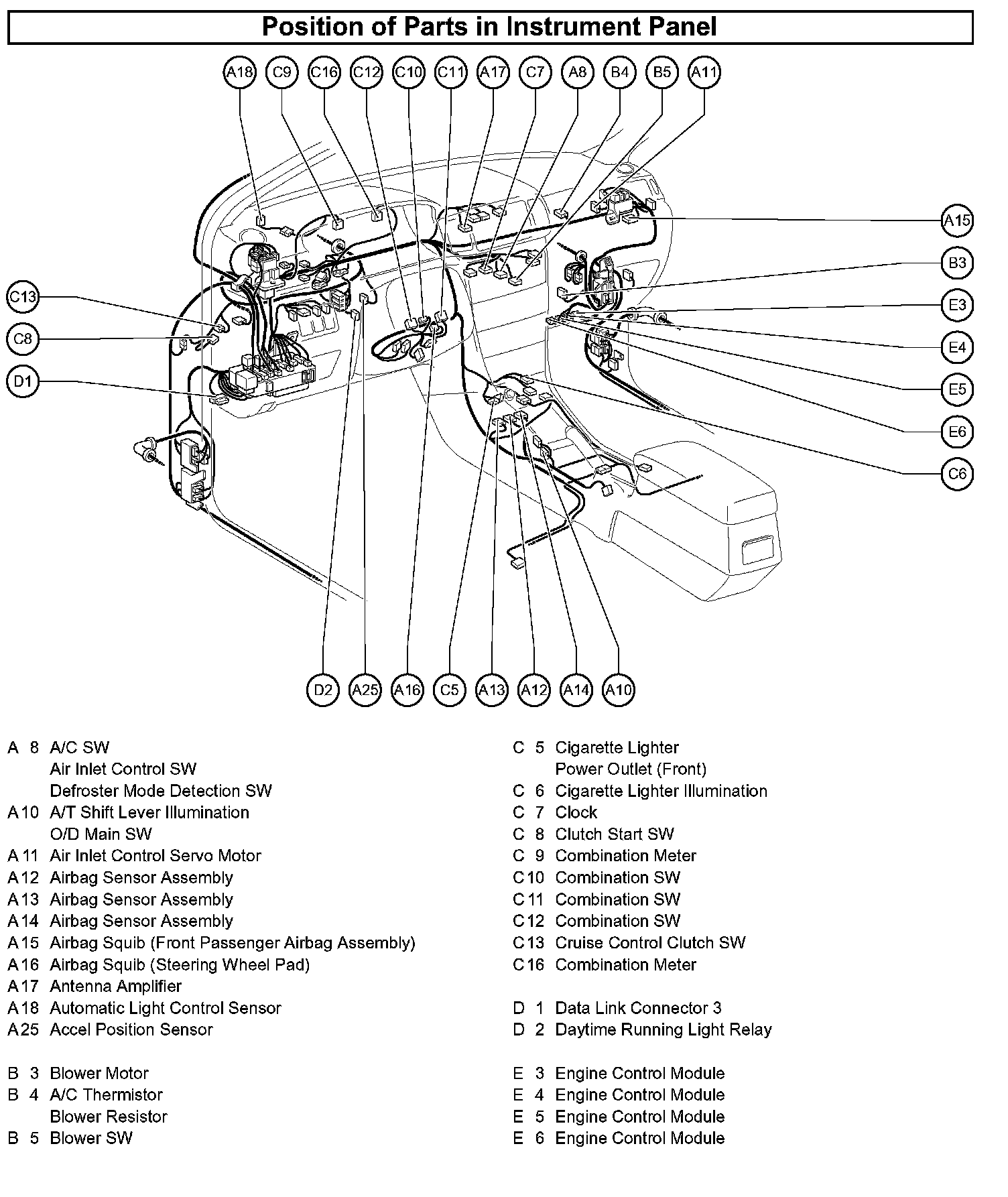

Engine Control Module: Locations

A/C - Po:



Fr - Ya:
