FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Yaris (CANADA) L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Service Data
Service Data

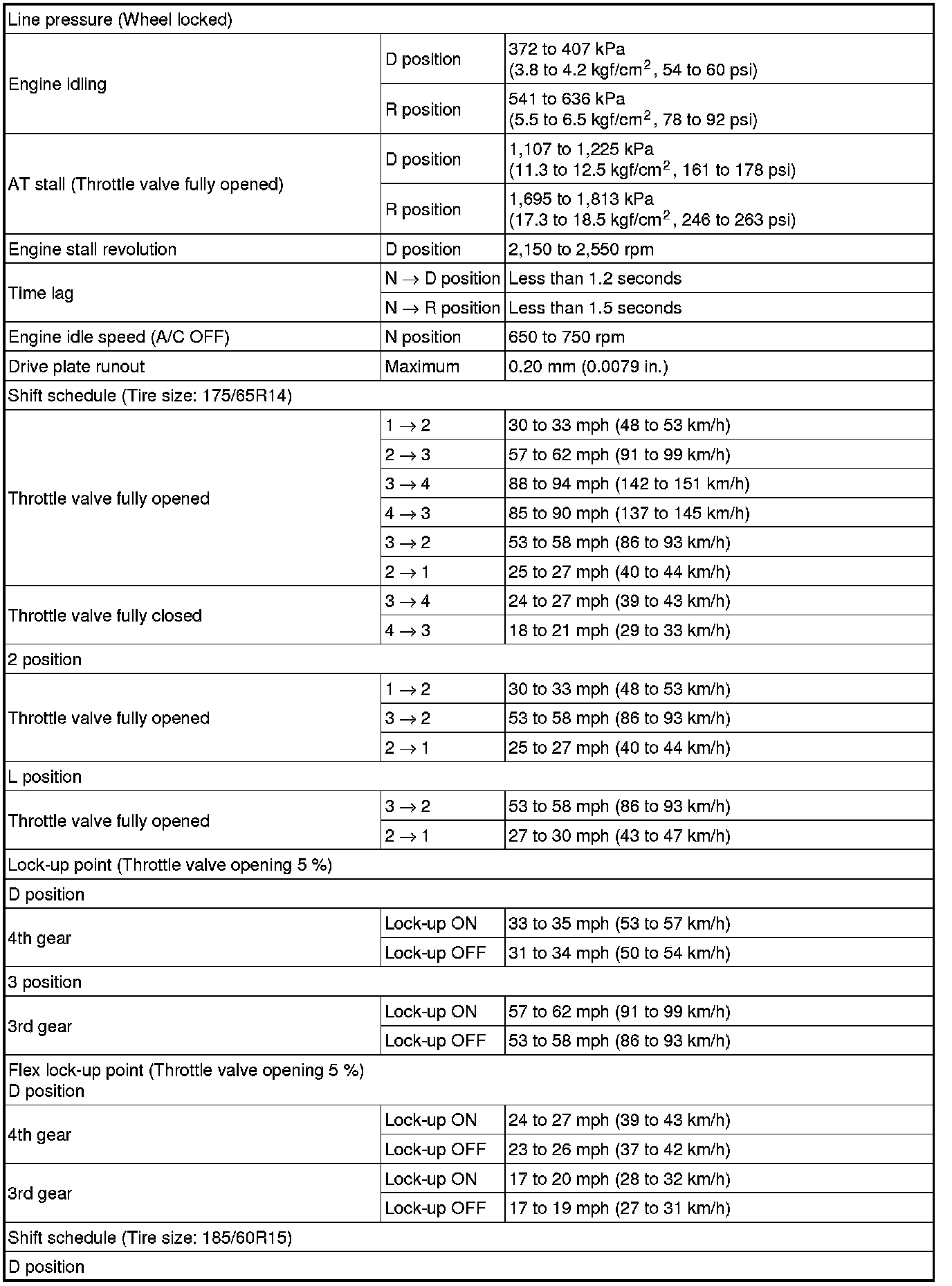

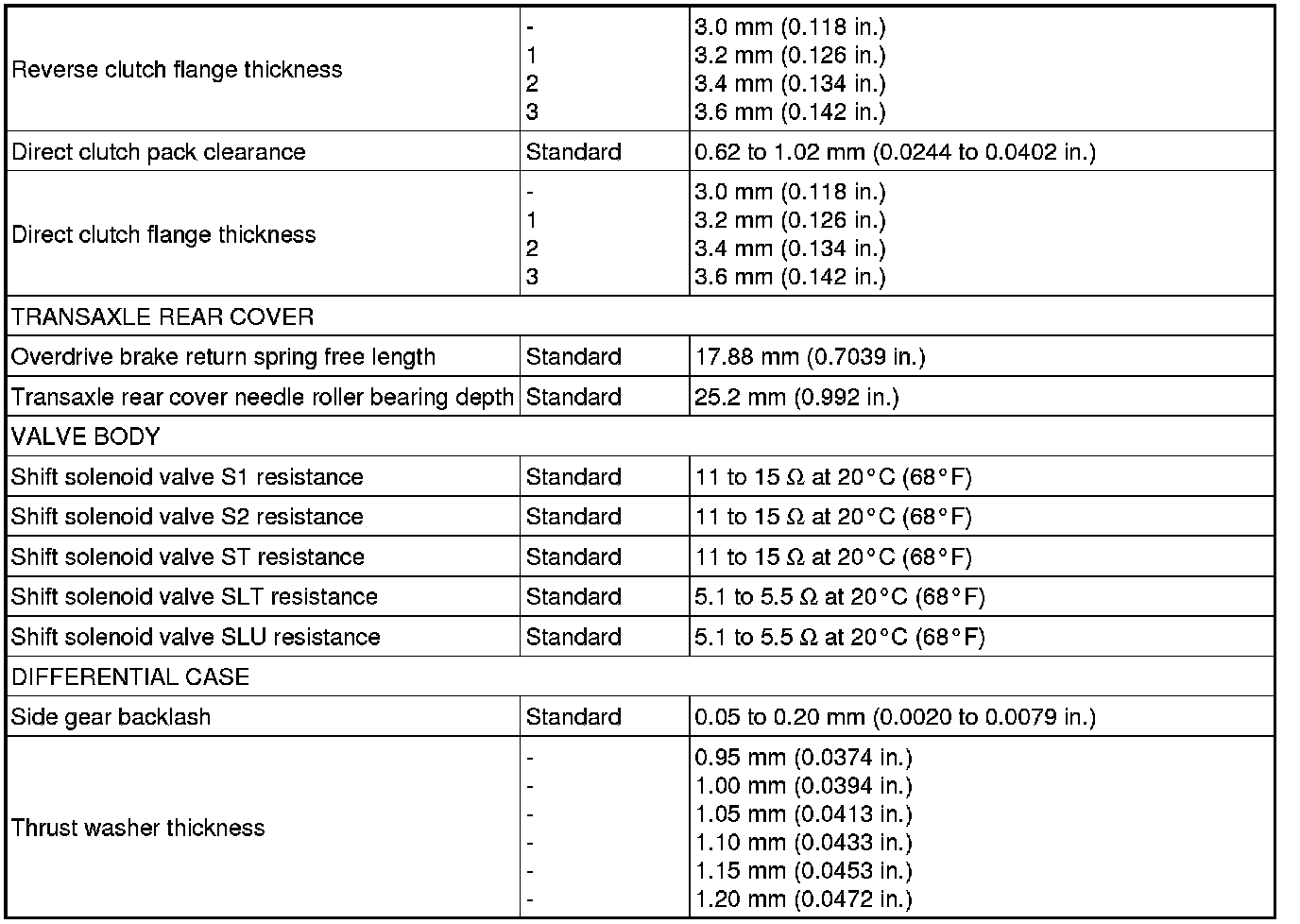

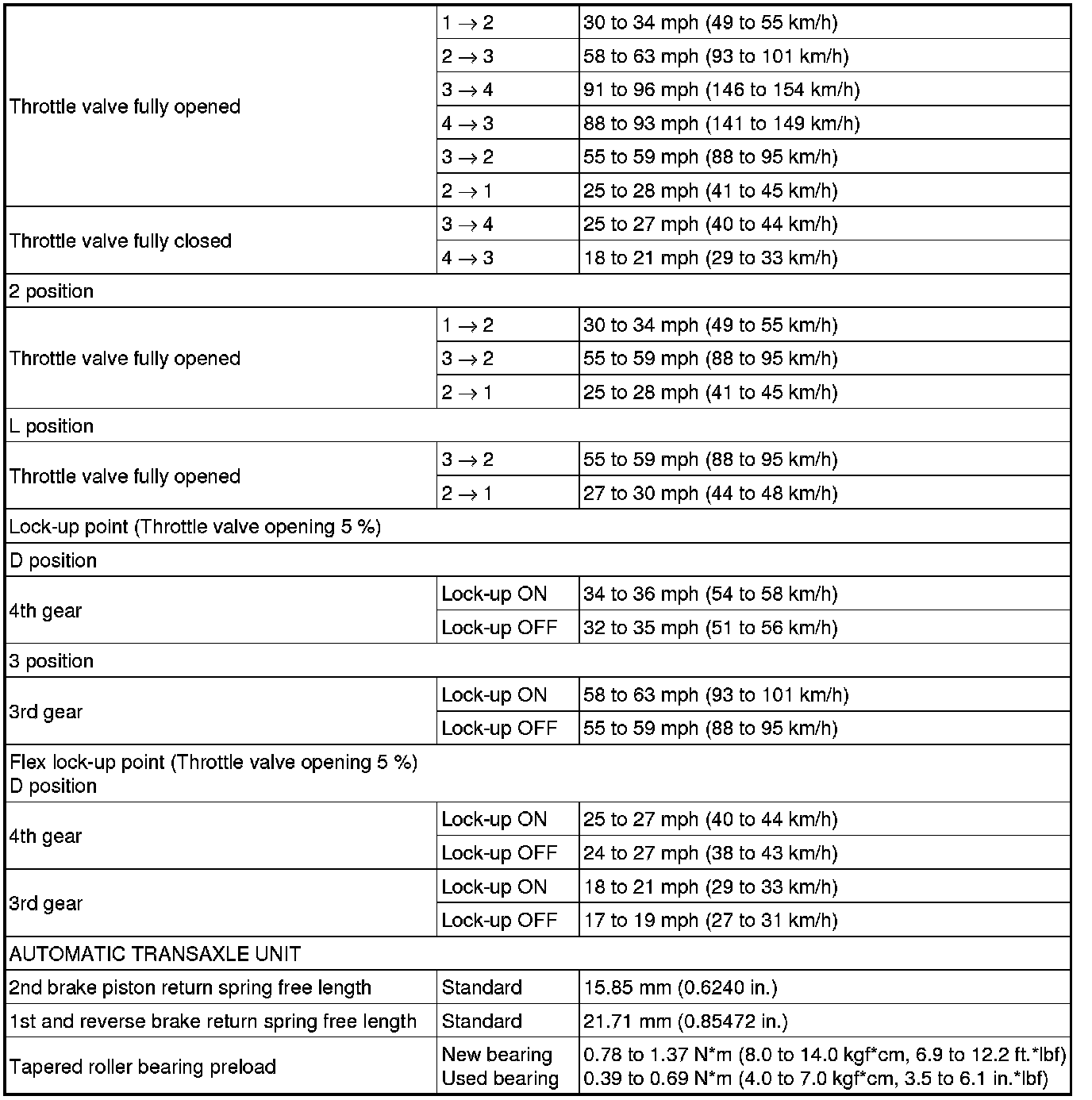

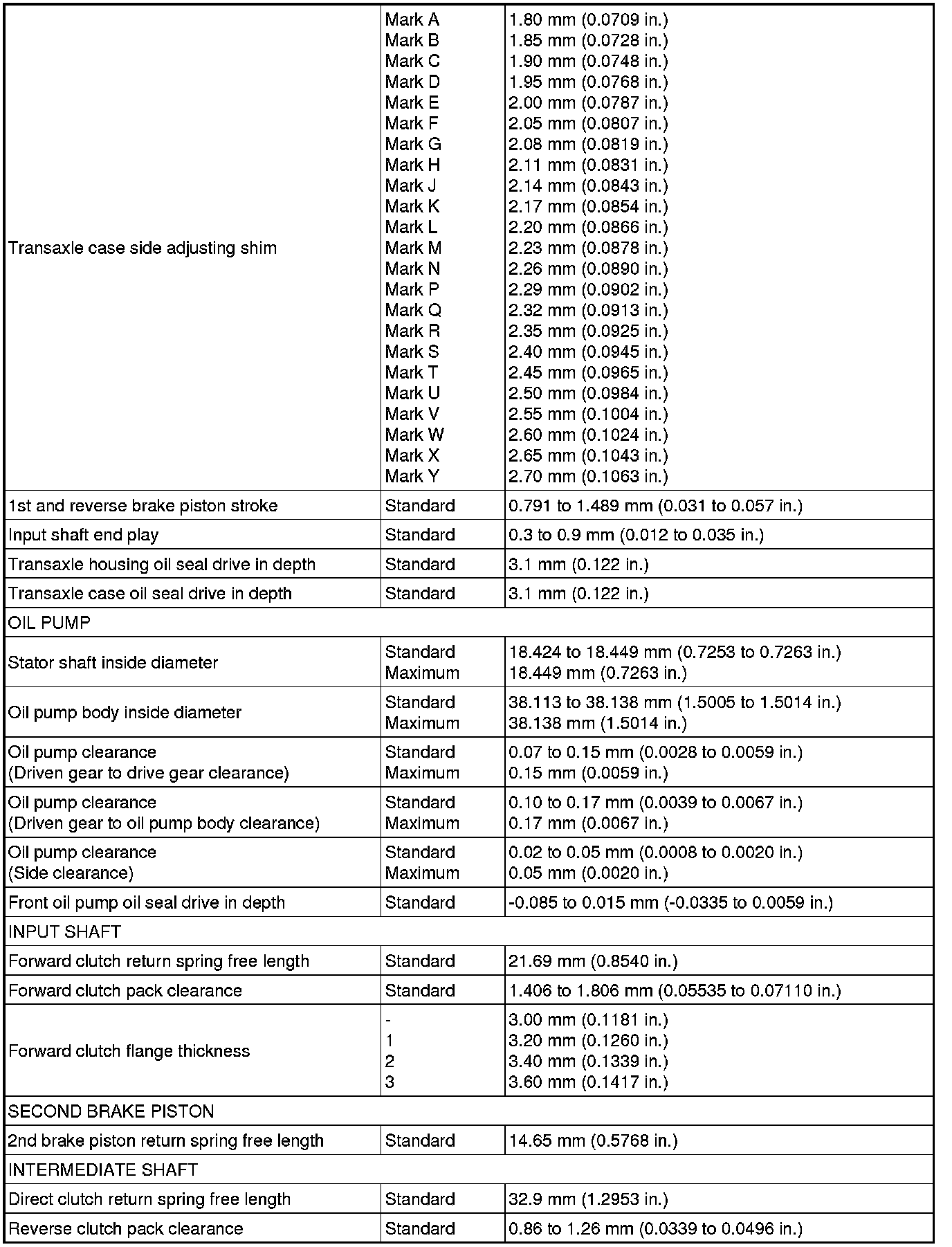

SERVICE SPECIFICATIONS: U340E AUTOMATIC TRANSAXLE: SERVICE DATA
AUTOMATIC TRANSAXLE
