Home >> Toyota >> 2006 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> Torque

Torque

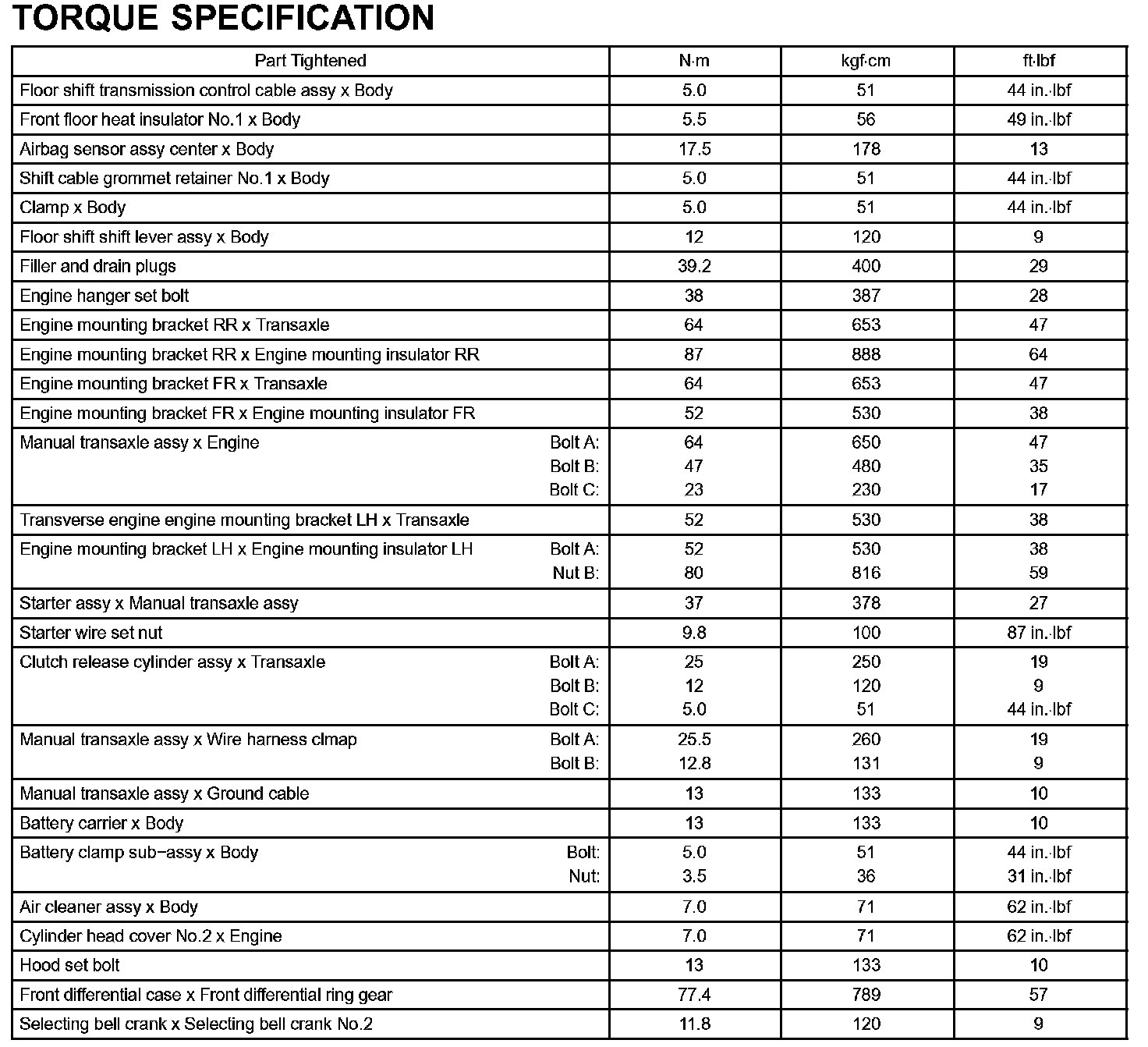

Manual Transmission / Transaxle-Torque Specification:

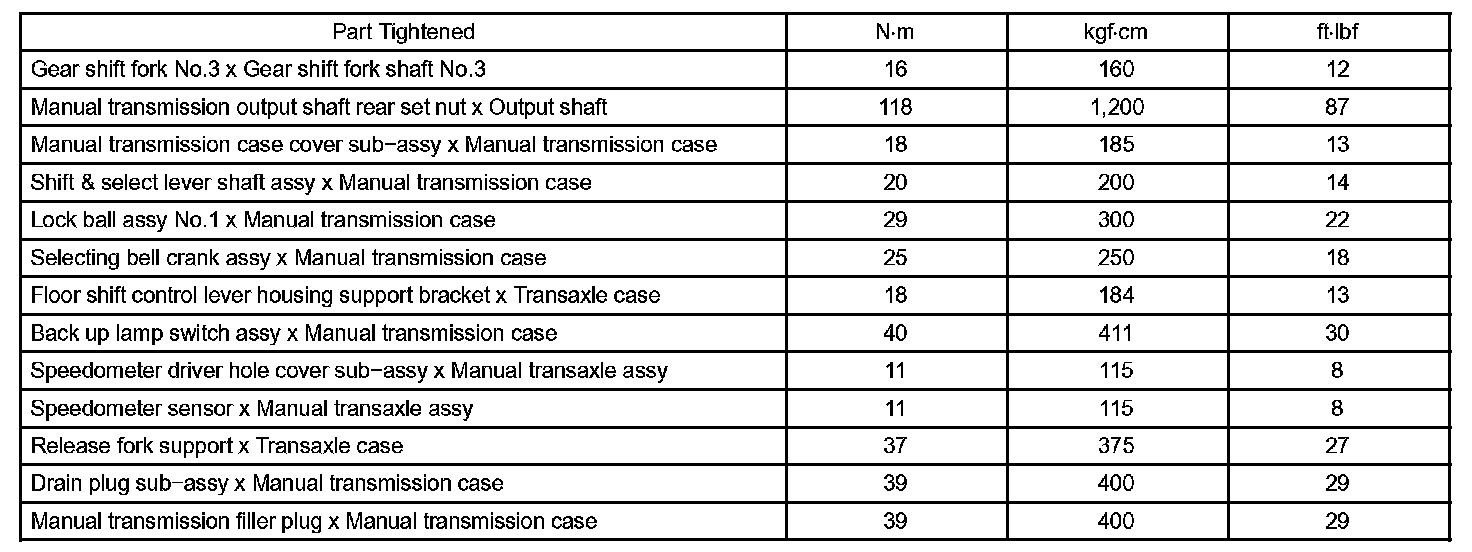

Manual Transmission / Transaxle-Torque Specification (Part 1):

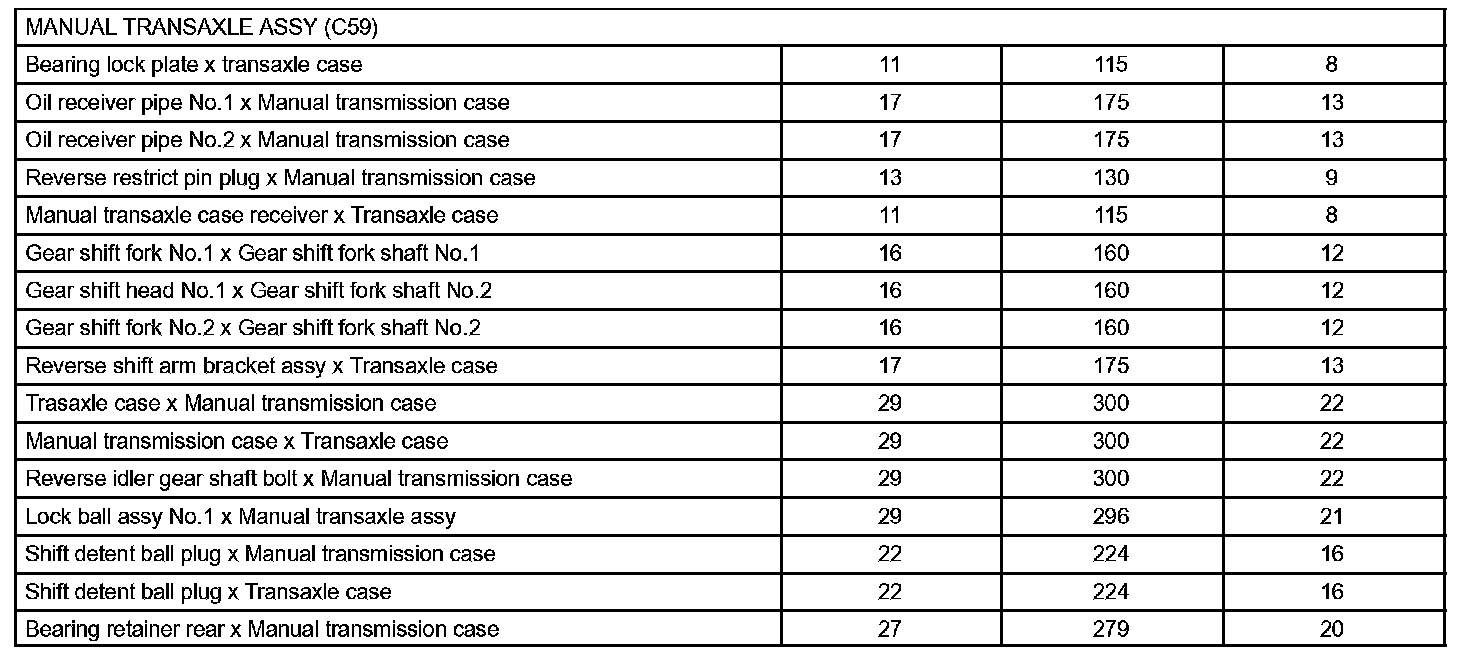

Manual Transmission / Transaxle-Torque Specification (Part 2):
